Raven RP79Si Astragal Meeting Stile Seal 3000mm Silver Anodised A79SIC3000

Raven RP79Si Astragal Meeting Stile Seal 3000mm Silver Anodised A79SIC3000

Raven RP79Si Astragal Meeting Stile Seal
A79SIC3000

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

  • An aluminium astragal seal designed for frameless glass doors
  • RP79Si utilises silicon rubber fins for medium temperature smoke door applications
  • Use in conjunction with Raven brush strip door bottom seals RP2b, RP74 and threshold plates

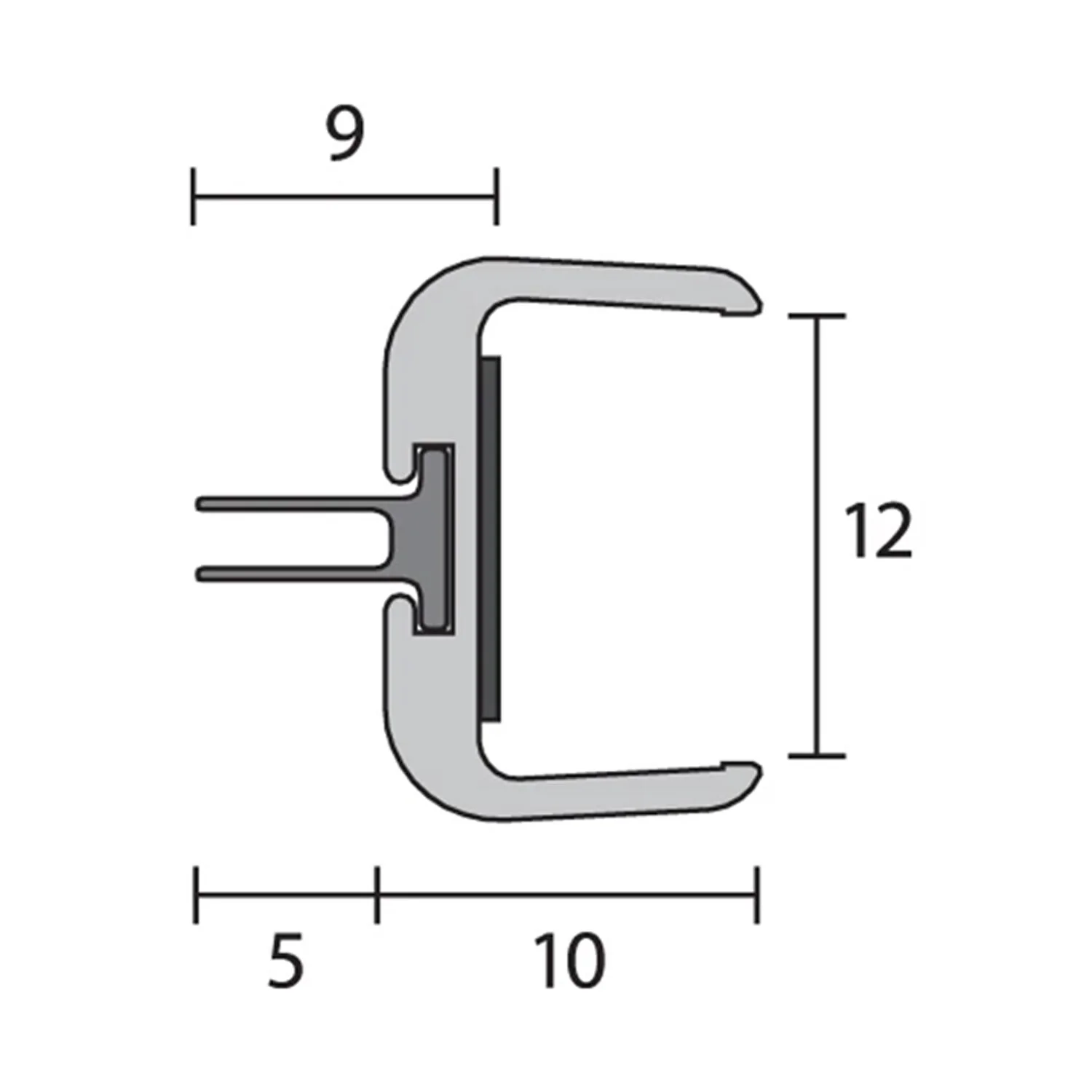

Specifications:

  • Min and Max Gap: 8mm - 9mm
  • Fixing: Self-adhesive
  • Depth: 10mm
  • Projection: 4mm
  • Width: 12mm
  • Length: 3000mm
  • Finish: Silver Anodised

Approvals:

  • Gasket flammability index 1 when tested to AS1530.2

  • NCC S12C4
  • ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
$14.47

Original: $48.22

-70%
Raven RP79Si Astragal Meeting Stile Seal 3000mm Silver Anodised A79SIC3000—

$48.22

$14.47
Product image 1
Product image 2
Product image 3

Description

Raven RP79Si Astragal Meeting Stile Seal
A79SIC3000

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

  • An aluminium astragal seal designed for frameless glass doors
  • RP79Si utilises silicon rubber fins for medium temperature smoke door applications
  • Use in conjunction with Raven brush strip door bottom seals RP2b, RP74 and threshold plates

Specifications:

  • Min and Max Gap: 8mm - 9mm
  • Fixing: Self-adhesive
  • Depth: 10mm
  • Projection: 4mm
  • Width: 12mm
  • Length: 3000mm
  • Finish: Silver Anodised

Approvals:

  • Gasket flammability index 1 when tested to AS1530.2

  • NCC S12C4
  • ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
