Raven RP79 Astragal Meeting Stile Seals 3000mm Silver Anodised A79C3000

Raven RP79 Astragal Meeting Stile Seals
A79C3000

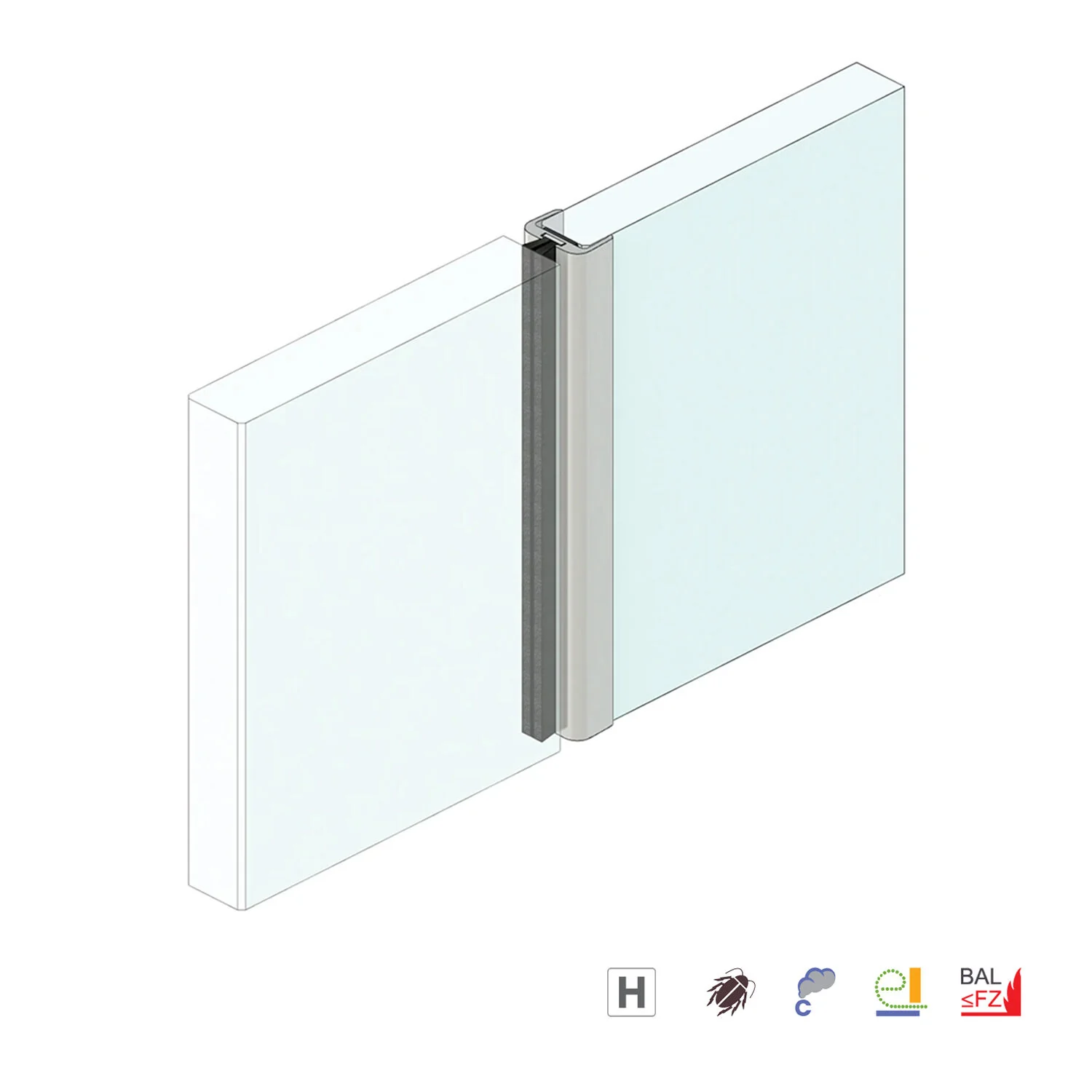

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

• An aluminium meeting stile seal (astragal) designed for frameless glass doors
• The woven pile sealing strip is combined with a weather fin to form an effective weather and energy seal
• Use in conjunction with Raven brush strip door bottom seals RP2b, RP74 and threshold plates

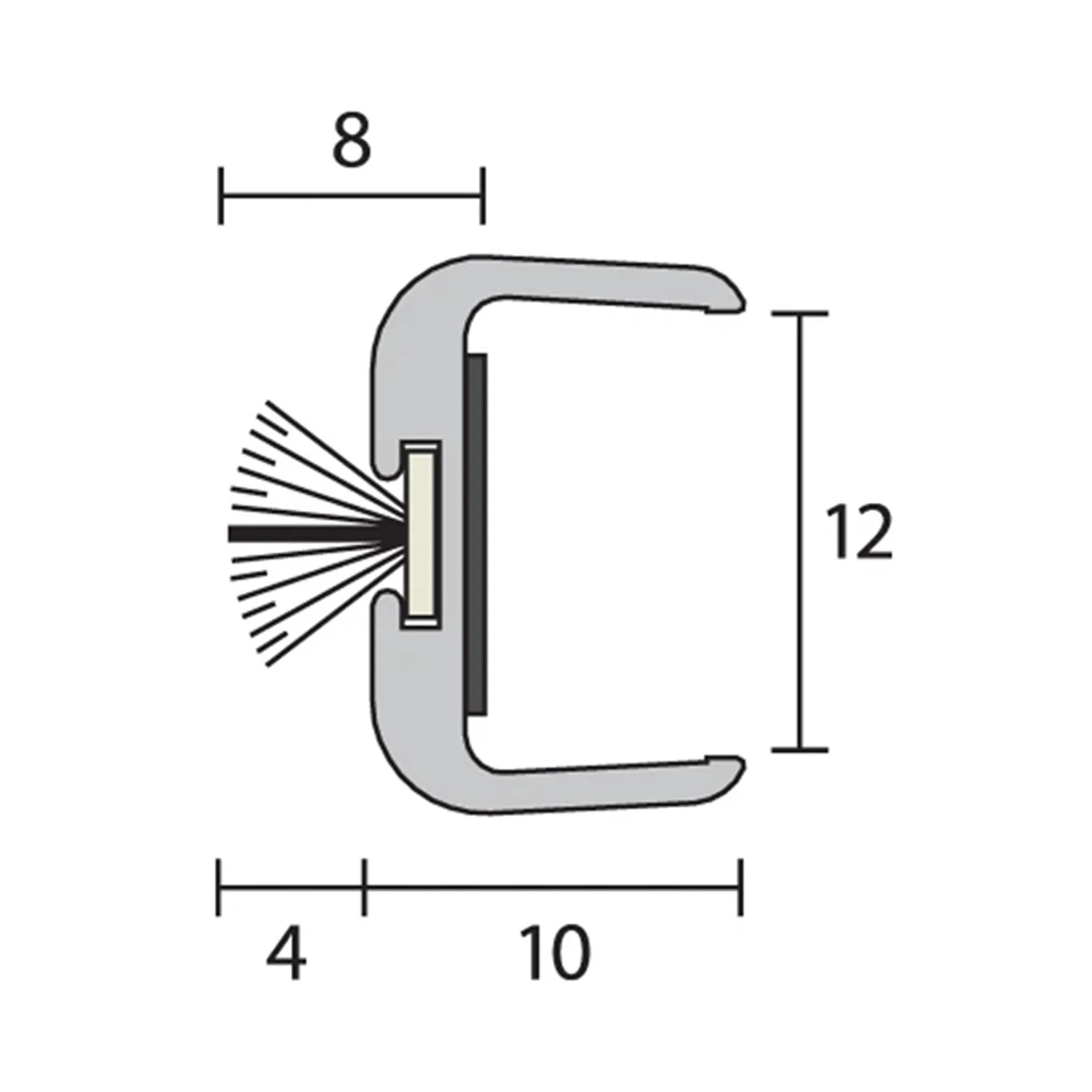

Specifications:

• Min and Max Gap: 8mm - 9mm
• Fixing: Self-adhesive

• Depth: 10mm
• Projection: 4mm
• Width: 12mm
• Length: 3000mm
• Finish: Silver Anodised

Approvals:

• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
