Raven RP134 Meeting Stile Seal Long Single Door Set Black A134LS

Raven RP134 Meeting Stile Seal Long Single Door Set Black A134LS

Raven RP134 Meeting Stile Seal
A134LS

Meeting Stile are seals for frameless glass sliding doors.

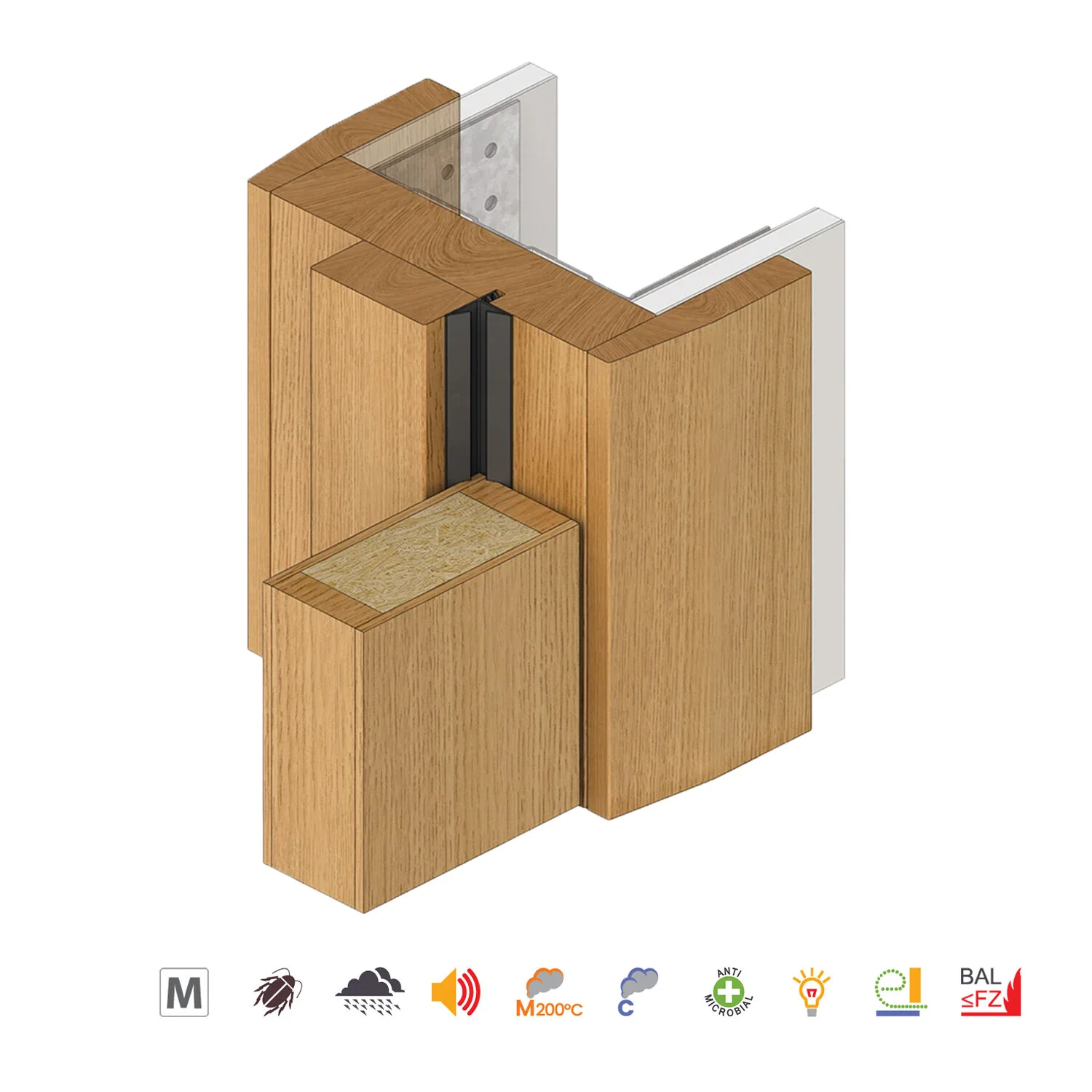

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

  • Co-extruded PVC acoustic and smoke seal
  • Discreetly located in the protected corners of rebated timber doors and window frames
  • Suitable for new and retrofit applications

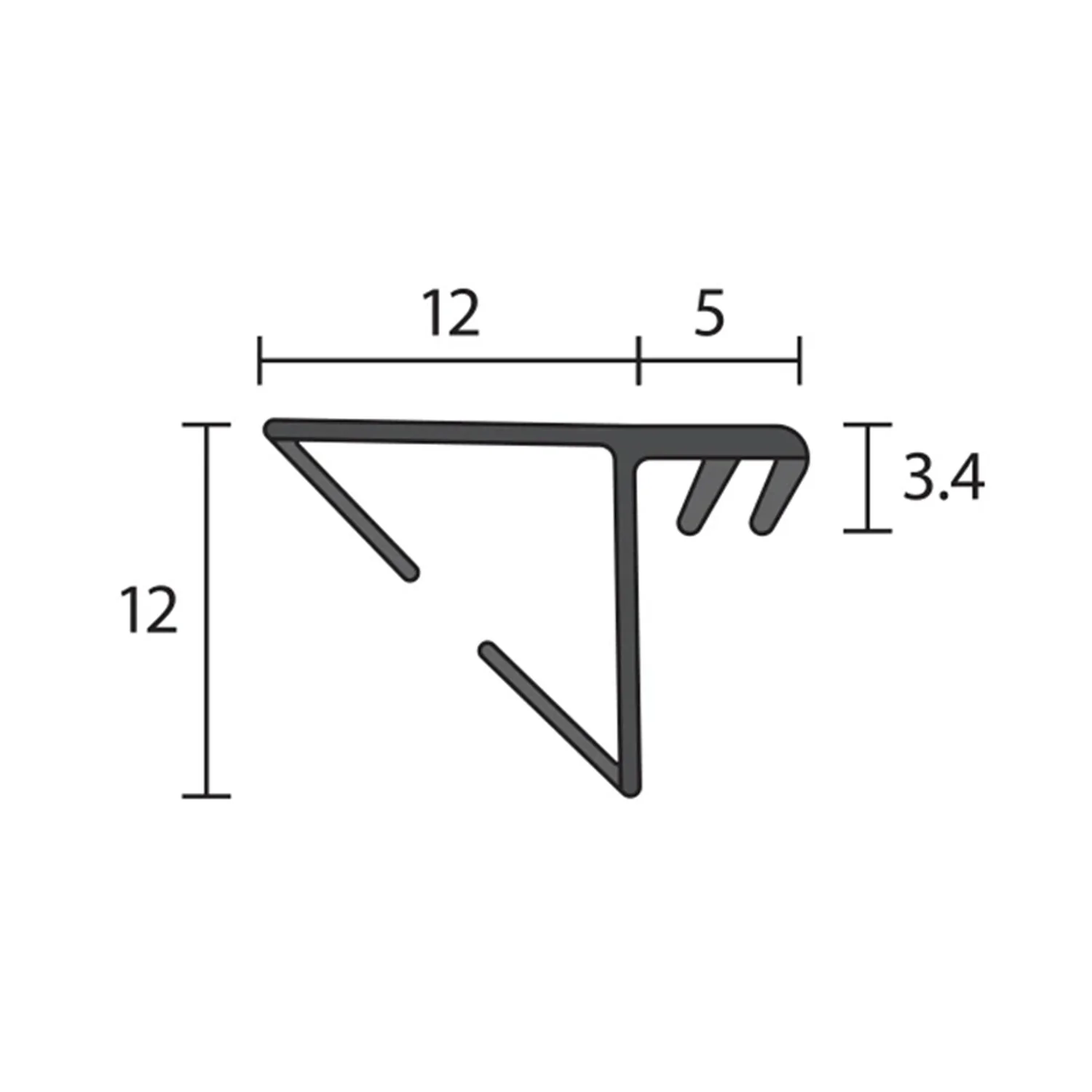

Specifications:

  • Min and Max Gap: 3mm - 5.5mm
  • Fixing: Push-in Friction Fit
  • Width: 12mm
  • Projection: 12mm
  • Kerf Groove Depth: 5mm
  • Kerf Groove Width: 3.4mm
  • Length: Long Single Door Set (1 x 1000mm and 2 x 2750mm)
  • Finish: Black

Approvals:

  • Certifire: CF 5710
  • ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
$18.91

Original: $63.05

-70%
Raven RP134 Meeting Stile Seal Long Single Door Set Black A134LS—

$63.05

$18.91
Product image 1
Product image 2
Product image 3

Description

Raven RP134 Meeting Stile Seal
A134LS

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

  • Co-extruded PVC acoustic and smoke seal
  • Discreetly located in the protected corners of rebated timber doors and window frames
  • Suitable for new and retrofit applications

Specifications:

  • Min and Max Gap: 3mm - 5.5mm
  • Fixing: Push-in Friction Fit
  • Width: 12mm
  • Projection: 12mm
  • Kerf Groove Depth: 5mm
  • Kerf Groove Width: 3.4mm
  • Length: Long Single Door Set (1 x 1000mm and 2 x 2750mm)
  • Finish: Black

Approvals:

  • Certifire: CF 5710
  • ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
