Raven RP122 Astragal Twin Section Meeting Stile Seal 3000mm A122C3000

Raven RP122 Astragal Twin Section Meeting Stile Seal
A122C3000

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

• An effective fire, smoke and acoustic seal designed for double action fire doors

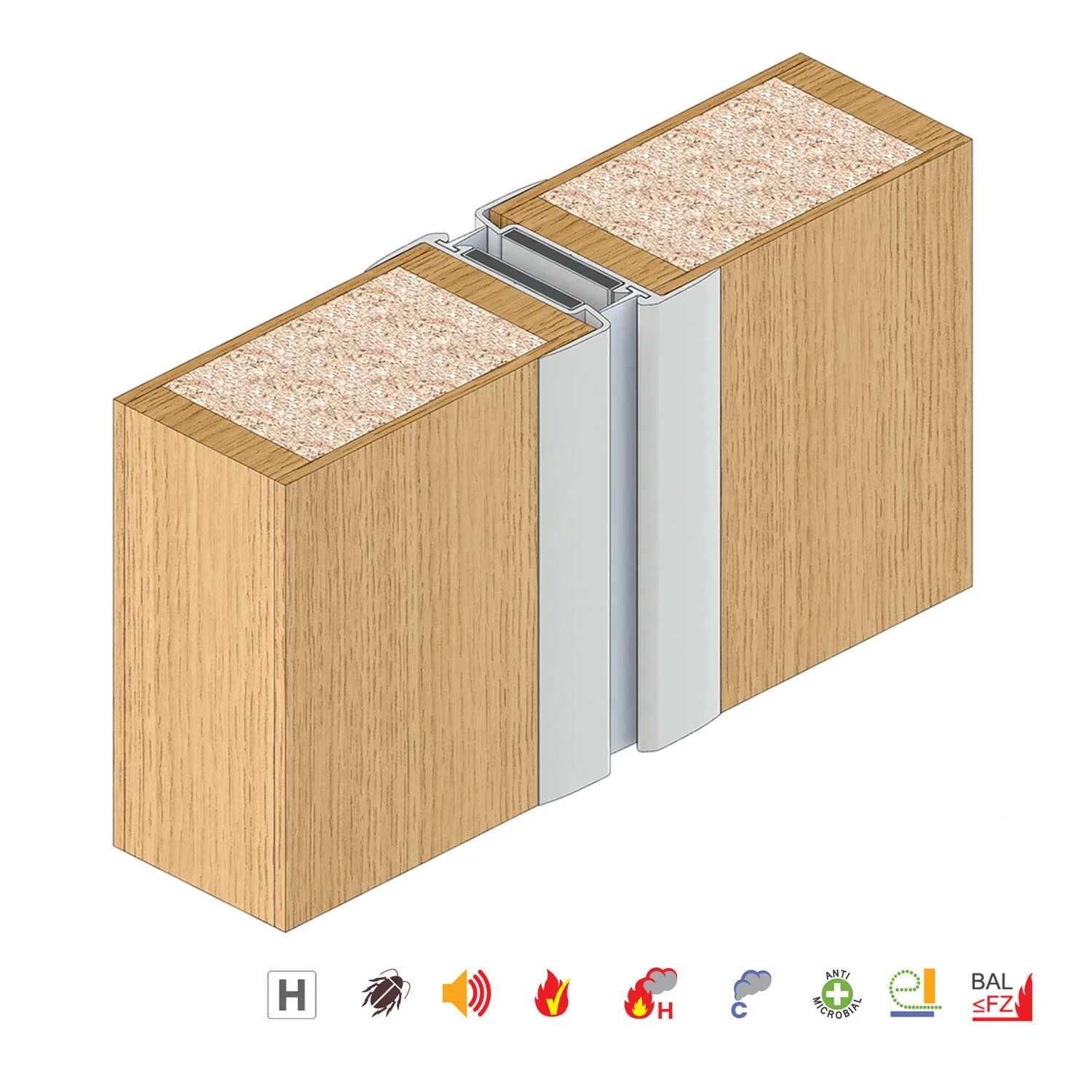

• With concealed fixings, the RP122 is a twin section aluminium bullnose meeting stile seal (astragal) seal with an intumescent infill and PVC fin smoke seal

Specifications

• Location: Meeting stiles of pairs of 47mm nominal thickness double action fire doors.
• Size: 3000mm
• Fixing: Screw Fixed (Concealed screw fix. Zinc plated, cross recess head CSK S.T. screws supplied. Self-adhesive intumescent infill)
• Minimum and Maximum Gap: 14mm to 16mm (Gap is determined prior to installation)
• Replacement Seals: RP3122Si
• Material: Aluminium (Anodised aluminium with rigid PVC holder and intumescent infill, and silicon rubber (SE) medium temperature smoke seal fins)
• Door/Frame Construction: Timber
• Door Type: Double Inward Opening, Double Outward Opening, Pivot
• Finish: Clear Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Fire AUS/NZ: NZBC C/AS2 4.16.2, NCC Spec C3.4, AS 1530.4:2005 & earlier
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FD120, Up to FRL & FRR-/120/30
• Smoke AUS/NZ: BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4, AS 1530.7
