Raven RP112 Threshold Plates - Available in Various Finishes and Sizes
Raven RP112 Threshold Plates
Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

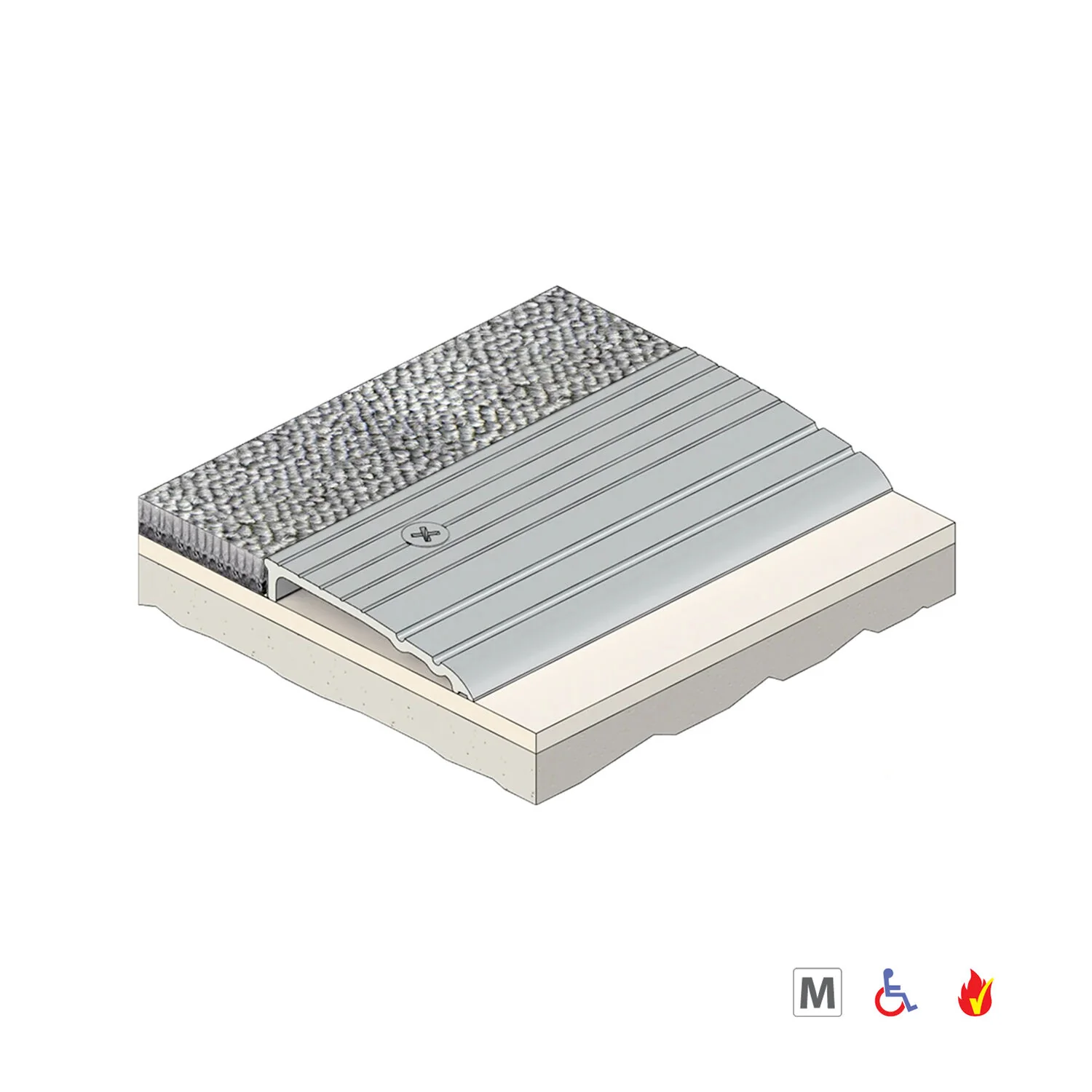

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.
Features:
- A medium duty threshold plate which can be positioned back-to-back to form a two-way threshold ramp
- Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration
- Can also be used to provide a ramped frame for internal door mats and tiles
Specifications:
- Location: Door Sil
- Fixing: Screw Fix

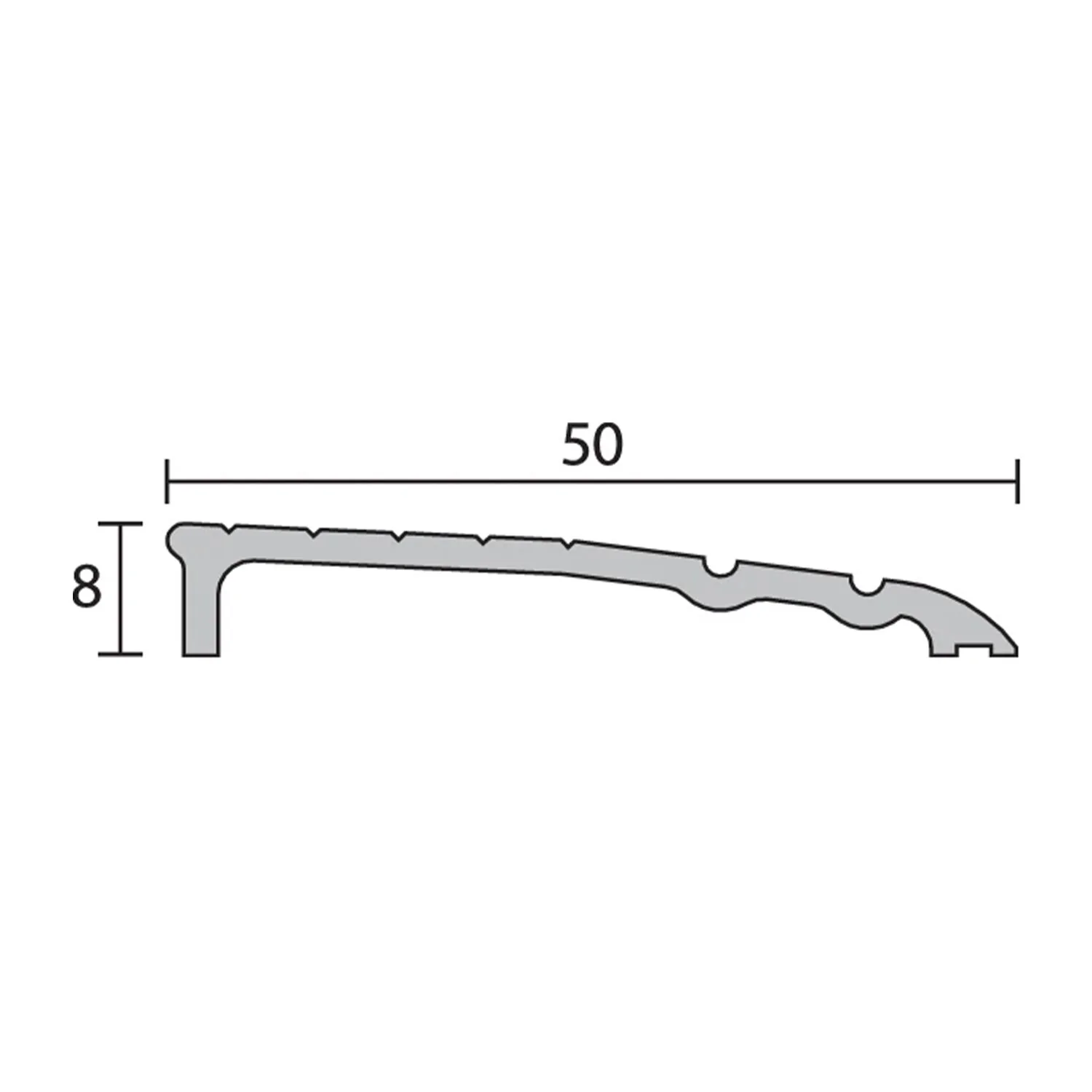

- Width: 50mm
- Projection: 8mm
-
Length:
- 1000mm
- 2000mm
-
Available Finish:
- Bronze Anodised
- Silver Anodised
Approvals:
- NCC D3D16, AS1428.1:2009 Part 10.5. AS1428.1:2021 Part 7.5, NCC D4D4, NZBC D1/AS1 1.3.2
- Approved Access & Mobility UK/EU
- UL: R37913, ANSI/BHMA: A156.21
- AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) & App C6.1.1, AS 1530.4
- Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
- Up to FD240, Up to FRL & FRR-/240/30
- BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
Select Size
Select Colour or Finish
From $7.35
Original: $24.50
-70%Raven RP112 Threshold Plates - Available in Various Finishes and Sizes—
$24.50
$7.35
Description
Raven RP112 Threshold Plates
Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.
Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.
Features:
- A medium duty threshold plate which can be positioned back-to-back to form a two-way threshold ramp
- Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration
- Can also be used to provide a ramped frame for internal door mats and tiles
Specifications:
- Location: Door Sil
- Fixing: Screw Fix
- Width: 50mm
- Projection: 8mm
-
Length:
- 1000mm
- 2000mm
-
Available Finish:
- Bronze Anodised
- Silver Anodised
Approvals:
- NCC D3D16, AS1428.1:2009 Part 10.5. AS1428.1:2021 Part 7.5, NCC D4D4, NZBC D1/AS1 1.3.2
- Approved Access & Mobility UK/EU
- UL: R37913, ANSI/BHMA: A156.21
- AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) & App C6.1.1, AS 1530.4
- Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
- Up to FD240, Up to FRL & FRR-/240/30
- BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
