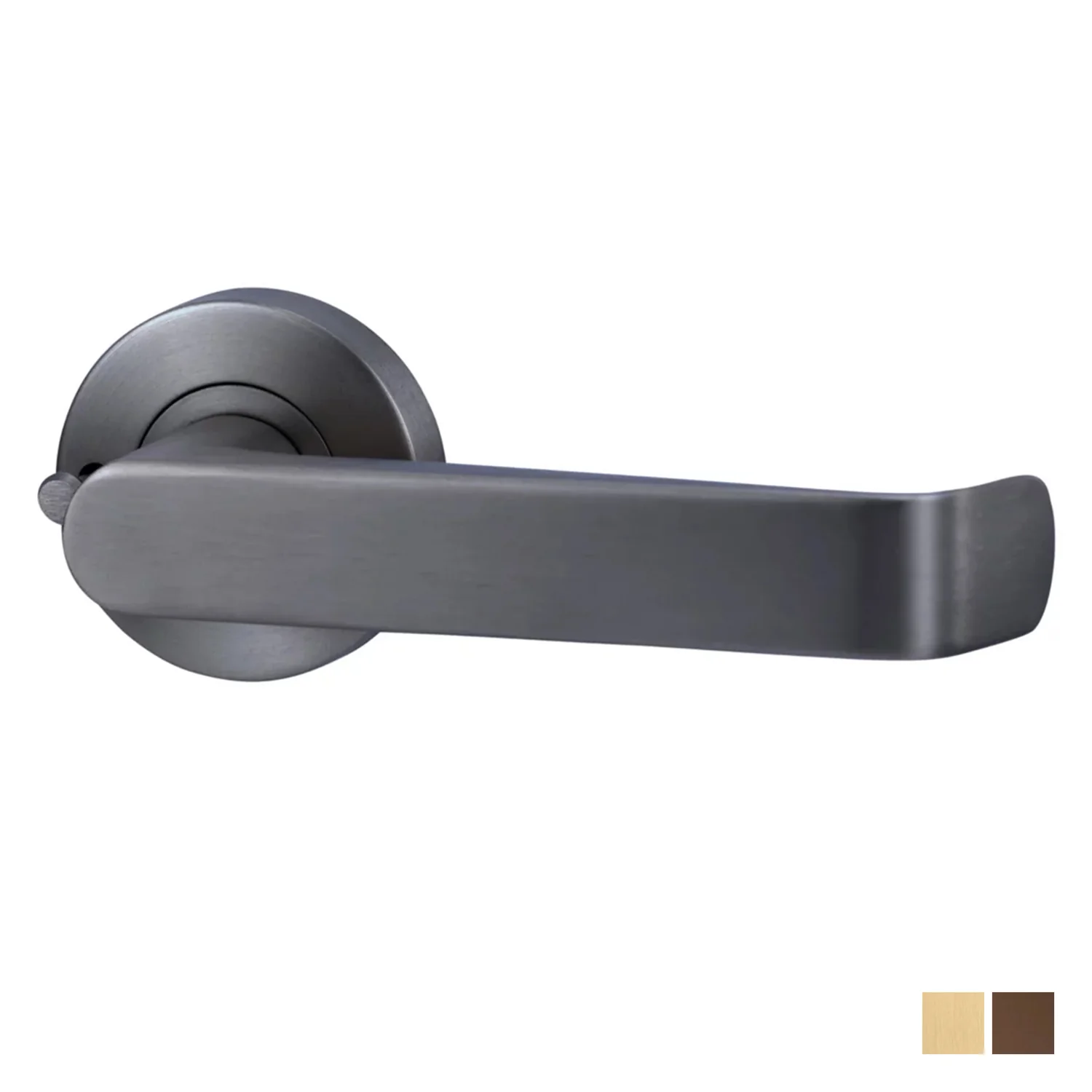

Lockwood Vivid V1 Privacy Set Includes Latch - Available in Various Finishes

Lockwood Vivid V1 Privacy Set

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

• 2 x Lever
• 2 x Rose Trim
• 1 x Privacy Latch
• 1 x Face Plate
• 1 x Privacy Pin
• 1 x Pointed Tool
• 2 x Spindle
• 2 x Spindle Springs
• 2 x Through Fix Screws
• 2 x Hex Inserts
• 1 x Strike Plate
• 1 x Dustbox
• 4 x Timber Mounting Screws

Features:

• A stylish range of internal door furniture suitable for use in residential dwellings.
• All fixings are concealed beneath a removable rose trim providing an aesthetically appealing installation.
• Finishes are derived from a physical vapor deposition (PVD) surface treatment which offers a range of benefits, including sustainability and durability.

Specifications:

• Rose Diameter: 54mm
• Rose Thickness: 12mm
• Lever Length: 127mm
• Lever Width: 22mm
• Door Thickness: 32mm - 45mm
• Projection: 53mm
• Available Finish:

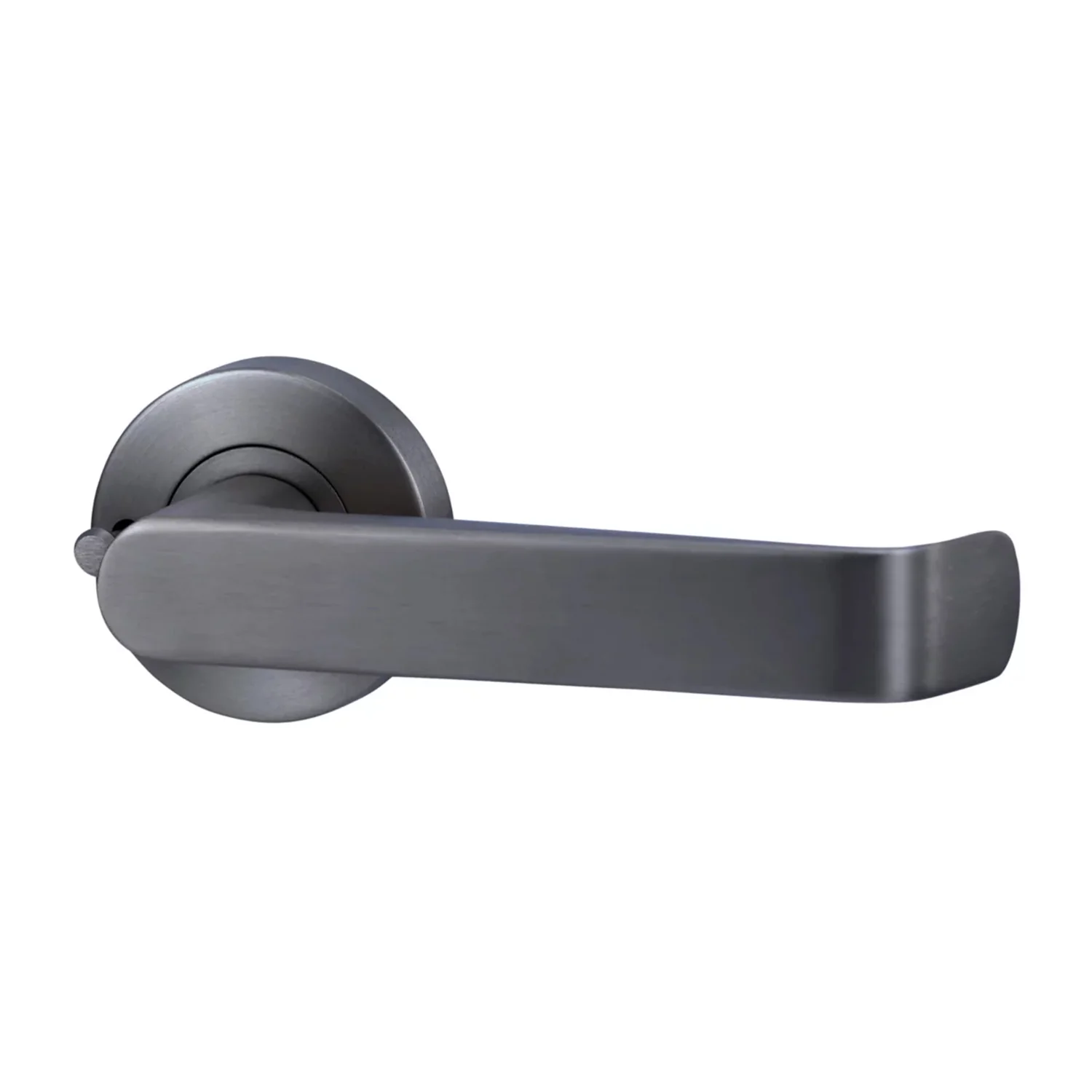

  • Gunmetal

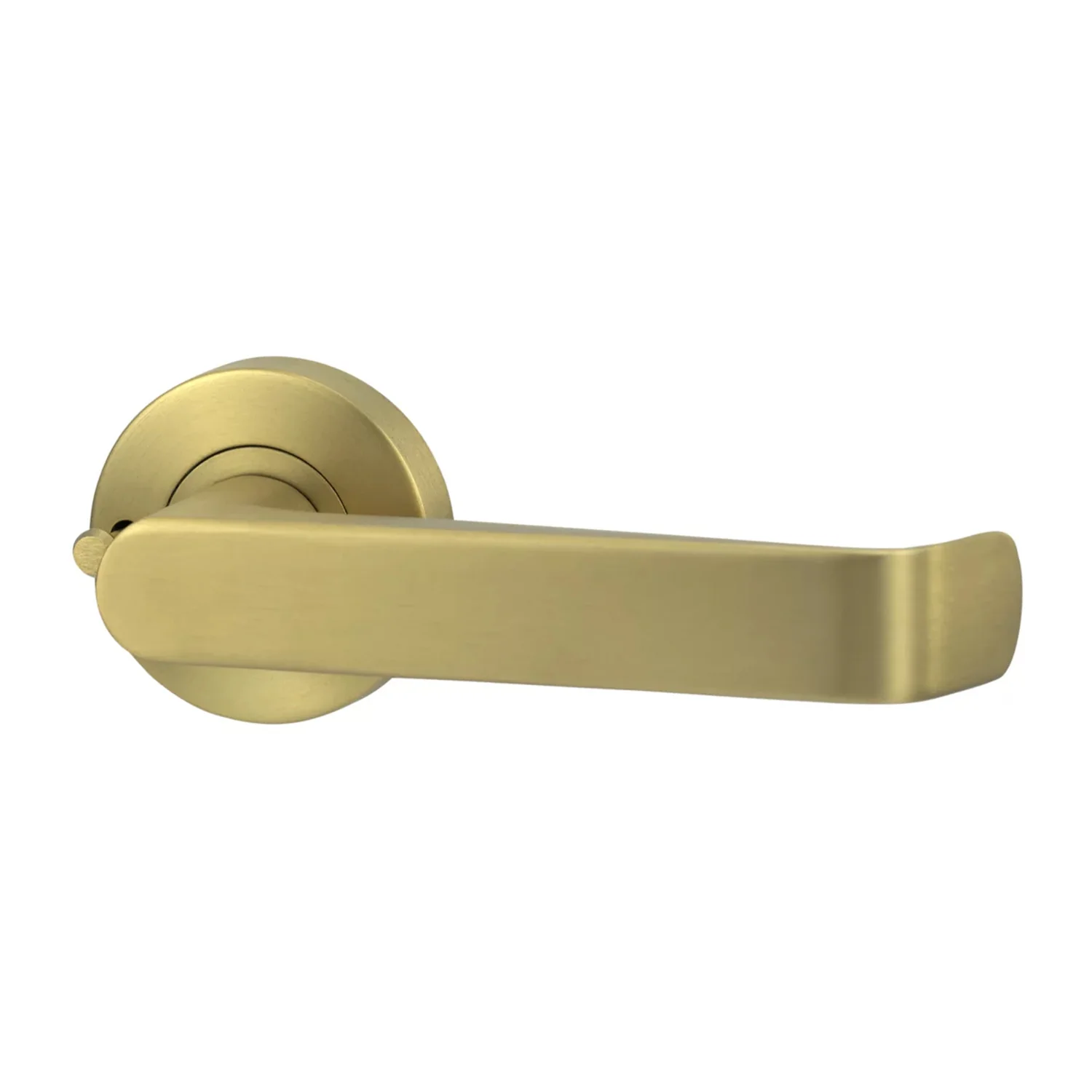

  • Satin Brass

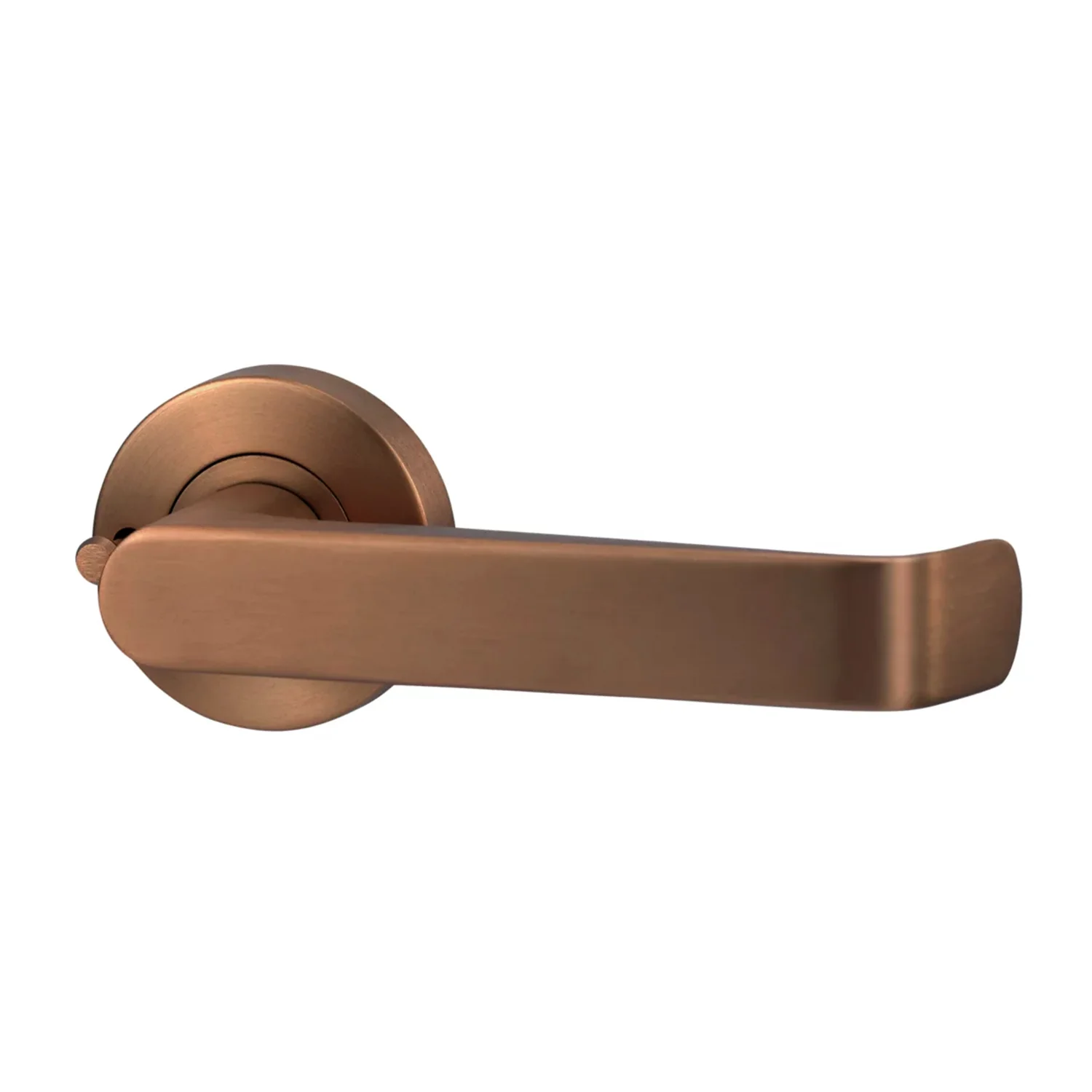

  • Satin Bronze

Standards and Compliance:

• Tested to AS4145.2 2008 for Durability passing D7 - 300,000 cycles.
• Tested to AS4145.2 2008 for Neutral Salt Spray, passing C6 - 168 hours.
• AS1428.1-2009, Designed for access and mobility.
