Lockwood 4900 Square End Plate with Cylinder Hole - Available in Various Finishes

Lockwood Square End Plate with Cylinder Hole 4900

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

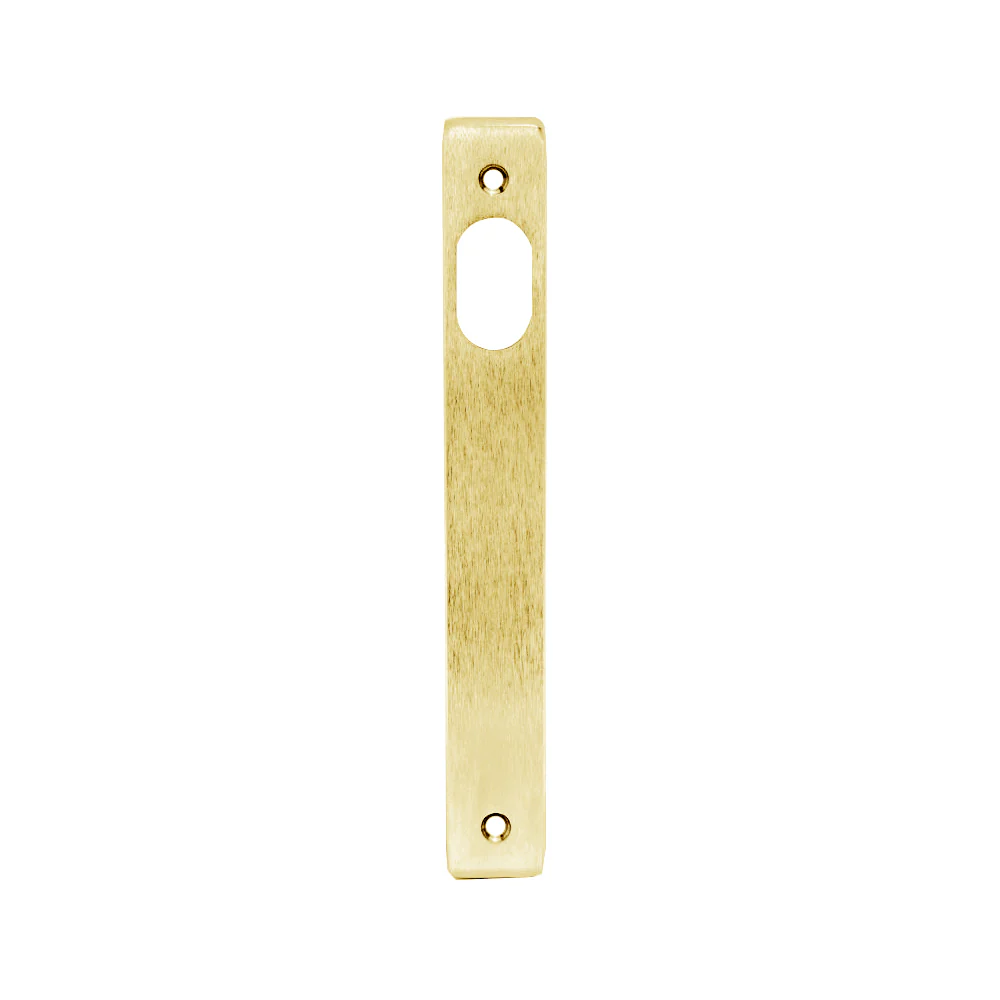

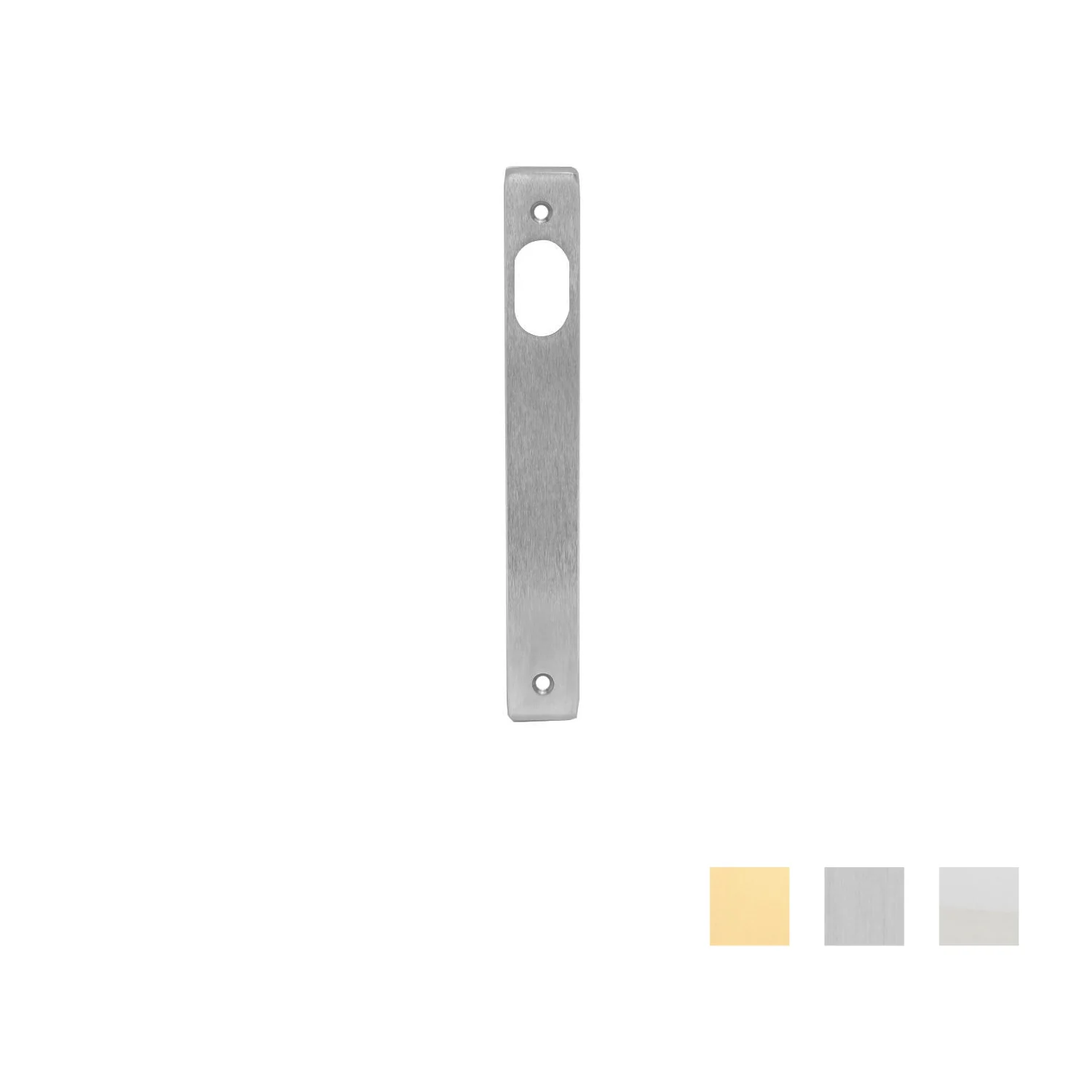

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Designed for use with Lockwood 3580/3780 series locks.
• Suitable for use with LW185SC offset pull handle (ordered separtely)
• Narrow stile internal square end plate
• Cylinder hole only
• Visible fixing
• Plates are designed to fit back to back

Specifications:

• Plate Size: 185mm x 26mm x 11.5mm
• Door Thickness: 32mm - 50mm
• Screw Fixing Centres: 160mm
• Available Finish:
  • Chrome Plate
  • Polished Brass
  • Satin Chrome
  • Satin Chrome Dual Plated
