Locinox Bolt-On Off-Centered Ground Stop Catcher For Double Wing Gates P00006490

Locinox Bolt-On Off-Centered Ground Stop Catcher For Double Wing Gates
P00006490

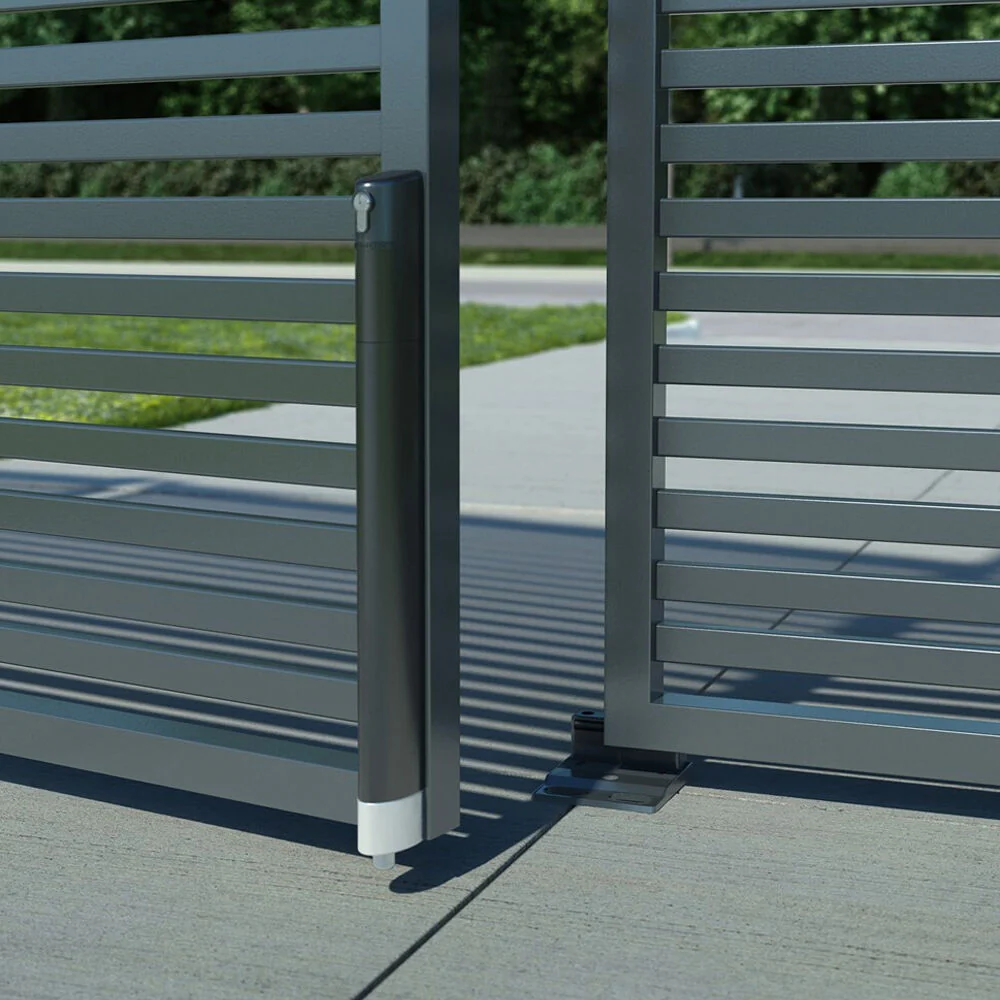

Ground Stop Catcher is commonly used in residential driveways, commercial entrances, farms, and industrial properties to keep both gate leaves aligned and securely closed.

Ground Stop Catcher Function - as a fixed stop that securely holds both gate leaves in the closed position, preventing over-travel and ensuring proper alignment and stability.

Features:

• Strong surface mounted ground stop for double wing gates
• Drop bolts with a maximum axle of Ø20 mm are the perfect fit
• Anchor pins included

Specifications:

• Materials: Black anodized aluminium top plate
• Maximum Drop Bolt Axle Diameter: 20mm

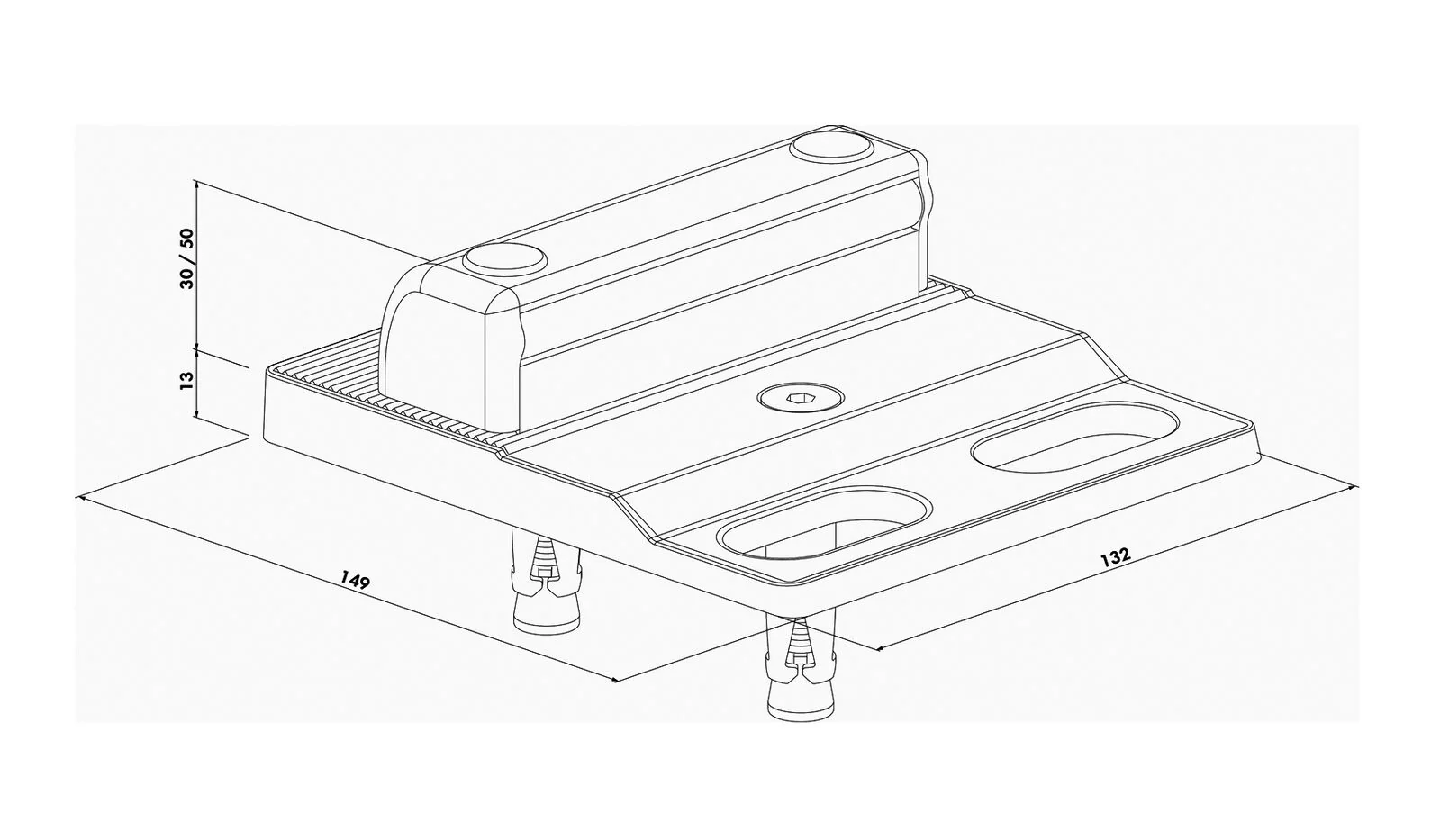

• Adjustable in Height: 20mm to 45 mm (distance between finished ground level & bottom of the gate)
• Adjustable in Depth, Different Gate Profiles Possible:
  • VSA - VSF - Keydrop: 4mm - 60 mm
  • Electradrop: 40mm - 50 mm
• Hours of Salt Spray Testing: 500
• Finish: Black
