Kilargo IS7340si Astragal Translucent Door Seal For 10mm Glass Doors - Available in Various Sizes
Kilargo IS7340si Astragal Translucent Door Seal For 10mm Glass Doors - Available in Various Sizes
Kilargo IS7340si Astragal Translucent Door Seal
IS7340SI1000CA
Astragal Seal are seals for frameless glass sliding doors.

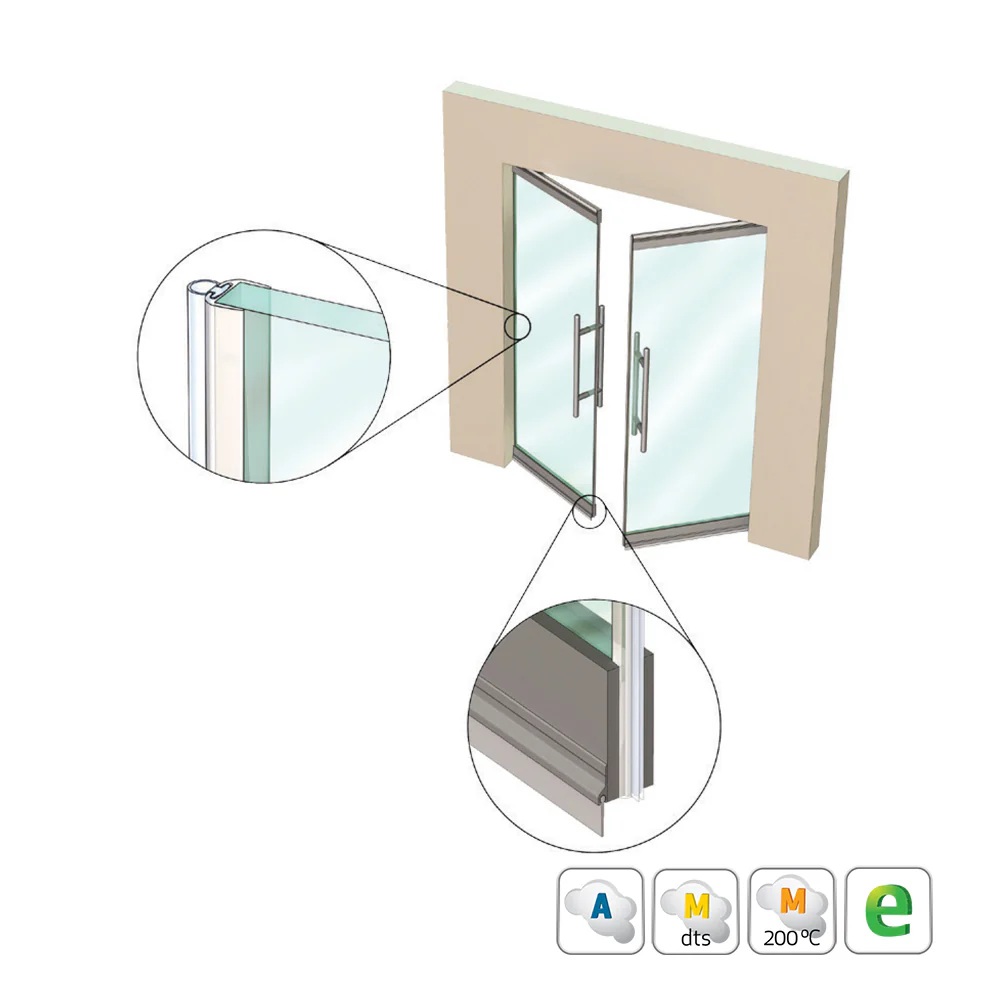

Astragal Seal Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.
- IS7340si and IS7345si suit 10mm glass
Features:
- Suits 10mm thick frameless glass doors, incorporating high temperature semi-transparent silicone gaskets
- With an easy self-adhesive application, the seals are available with a silicone flexible bubble compression seal, or a silicone flexible twin-fin wiping seal, to suit various glass door applications
- Providing ambient temperature smoke containment, along with draught and dust protection
- High performance silicone gaskets also protect glass doors from colliding during closure
Specifications:

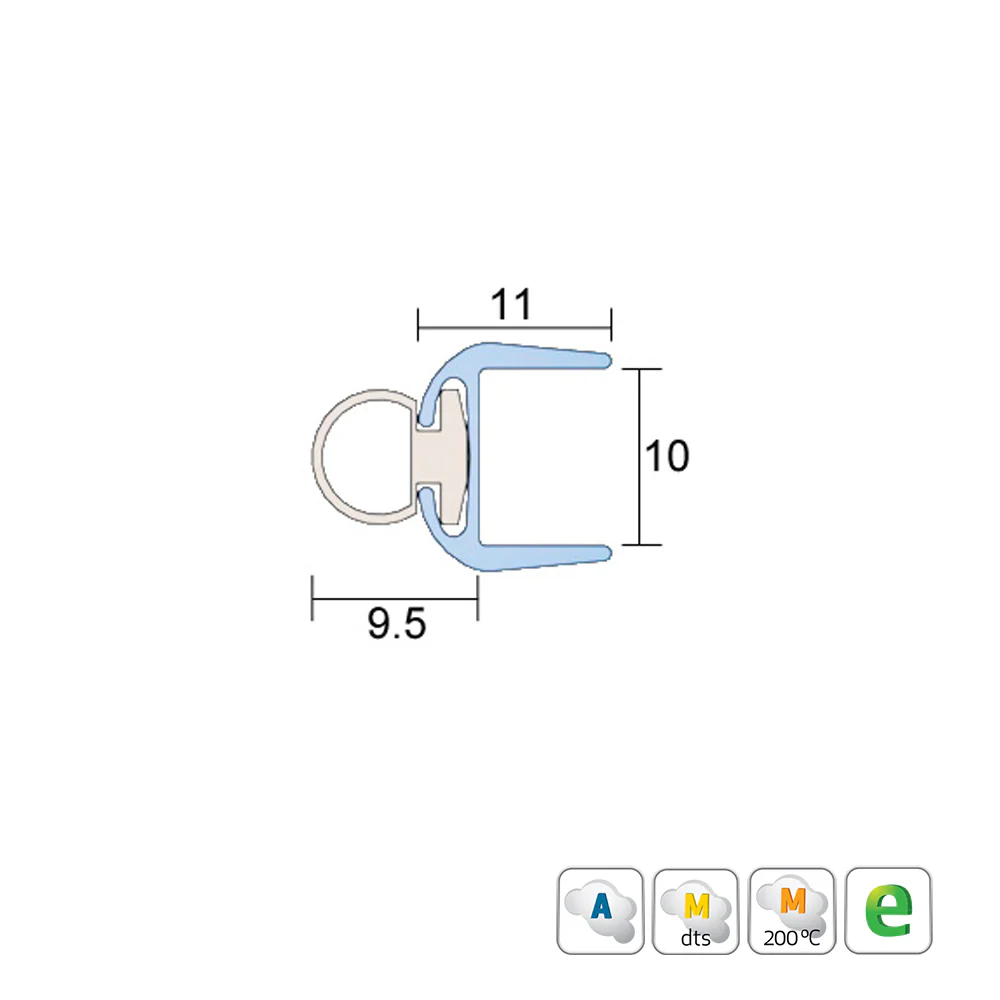

- Gap size Min. 7mm / max. 9mm (prior to installation)
- Available Sizes 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
- Finish Translucent UV stabilised polycarbonate with a semi-transparent silicone bubble or twin-finned gasket
Approvals:

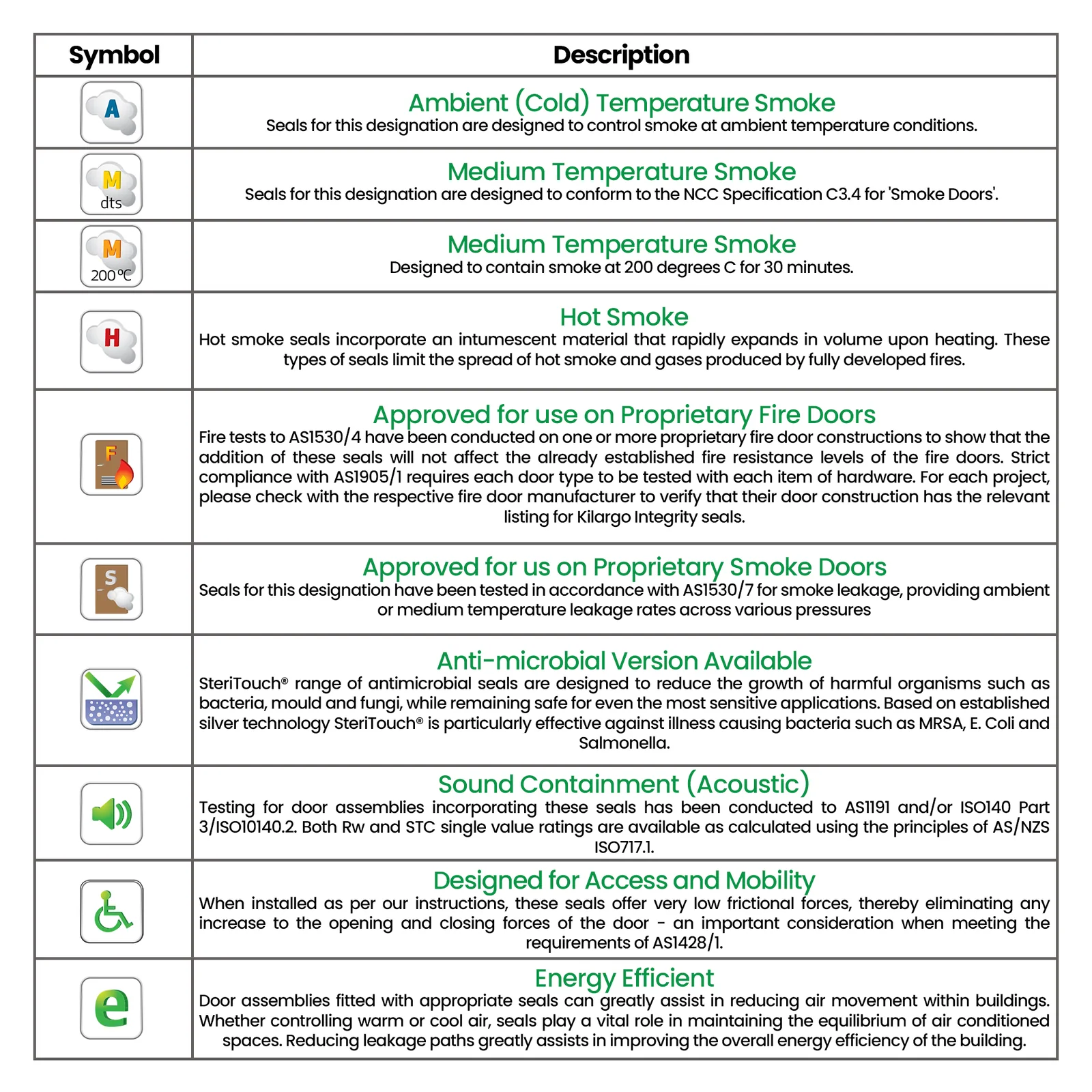

- Conforms with BCA Specification C3.4 smoke sealing requirements
Original: $35.01
-70%$35.01
$10.50
Description
Kilargo IS7340si Astragal Translucent Door Seal
IS7340SI1000CA
Astragal Seal are seals for frameless glass sliding doors.
Astragal Seal Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.
- IS7340si and IS7345si suit 10mm glass
Features:
- Suits 10mm thick frameless glass doors, incorporating high temperature semi-transparent silicone gaskets
- With an easy self-adhesive application, the seals are available with a silicone flexible bubble compression seal, or a silicone flexible twin-fin wiping seal, to suit various glass door applications
- Providing ambient temperature smoke containment, along with draught and dust protection
- High performance silicone gaskets also protect glass doors from colliding during closure
Specifications:
- Gap size Min. 7mm / max. 9mm (prior to installation)
- Available Sizes 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
- Finish Translucent UV stabilised polycarbonate with a semi-transparent silicone bubble or twin-finned gasket
Approvals:
- Conforms with BCA Specification C3.4 smoke sealing requirements
