Kilargo IS5161Hsi Silicone Sweep Seal - Available in Various Sizes

Kilargo IS5161Hsi Silicone Sweep Seal

Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.

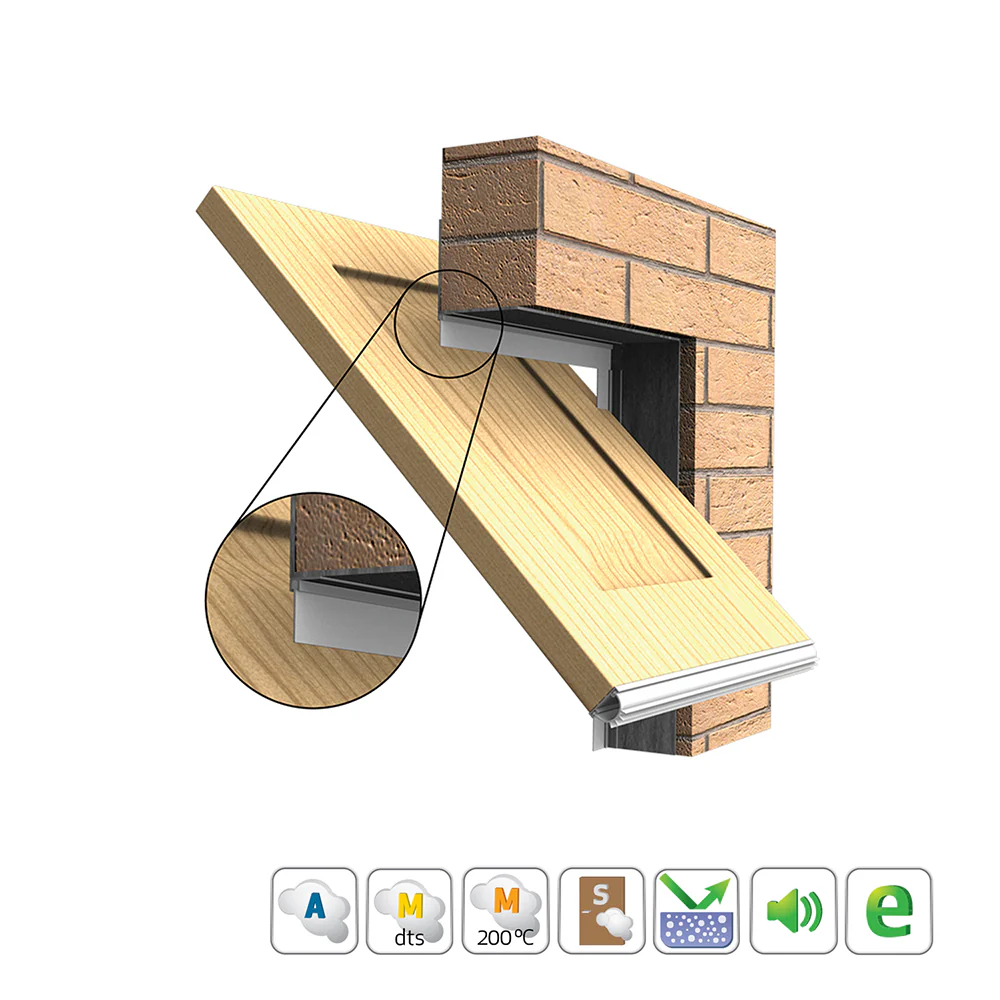

Sweep Seal Function - seals the gap between the door's bottom and the threshold. Sweeps away dirt or debris that accumulate at the base of the door when it is closed.

Features:

• Used to prevent ambient/medium temperature smoke, draught and dust penetration.

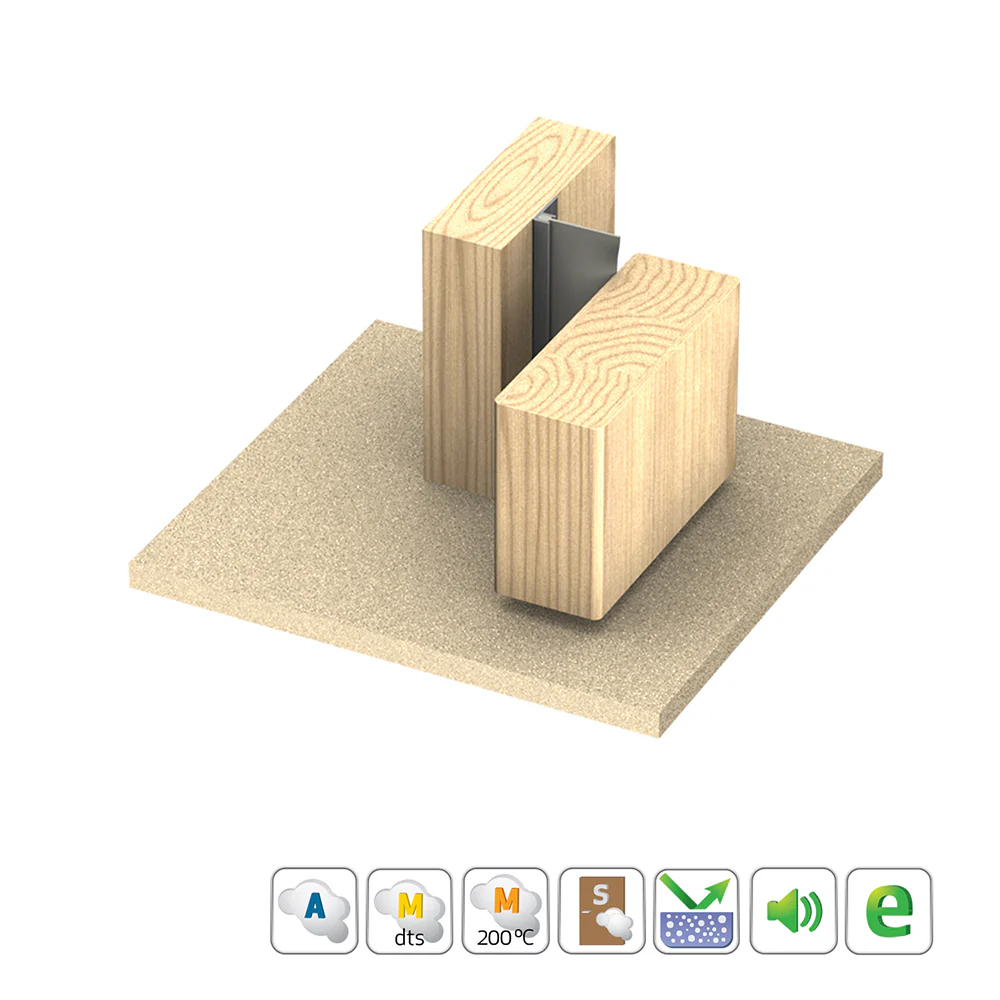

• Designed with a 90º angle aluminium carrier for use on sliding doors.

Specifications:

• Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3500mm, 4000mm, 4500mm and 5000mm
• Silicone Fin Sizes: 13mm
• Fixing:
  • Silicone sweep seals (within carriers) can be screw-fixed or self-adhered to the desired surface
  • Fixing screws and aggressive backing tape are supplied
• Finish: Clear Anodised

Approvals:

• Conforms to BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
