Kilargo IS5121SI Silicone Sweep Door Seal - Available in Various Finishes and Sizes

Kilargo IS5121SI Silcone Sweep Door Seal

Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.

Sweep Seal Function - seals the gap between the door's bottom and the threshold. Sweeps away dirt or debris that accumulate at the base of the door when it is closed.

Features:

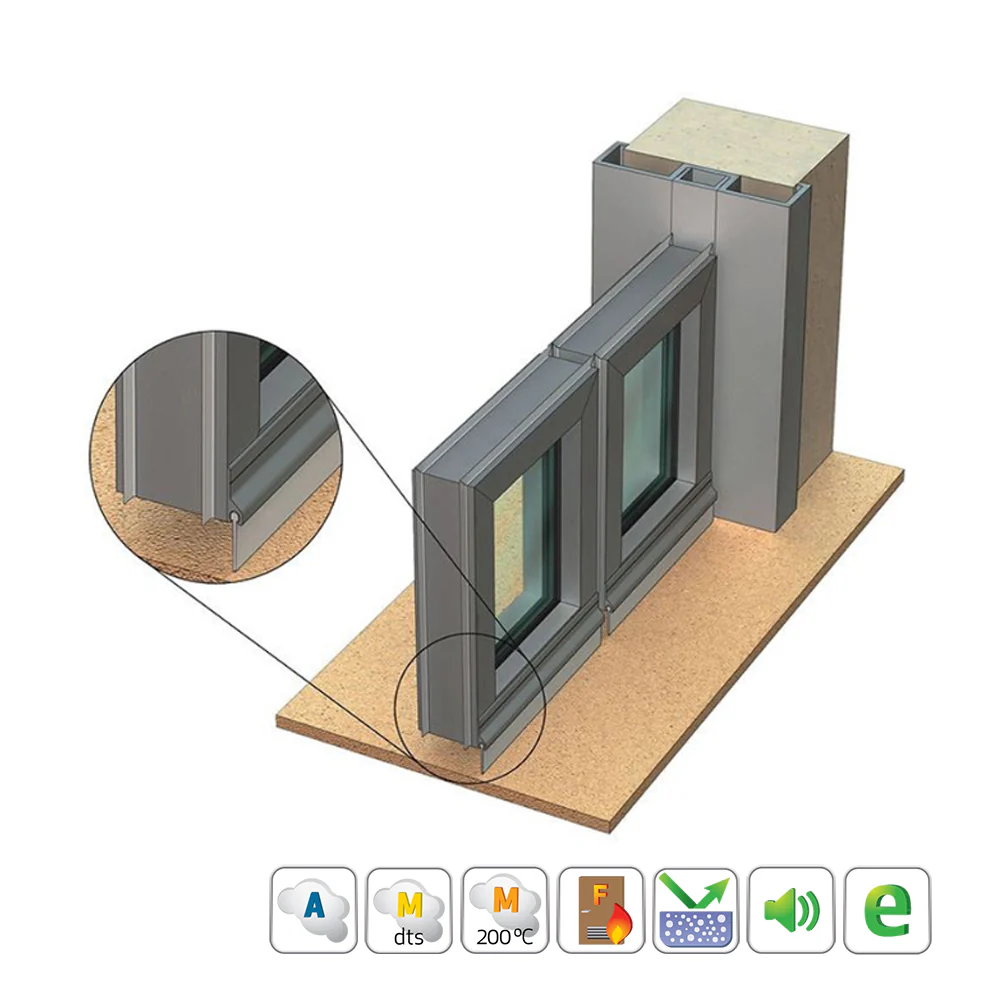

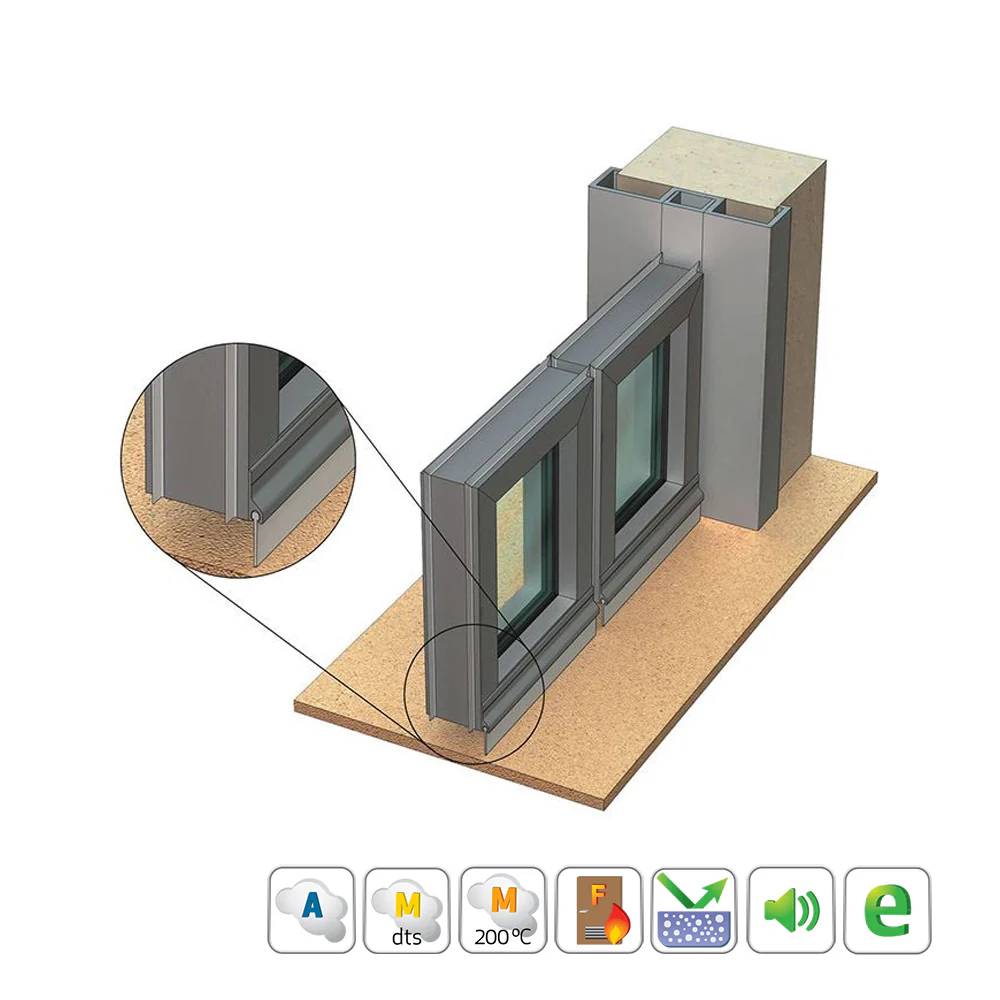

• Designed to be used around the head and jambs, door bottom and meeting stiles of single or double swing doors, revolving, tilt-up and roller doors
• Helps protect against ambient and medium temperature smoke, draught and dust, and weather penetration
• Slim line carriers are aesthetically angled to avoid dust build-up
• Provide excellent sealing solutions for pivot action smoke doors and clean room applications

Specifications:

• Gap Size: 19mm / max. 24mm
• Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
• Fixing:
  • Silicone sweep seals (within carriers) can be screw-fixedor self-adhered to the desired surface
  • Fixing screws and aggressive backing tape are supplied
• Available Finish:
  • Black Anodised
  • Clear Anodised

Approvals:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Conforms with NCC Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
