Kilargo Horizontal Brush Seal IS5160H - Available in Various Sizes

Kilargo Horizontal Brush Seal
IS5160H

Brush Door Seal can be mounted to fit many angles and spaces. Doors are generally the most common use for weather stripping.

Brush Door Seal Function - are designed to remove leakage between surfaces. To provide the most effective seal possible on a irregular surfaces.

Features:

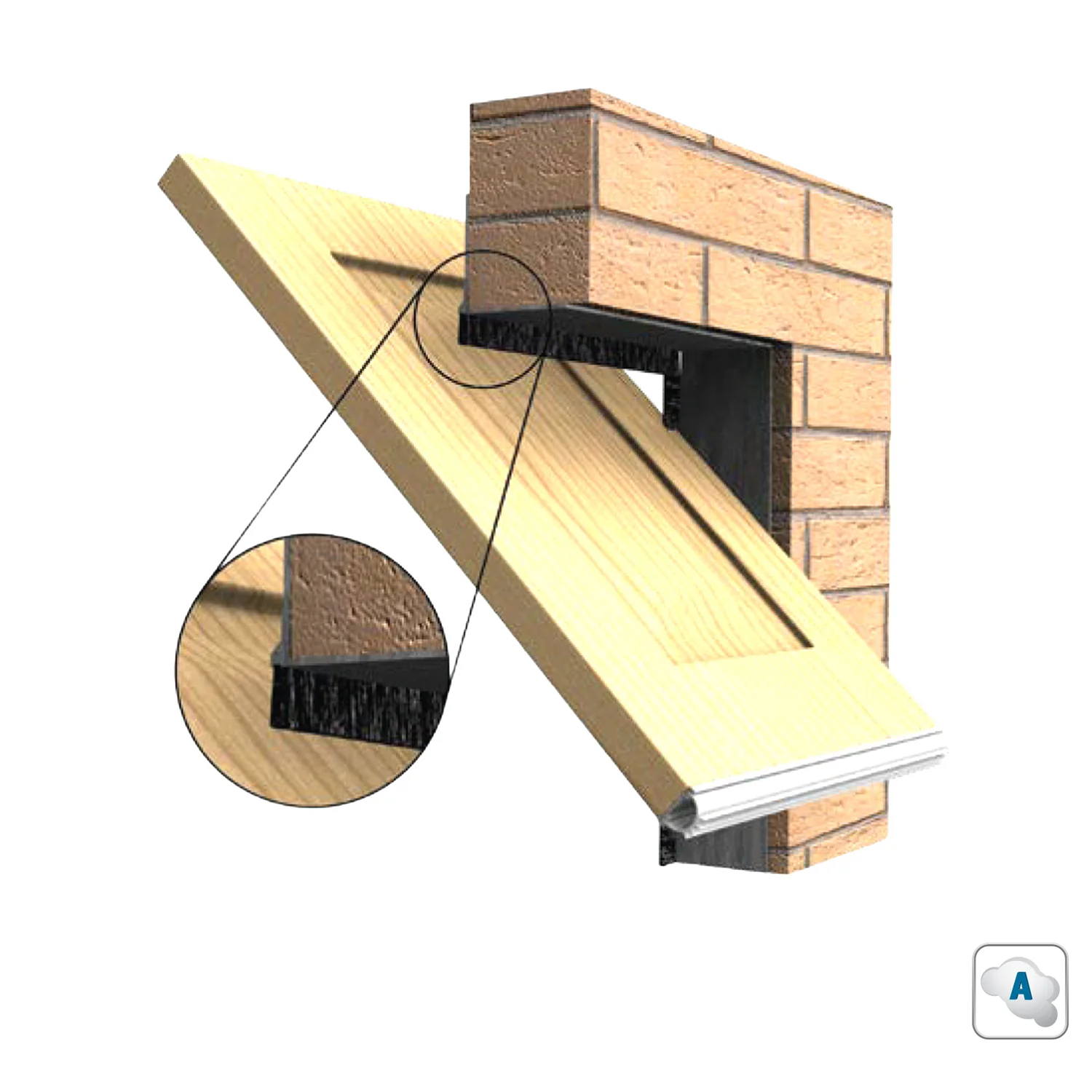

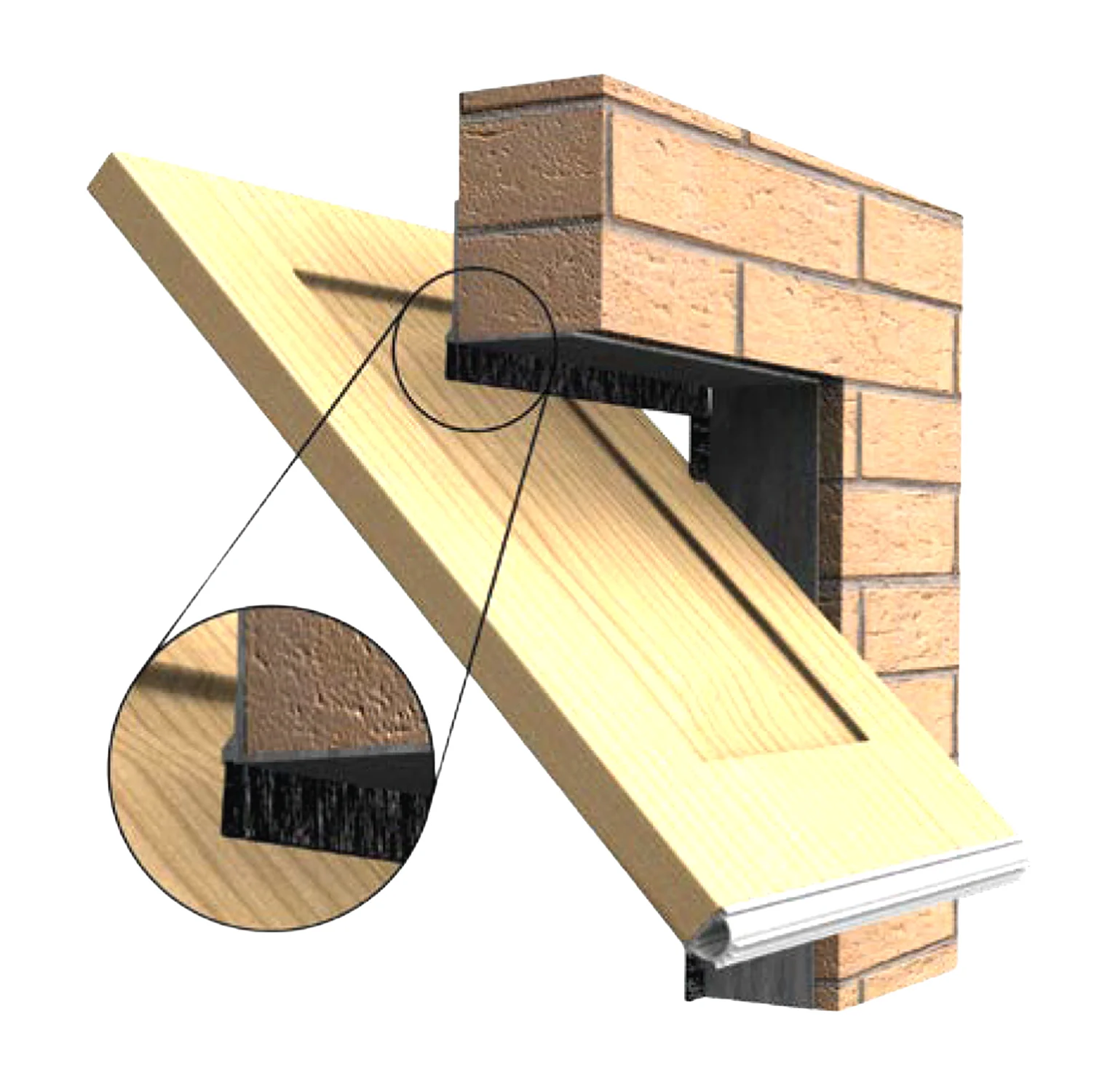

• The IS5160H seal is designed with a 90 degrees angle aluminium carrier and is used to prevent draught and dust penetration on sliding doors.

Fixing:

• Brush seals (within carriers) can be screw fixed or self-adhered to the desired surface
• Fixing screws and aggressive backing tape are supplied

Specifications:

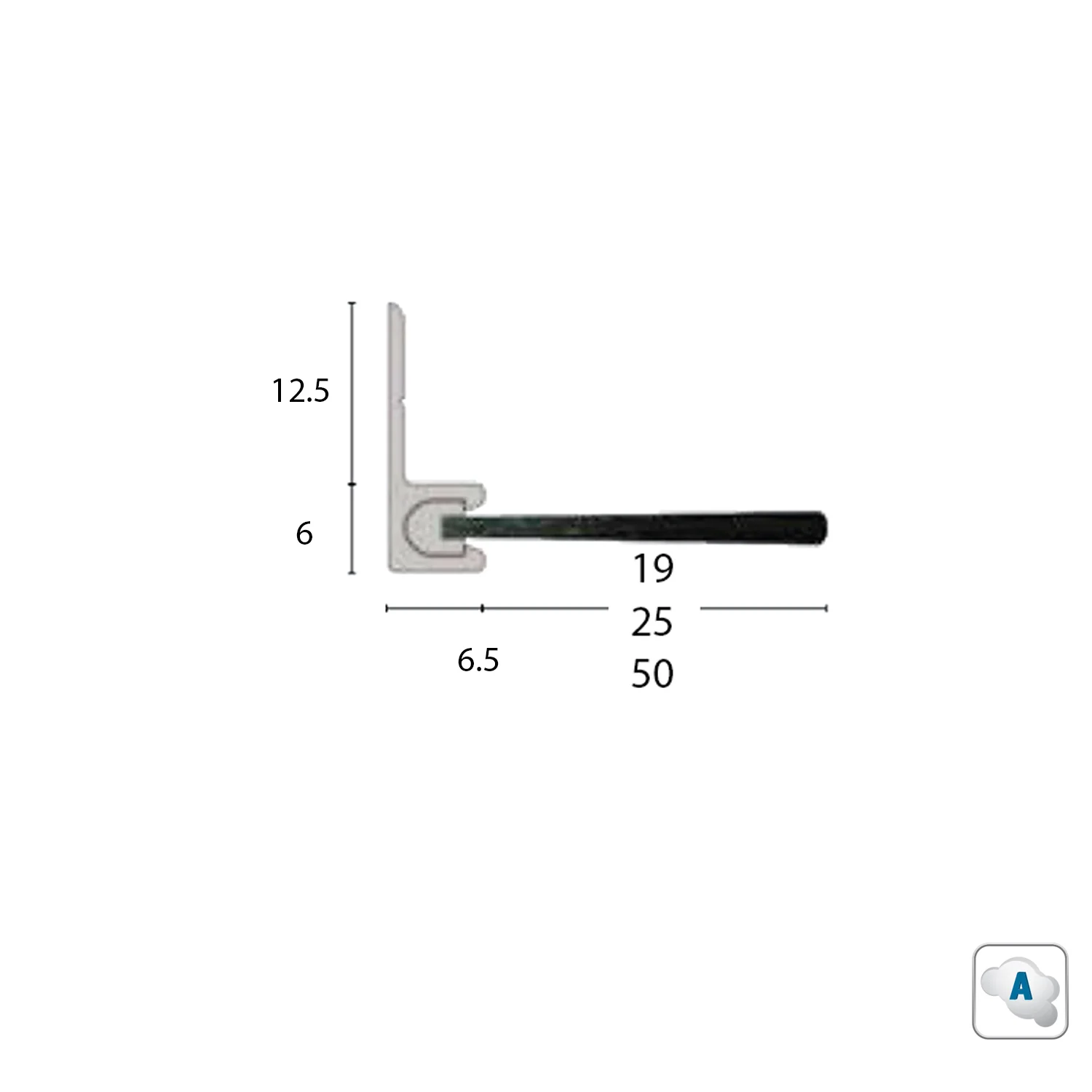

• Gap Size: 23mm (minimum) to 29mm (maximum)
• Available Brush Size:
  • 19mm
  • 25mm
  • 50mm
• Available Size (Lengths):
  • 1000mm
  • 1250mm
  • 1500mm
  • 1750mm
  • 2000mm
  • 2250mm
  • 2500mm
  • 2750mm
  • 3000mm
• Finish: Clear Anodised

Approvals:

• Durability tests demonstrating over 100,000 open and close cycles
