Kilargo Firtree Perimeter Door Seal - Available in Various Finishes and Sizes

Kilargo Firtree Perimeter Door Seal

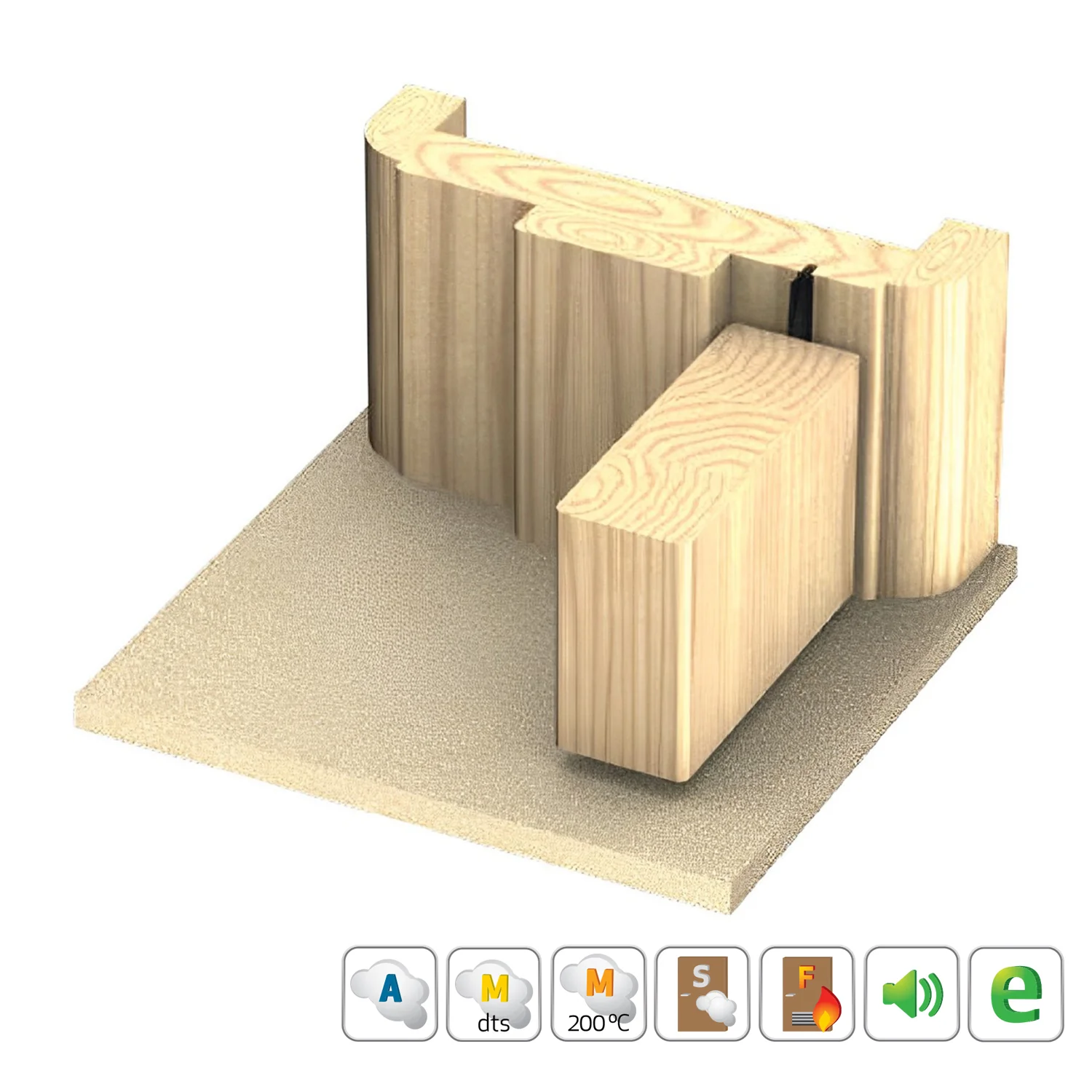

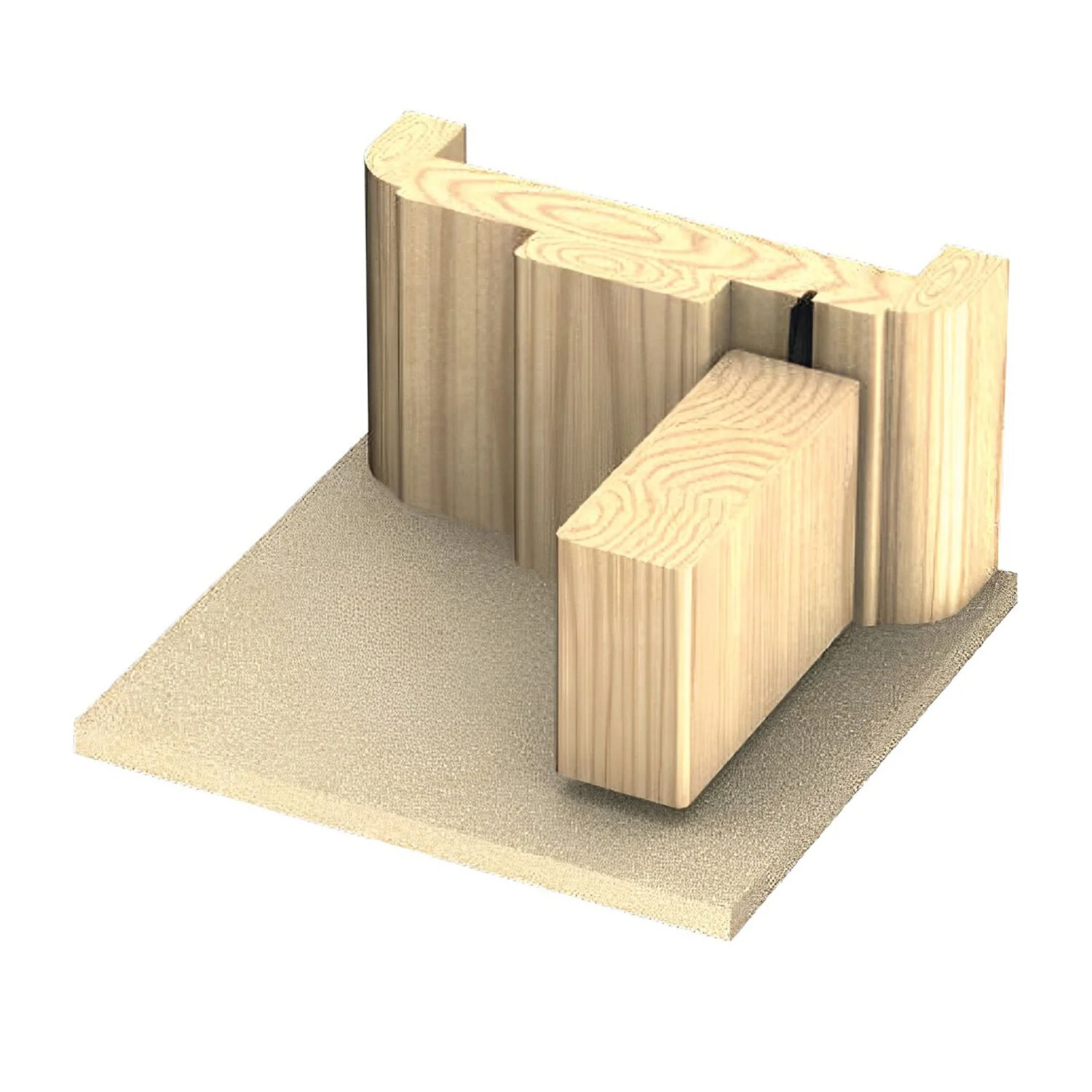

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• Ensuring the highest standards of production, this product is proudly manufactured in Australia.

Specficications:

• Gap Size:
  • 4mm
  • 6mm
• Length:
  • 1000mm
  • 2100mm
  • 2400mm
  • 2700mm
  • 3000mm

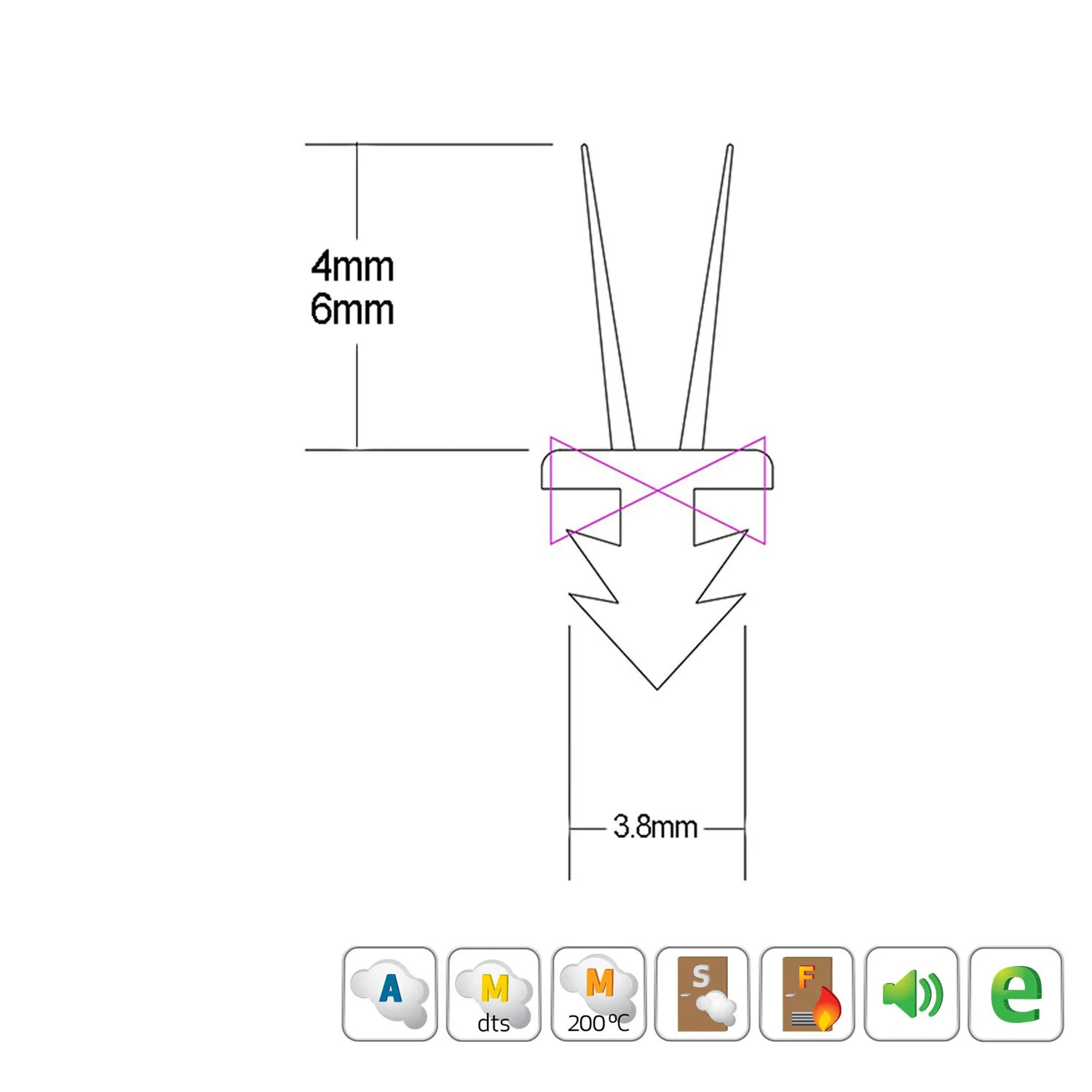

• Width: 6.2mm
• Fin Width: 3.8mm
• Available Finish:
  • Black
  • White

Approvals and Ratings:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Medium temperature smoke leakage approvals to AS1530 Part 7, compliant with AS6905 on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
• Durability tests demonstrating over 100,000 open and close cycles
