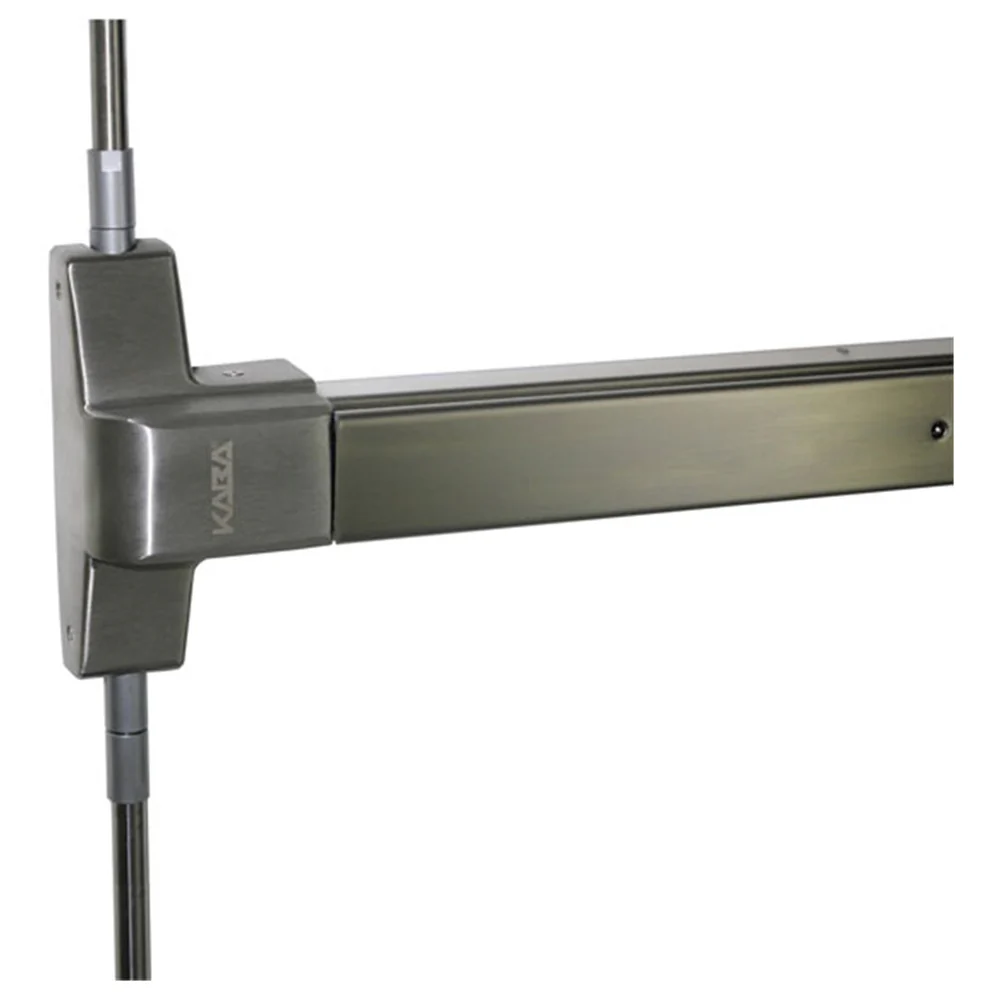

Dormakaba Vertical Rod Type Panic Exit Device 1085mm Satin Stainless Steel ED2227EOSSS

Dormakaba Vertical Rod Type Panic Exit Device
ED2227EOSSS

Panic Exit Device is used on doors in public buildings to provide a quick and easy means of exiting a building in the event of an emergency, such as a fire or other life-threatening situations.

Panic Exit Device Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

Features:

• Designed to provide emergence egress by a single action pushing motion via a modern design touch pad, fitted horizontally across the door
• Provides secure two point latching in top and bottom of door and offers latch hold back (dogging) options,external trim options for lever / knob or pull handle and is suitable for double or single, metal or timber doors
• Horizontal fitting with 2 point vertical locking
• Latch-bolt is dead-latching
• Field selectable handing
• Hex key dogging

Specifications:

• Door Thickness: 35mm - 50mm
• Suits: Up to 2100mm high doors

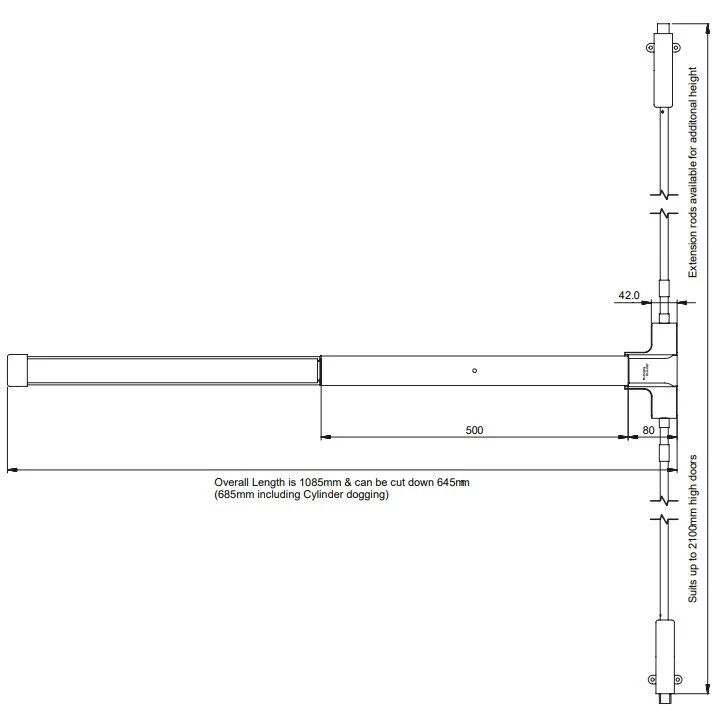

• Length: 1085mm (can be field sized to 645 mm minimum length)
• Has Dogging: Yes
• Fire Rated: No
• Locking Mode: Locking - Vertical
• Finish: Satin Stainless Steel
