Dormakaba Storeroom Door Pack MS2 Mortice Lock w/ Cylinder & Lever Furniture

Dormakaba Storeroom Lock Pack

Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.

Mortice Lock Kit Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is operated on the interior and exterior by a knob or lever.

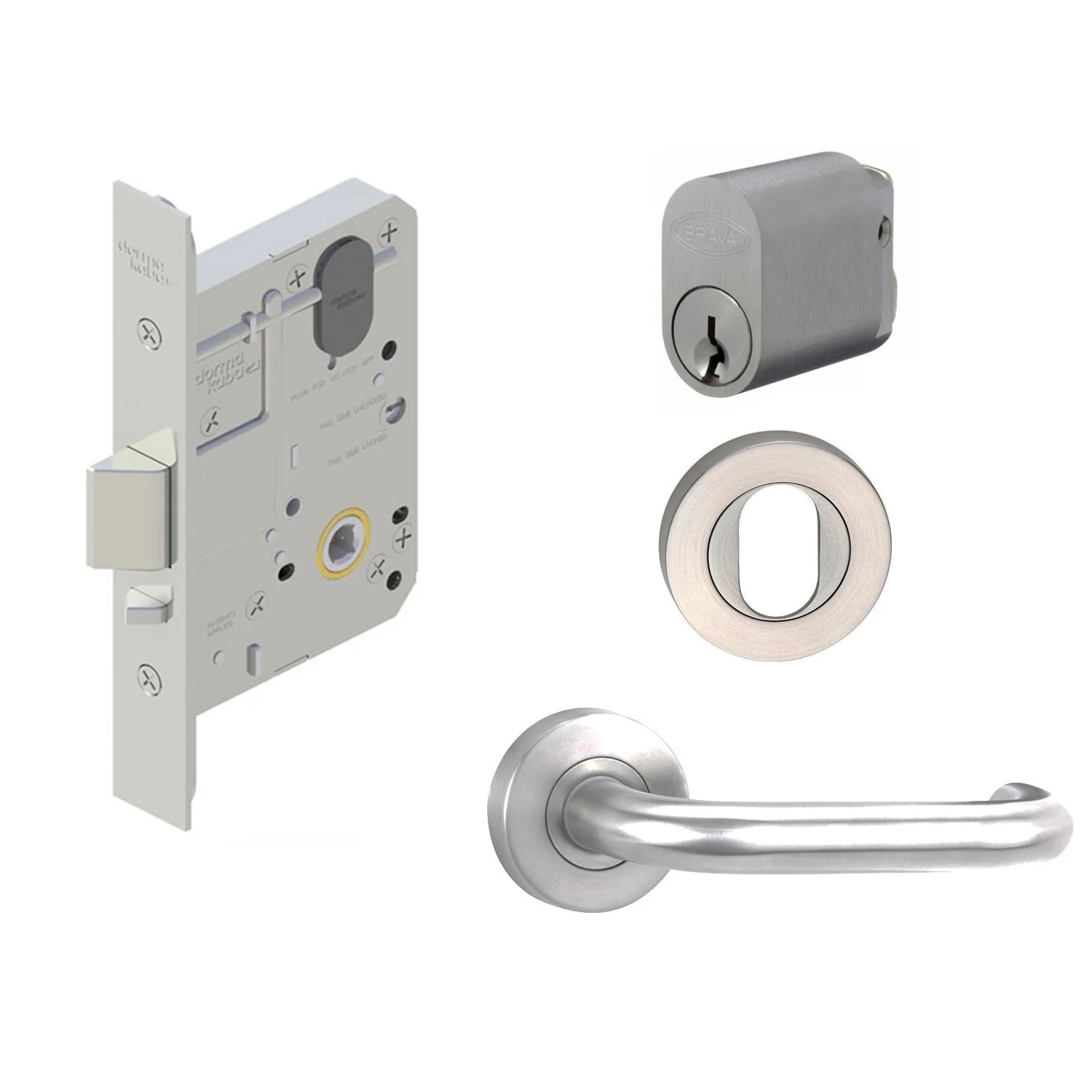

Includes:

• 1 x MS2 Mortice Door Lock Commercial Grade 60mm Backset Satin Stainless Steel MS2602
• 1 x Dormakaba Oval Cylinder Escutcheon 54mm 316 Satin Stainless Steel 4306SSS
• 1 x Brava Oval Cylinder X W Z Rabbit Cams 6 Pin Keyed Differ Satin Chrome 5070USCKD
• 1 x Yale Simplicity S2 Door Lever Handle on Round Rose Stainless Steel YSH1/S2NLSS

Dormakaba Heavy Duty Mortice Lock
MS2602SSS

Features:

• MS2602 primary mortice lock
• Operated by key or handle outside or by turnsnib, key or handle inside
• 14 mm stainless steel reversible latch bolt
• Easily adapted to most functions
• Supplied with turn snib adaptor
• Supplied less cylinder
• Compatible to most restricted keying systems
• Compatible with most electric strikes
• SCEC approved (SL3)
• Conforms to level SL8 (Physical Security) in accordance with Australian lock standard AS4145.2-2008
• Conforms to level D8 (Durability) in accordance with Australian lock standard AS4145.2-2008

Specifications:

• Material: 304 Grade Stainless Steel
• Backset: 60mm
• Door Thickness: 32mm to 50mm
• Fire Rated: Yes
• Anti-Lockout: Yes
• Finish: Satin Stainless Steel



Yale Simplicity S2 Door Lever Handle on Round Rose
YSH1/S2NLSS

Features:

• Suitable for use in multi-residential developments.
• Designed for use with Simplicity mortice locks as Entrance Sets and Tubular Latches for passage door applications
• Disabled Accessible AS1428.1 Compliant
• A removable stop plate allows these symmetrically designed levers to be handed and set as either an operable or fixed lever on site

Specifications:

• Door Thickness: 32mm to 45mm
• Length: 140mm
• Projection: 60mm
• Diameter: 54mm
• Finish: Stainless Steel

Compliance:

• Fire Rated: Yale Simplicity Series Leversets have been successfully tested with Yale Simplicity Mortice Locks up to 2 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets.
• AS1428.1 compliant levers.



Dormakaba Oval Cylinder Escutcheon
4306SSS

Features:

• Manufactured using 316 grade stainless steel
• High Durability with Concealed Fixings

Specifications:

• Diameter: 54mm
• Projection: 12mm
• Finish: Satin Stainless Steel



Brava 570 Oval Cylinder
5070USCKD

Features:

• Brava type 570 cylinder
• Includes X, W, Z & Rabbit Cams
• 2 keys supplied

Specifications:

• Cylinder: 6 Pin
• Keying: Keyed to Differ
• Finish: Satin Chrome
