Iver Annecy Door Lever Handle on Round Rose Entrance Kit Key/Key - Available in Various Finishes

Iver Annecy Door Lever Handle on Round Rose Entrance Kit

Entrance Lock Kit is defined as a lock that can be unlocked by a key from the outside and inside. Suitable for external doors that need high-security locks, including front and back entrance doors, garage access, patios, and storerooms.

Entrance Lock Kit Function - Outside key unlocks the outside knob, the inside knob is free at all times, push button locks the outside knob.

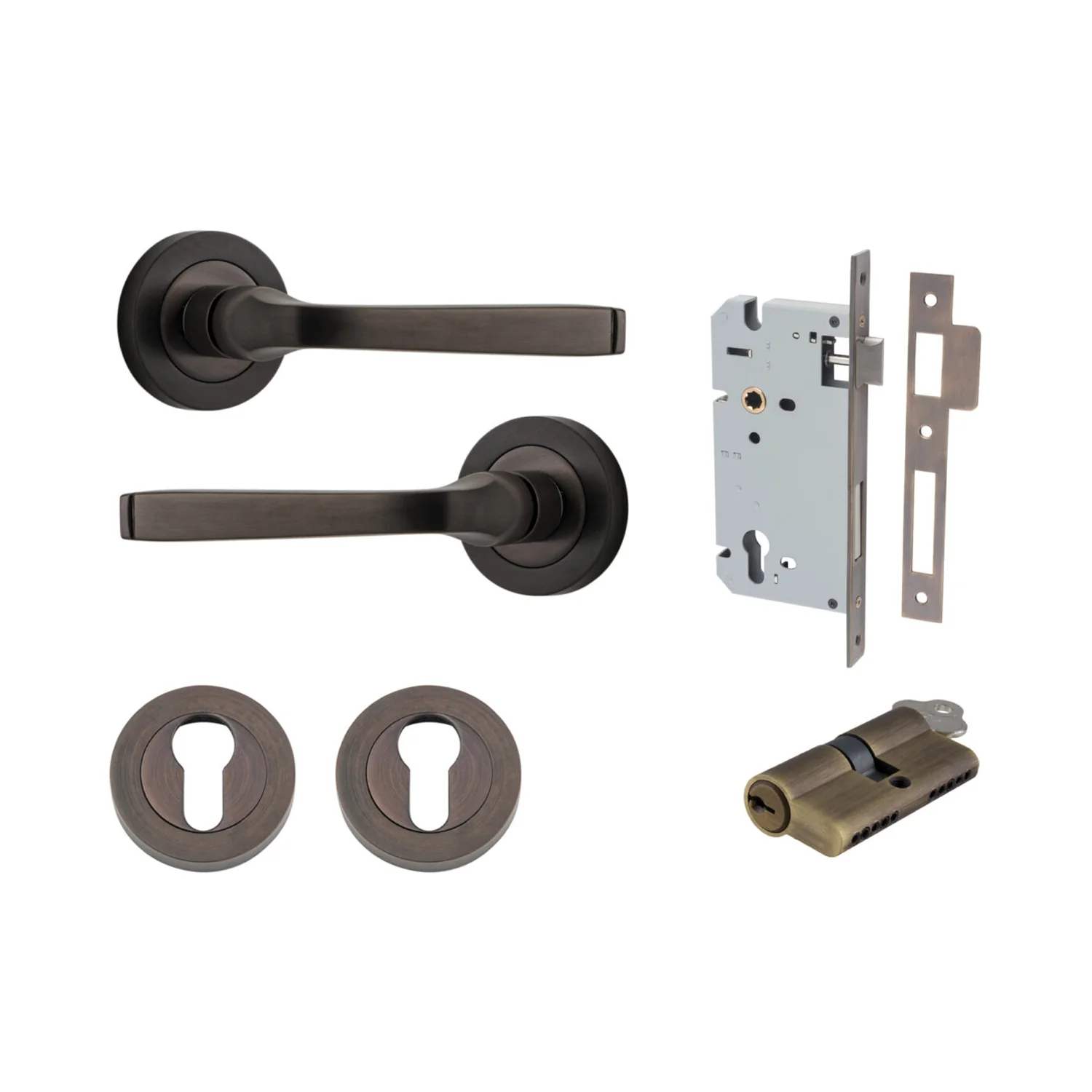

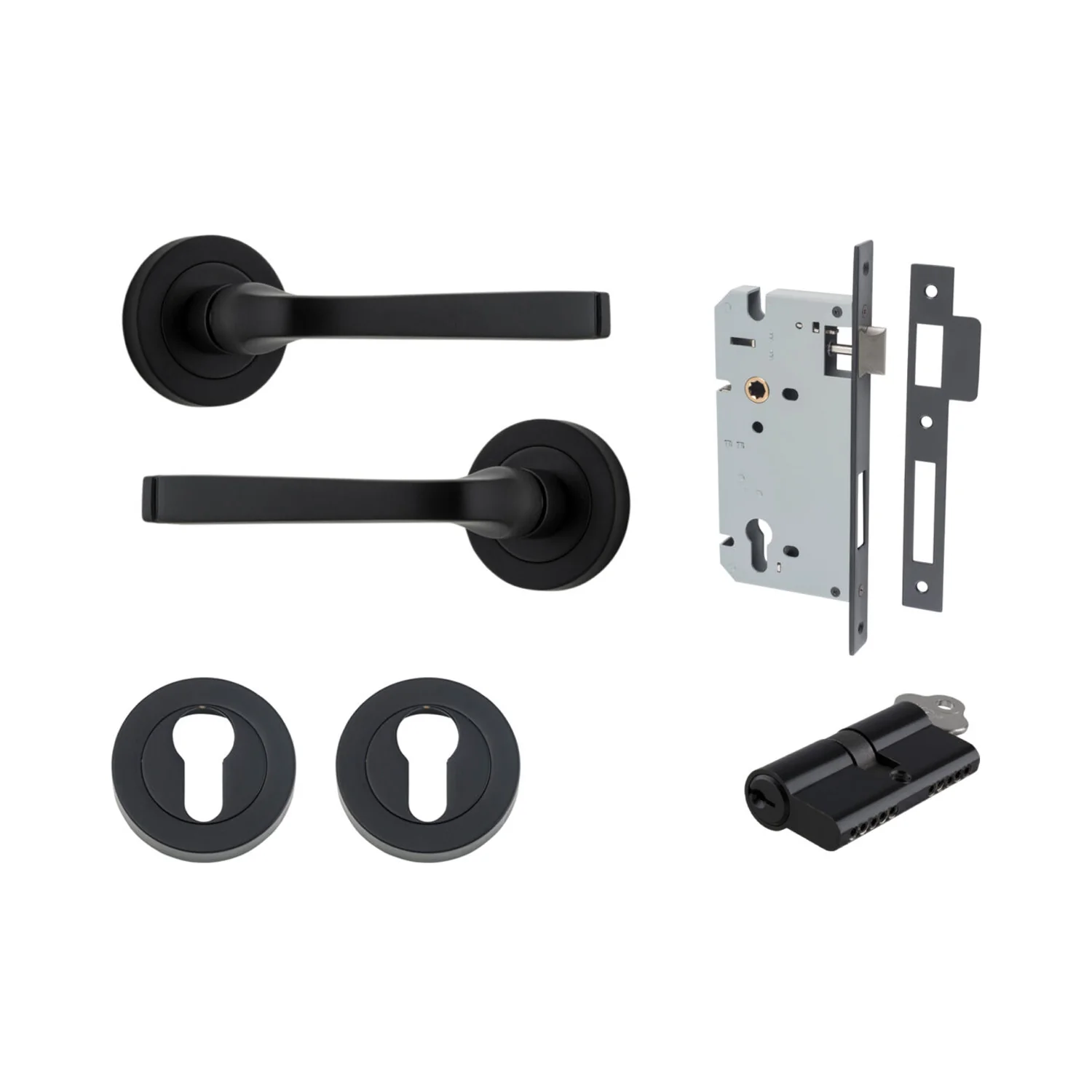

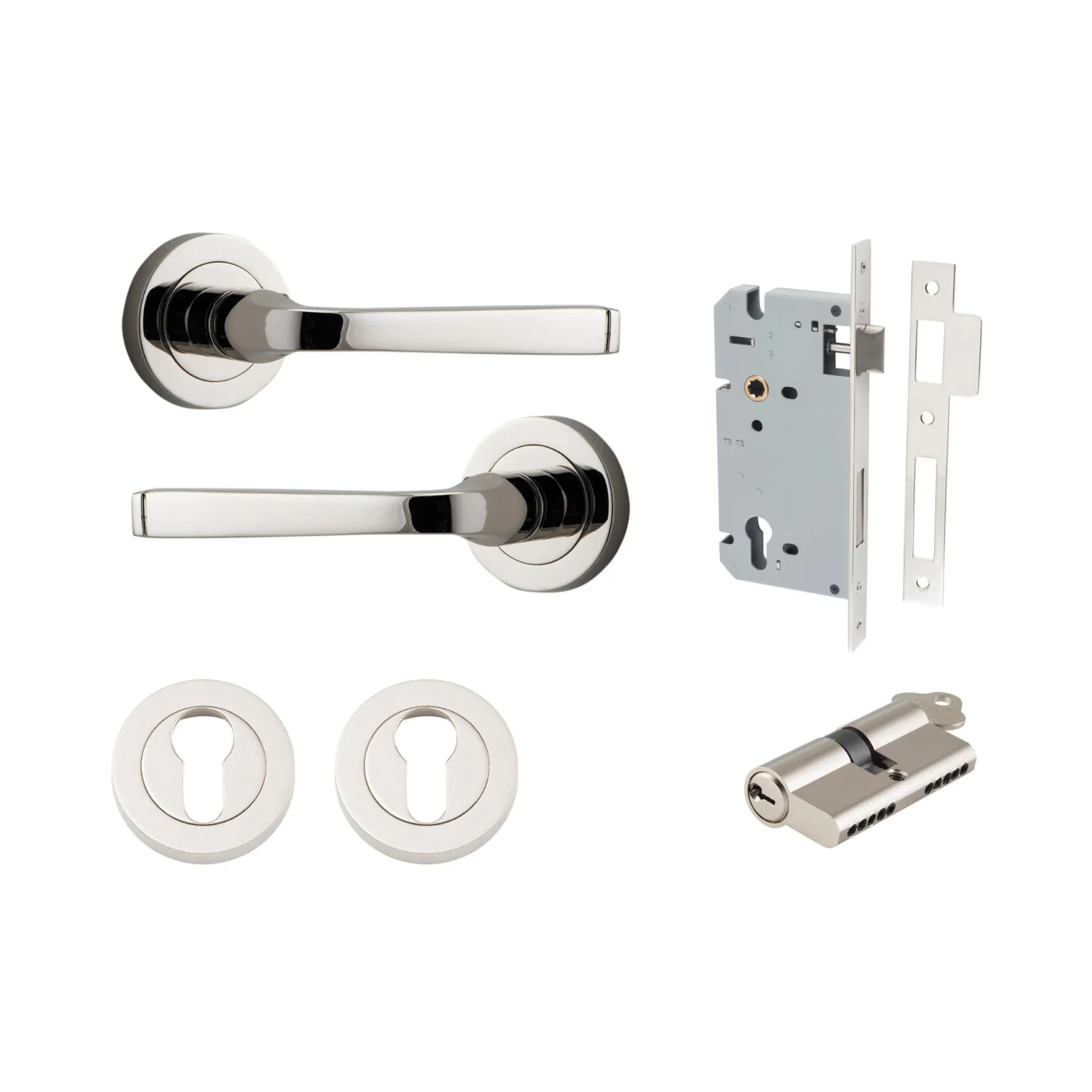

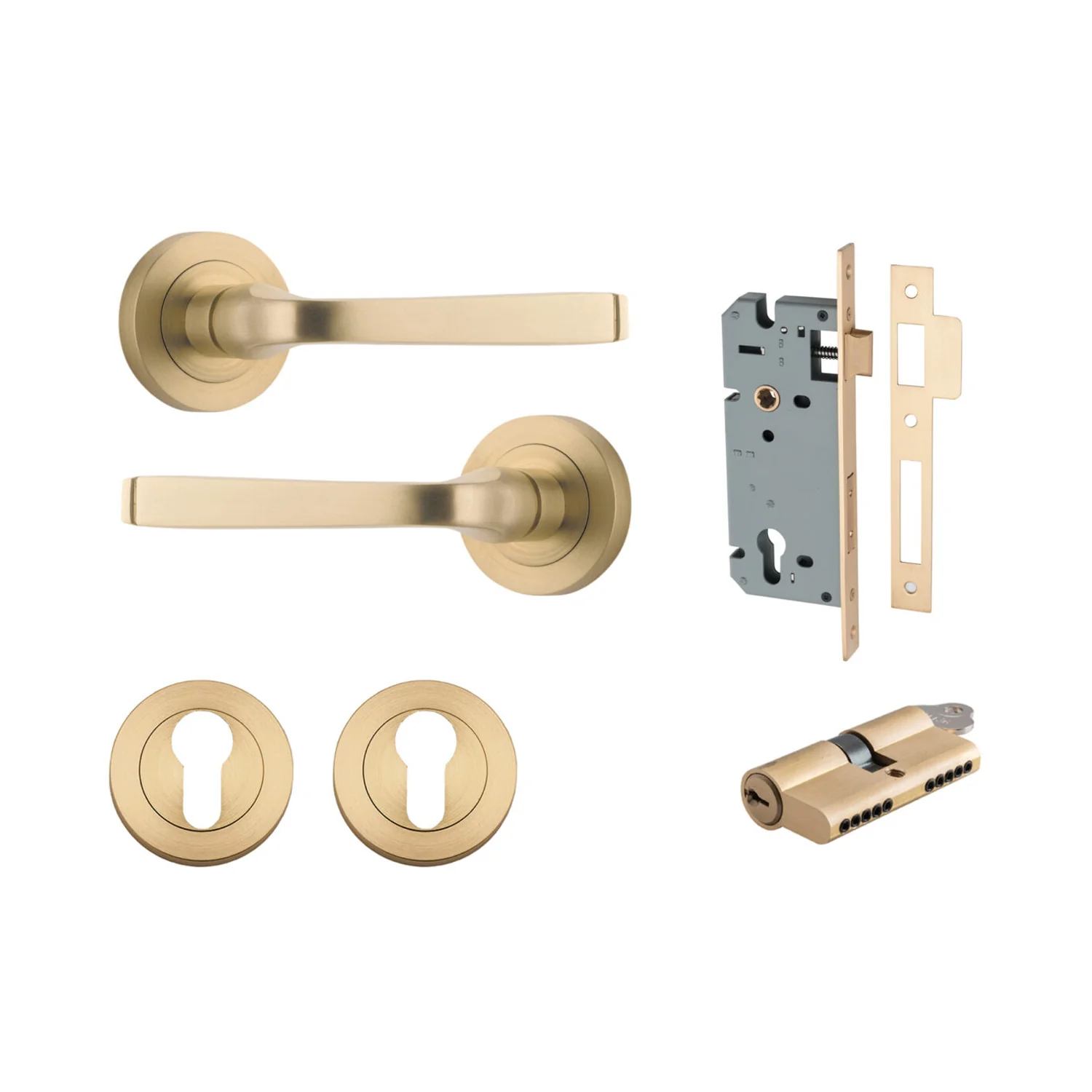

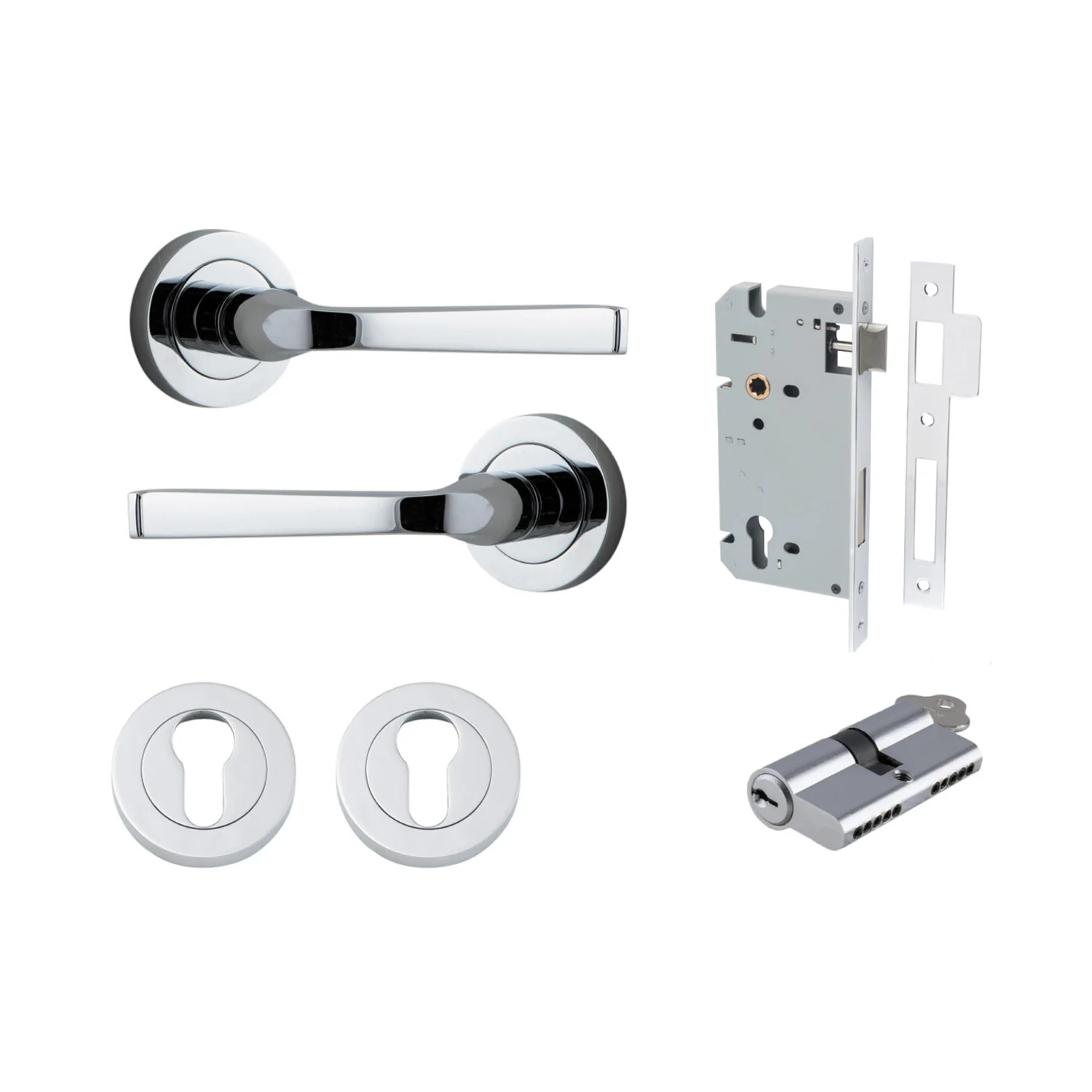

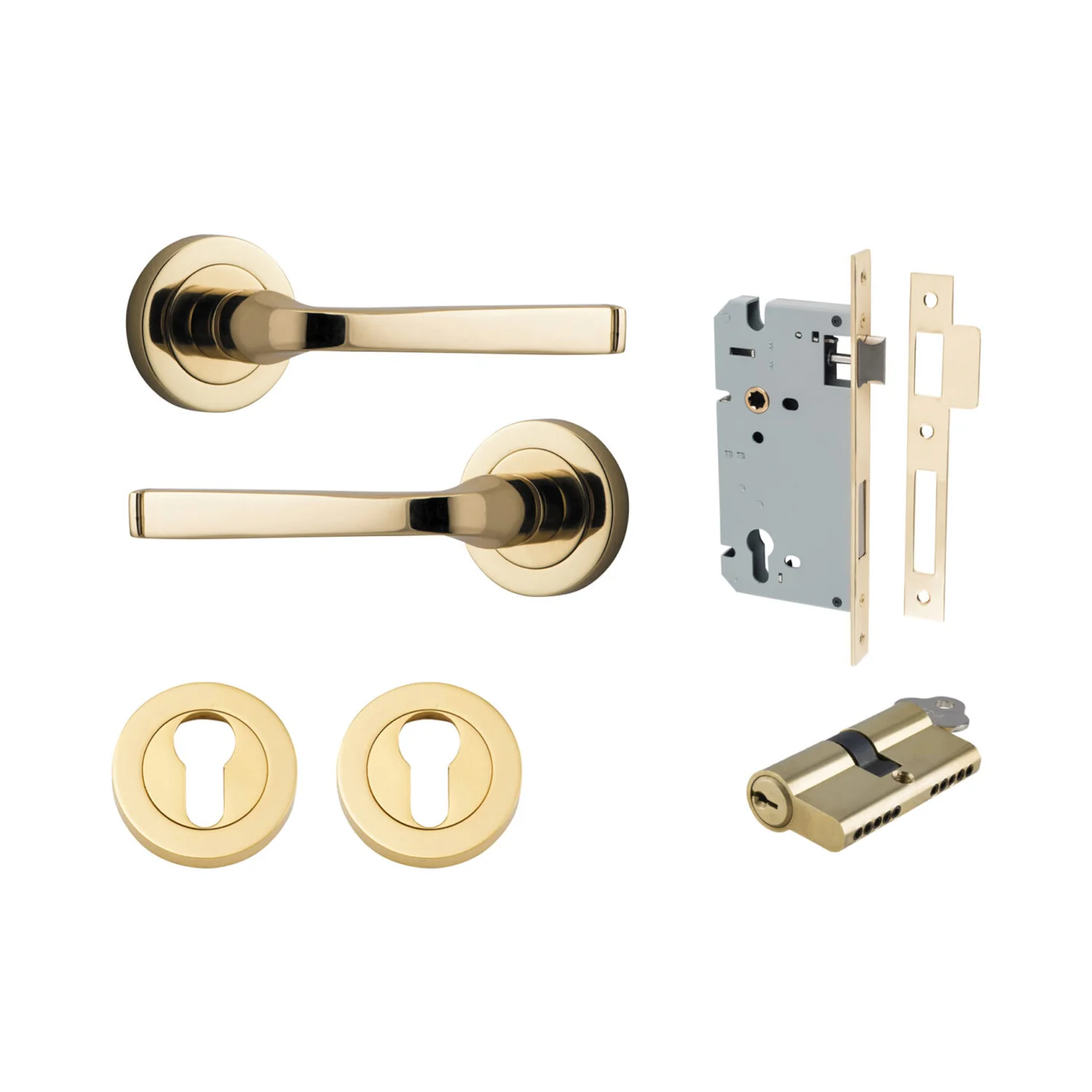

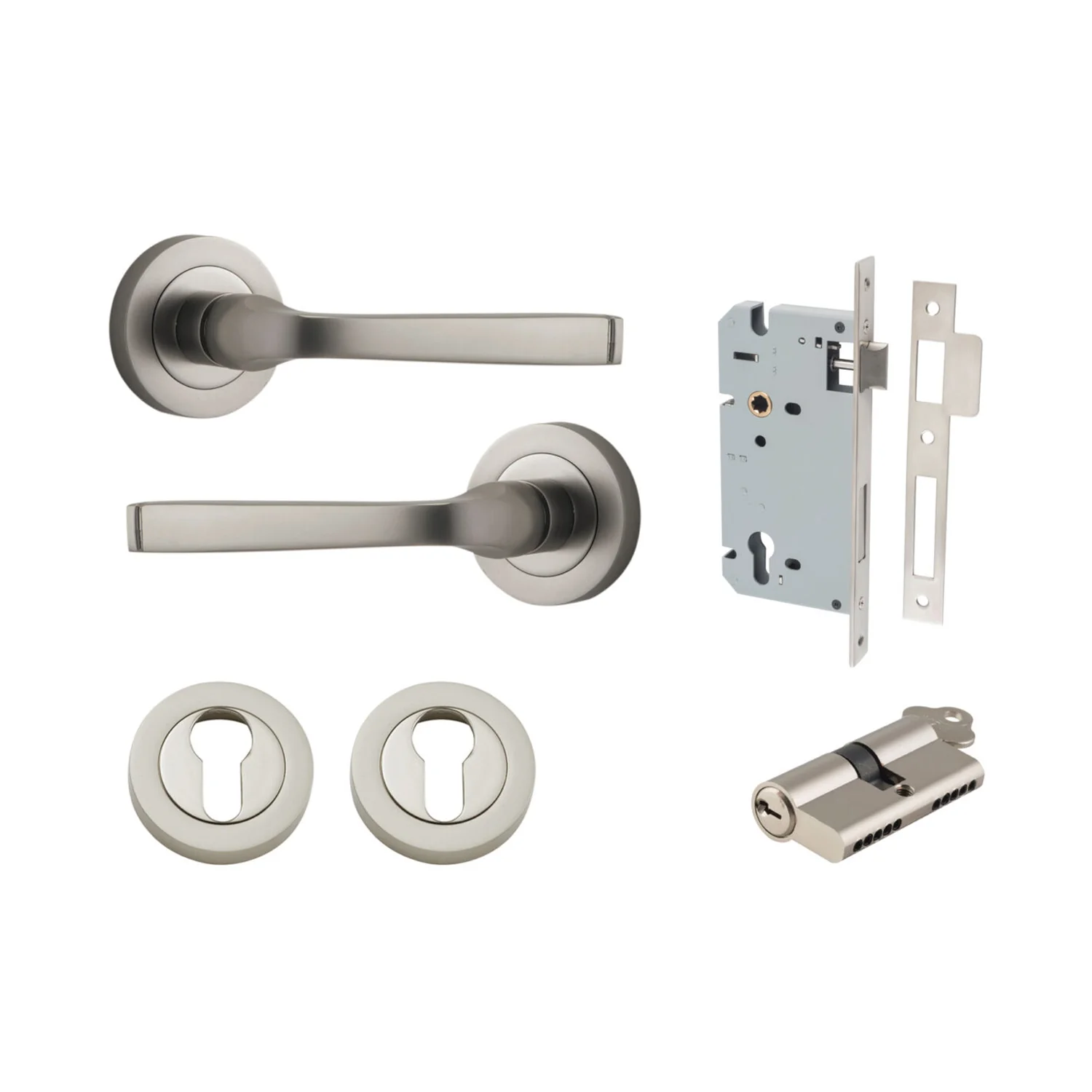

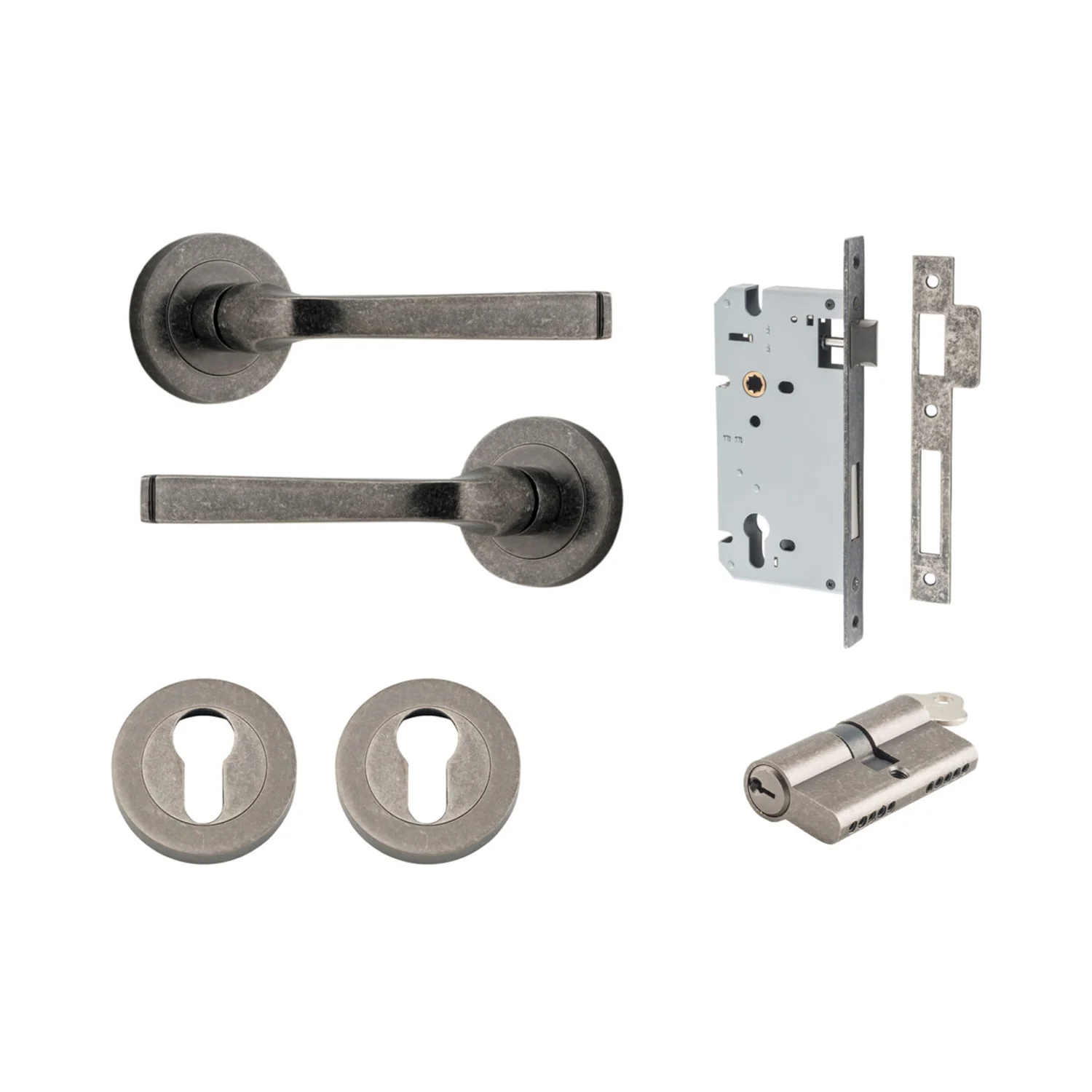

Includes:

• 2 x Levers on Round Roses

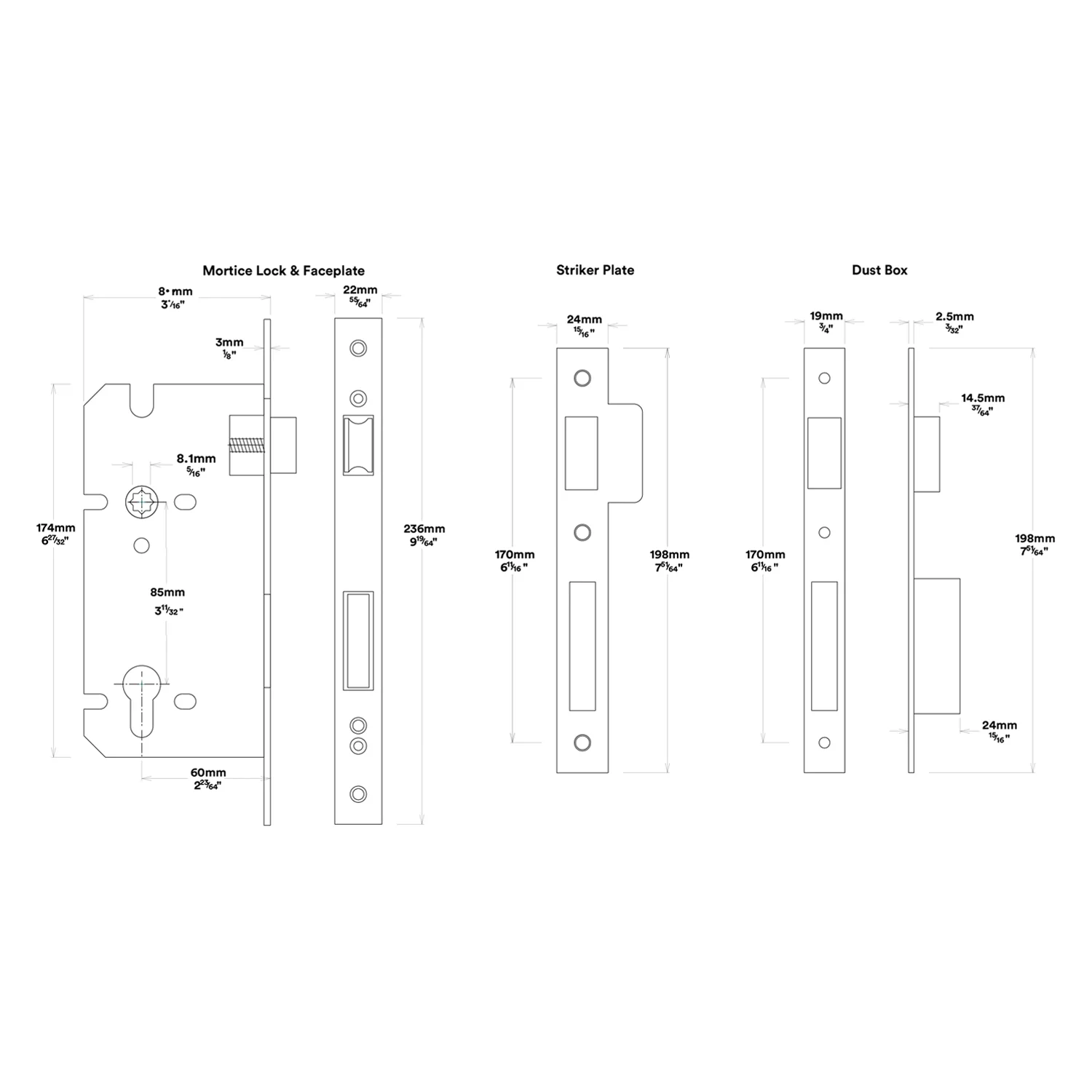

• 1 x Euro Mortice Lock CTC 85mm Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

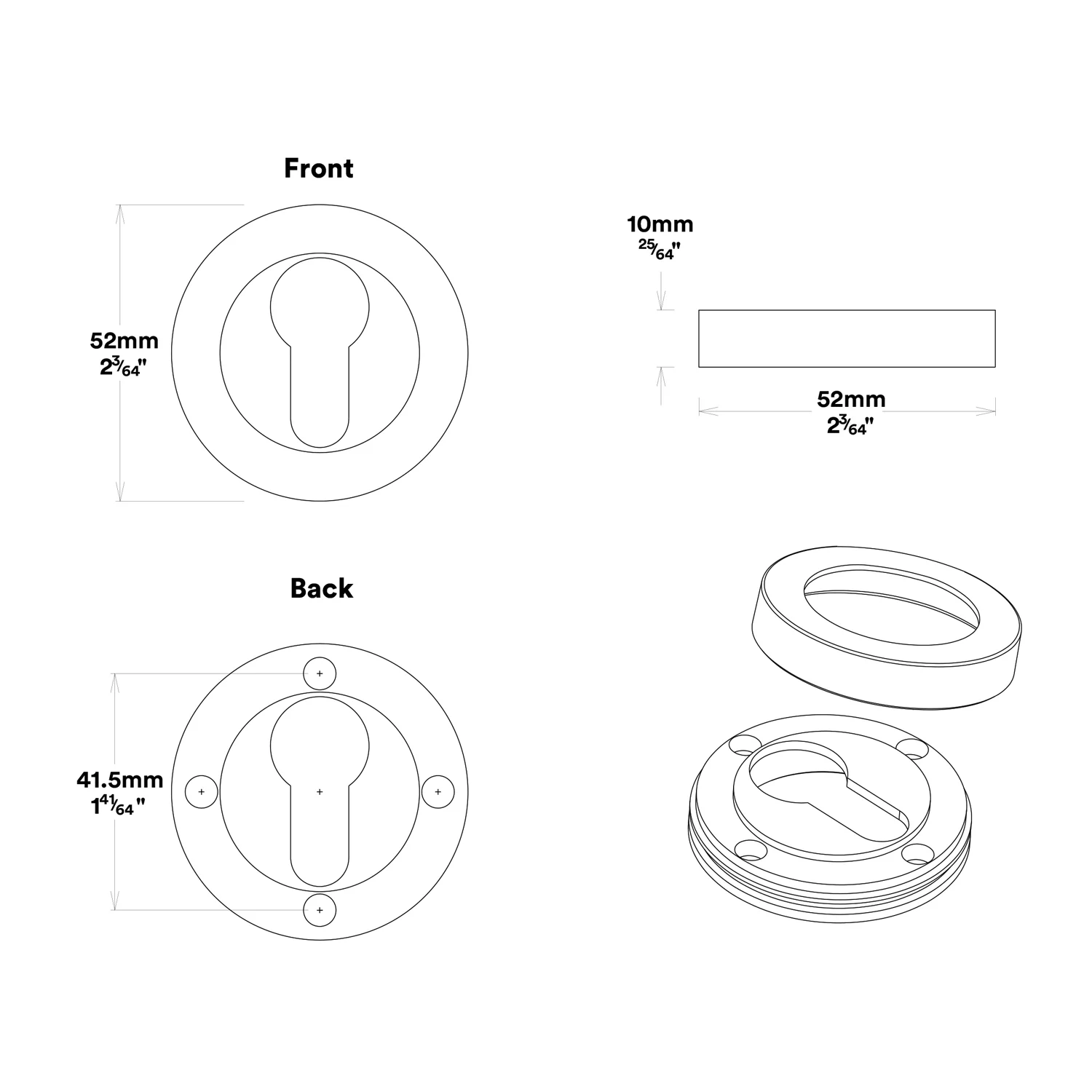

• 2 x Euro Escutcheon Concealed Fix Round

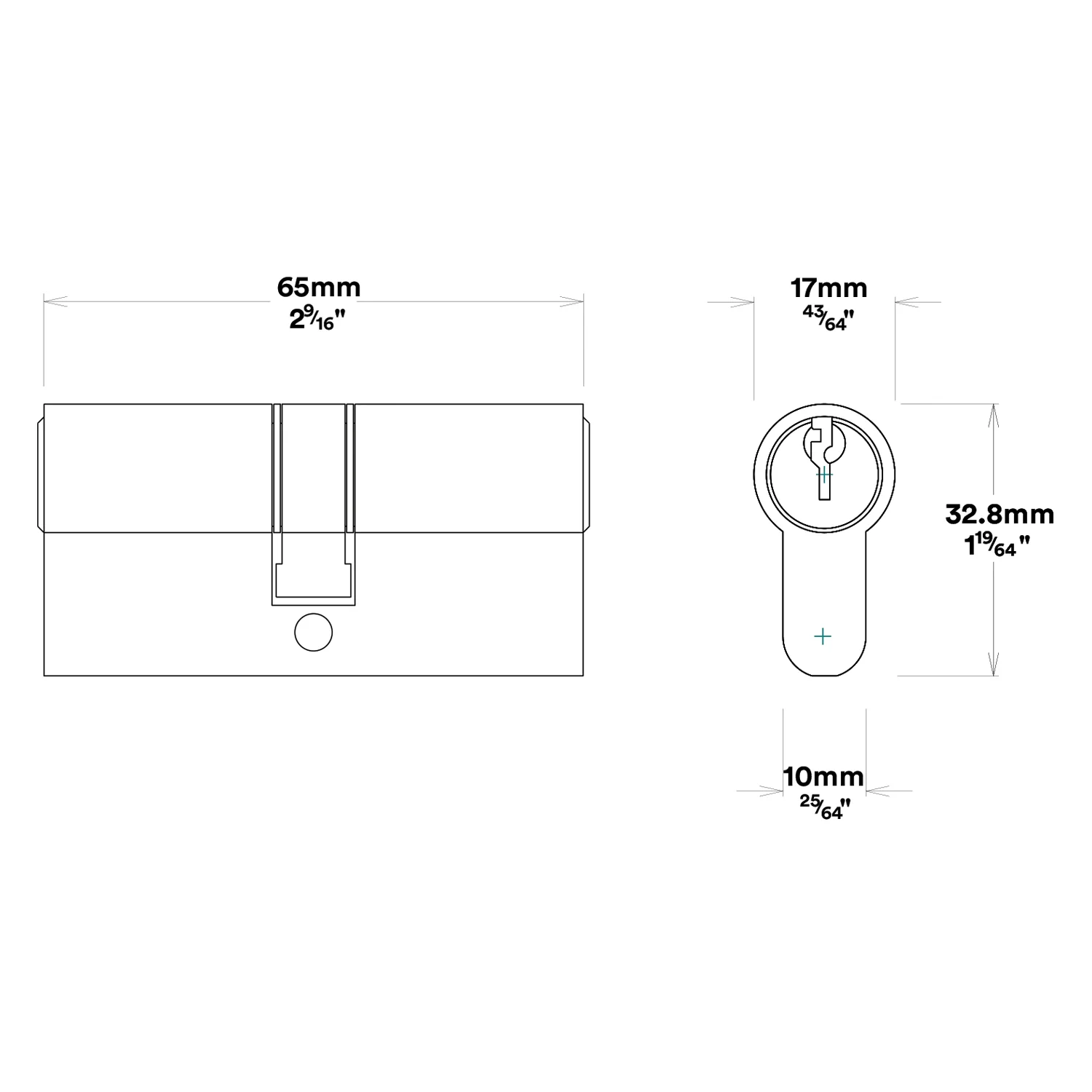

• 1 x Euro Cylinder 5 Pin Dual Function
• 2 x Keys
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 37 x Screws
• 1 x Dust Box
• 1 x Drill Template
• 2 x Instruction Manuals

Features:

• Inspired by traditional French Provincial design, the Annecy pays homage to its namesake, while providing a universally refined choice
• A classic style with a slim rectangular handle and banded detail, the beauty of this lever is not bound by trends and will stand the test of time
• For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms
• Successfully tested to meet highest durability rating (500,000 cycles)

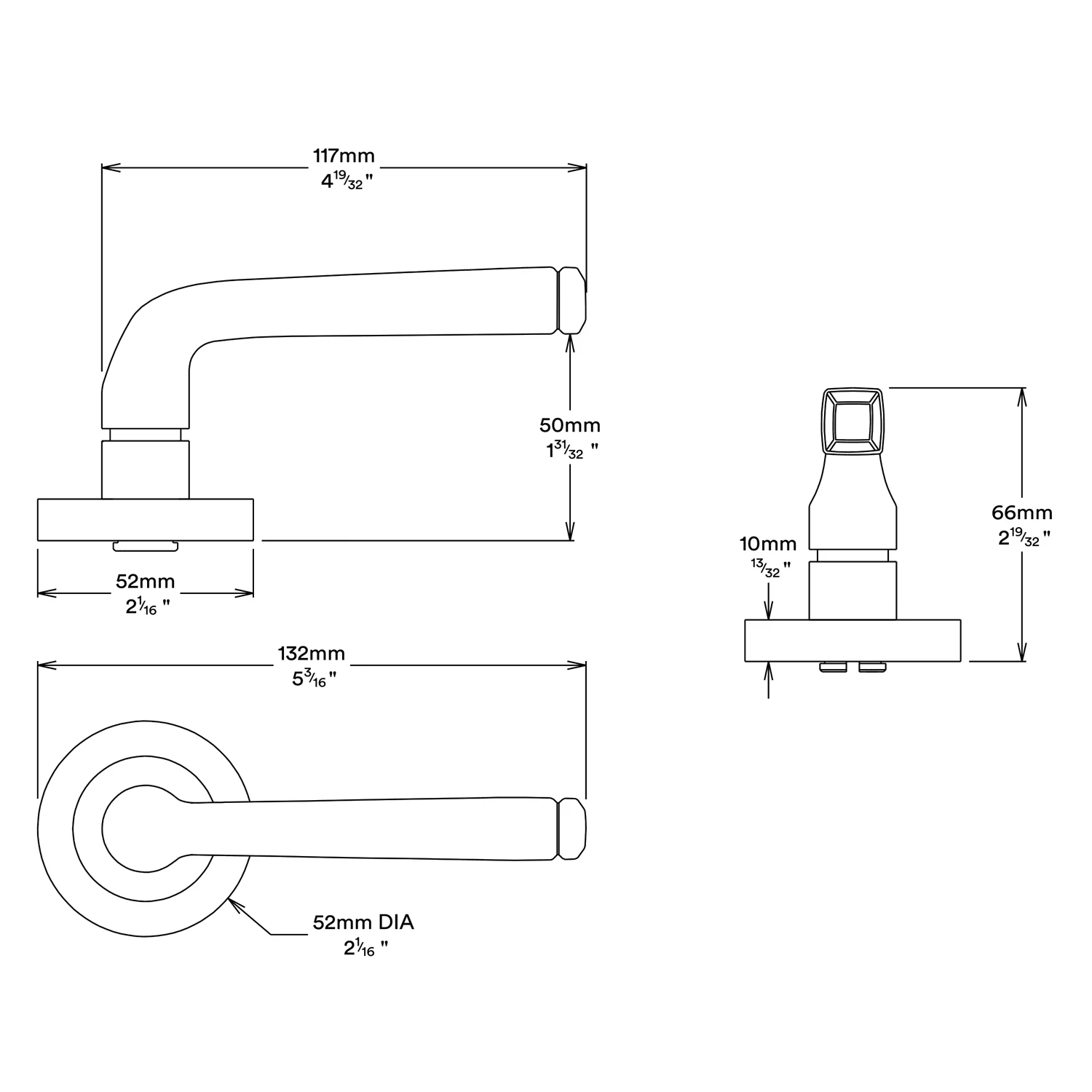

Specifications:

• Backset: 60mm
• Backplate Diameter: 52mm
• Height: 52mm
• Width: 52mm
• Length: 117mm
• Projection: 66mm
• Centre to Centre: 41.5mm
• Function: Key / Key
• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Distressed Nickel
  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Polished Nickel
  • Satin Nickel
  • Signature Brass

Notes:

• Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
