Hafele Salice Silentia 105 Cabinet Hinge Soft Close Pair DP 48/6 329.28.710 Hinge Display Pack 1

Hafele Salice Silentia 105 Degree Cabinet Hinge with Cruciform Mounting Plate

Salice Hinge ideal for office furniture, residential cabinetry, and commercial and institutional case work.

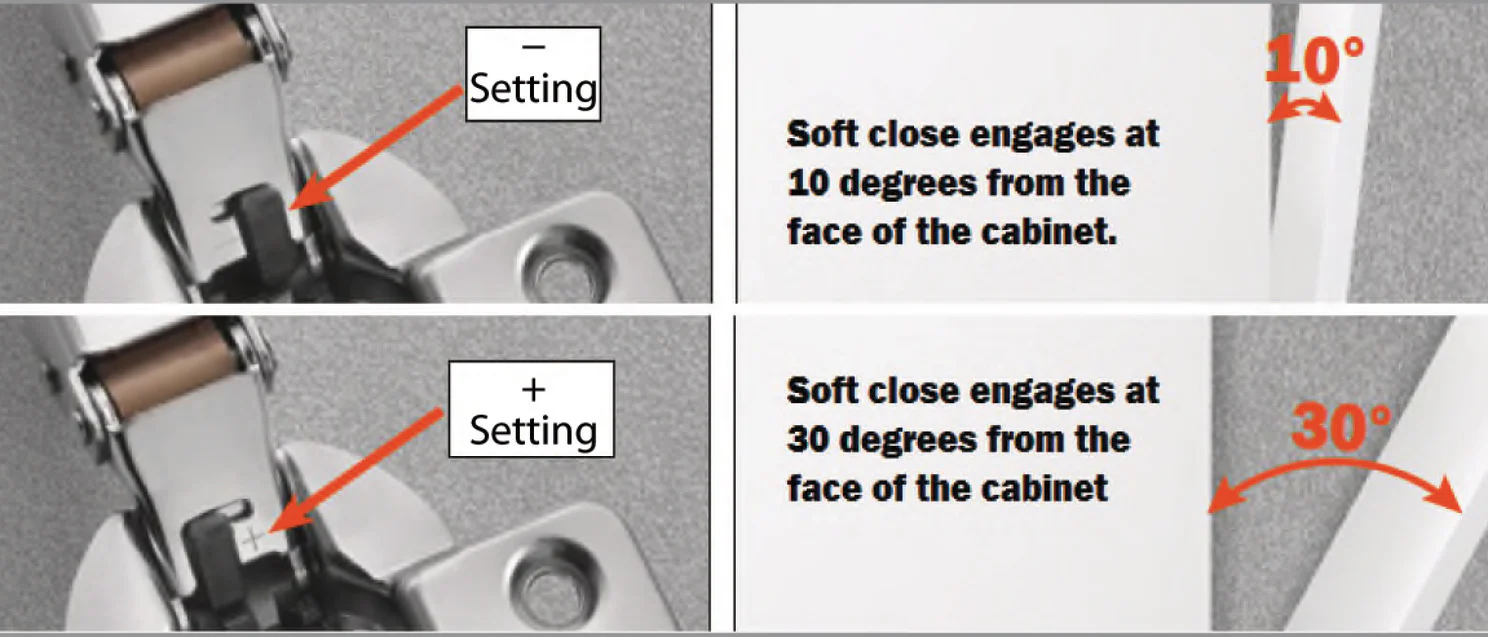

Salice Hinge Function - a hinge with adjustable built-in soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.

Includes:

• 2 x Hafele Salice Silentia 105° Cabinet Hinge 48/6
• 2 x Hafele Cruciform Mounting Plate

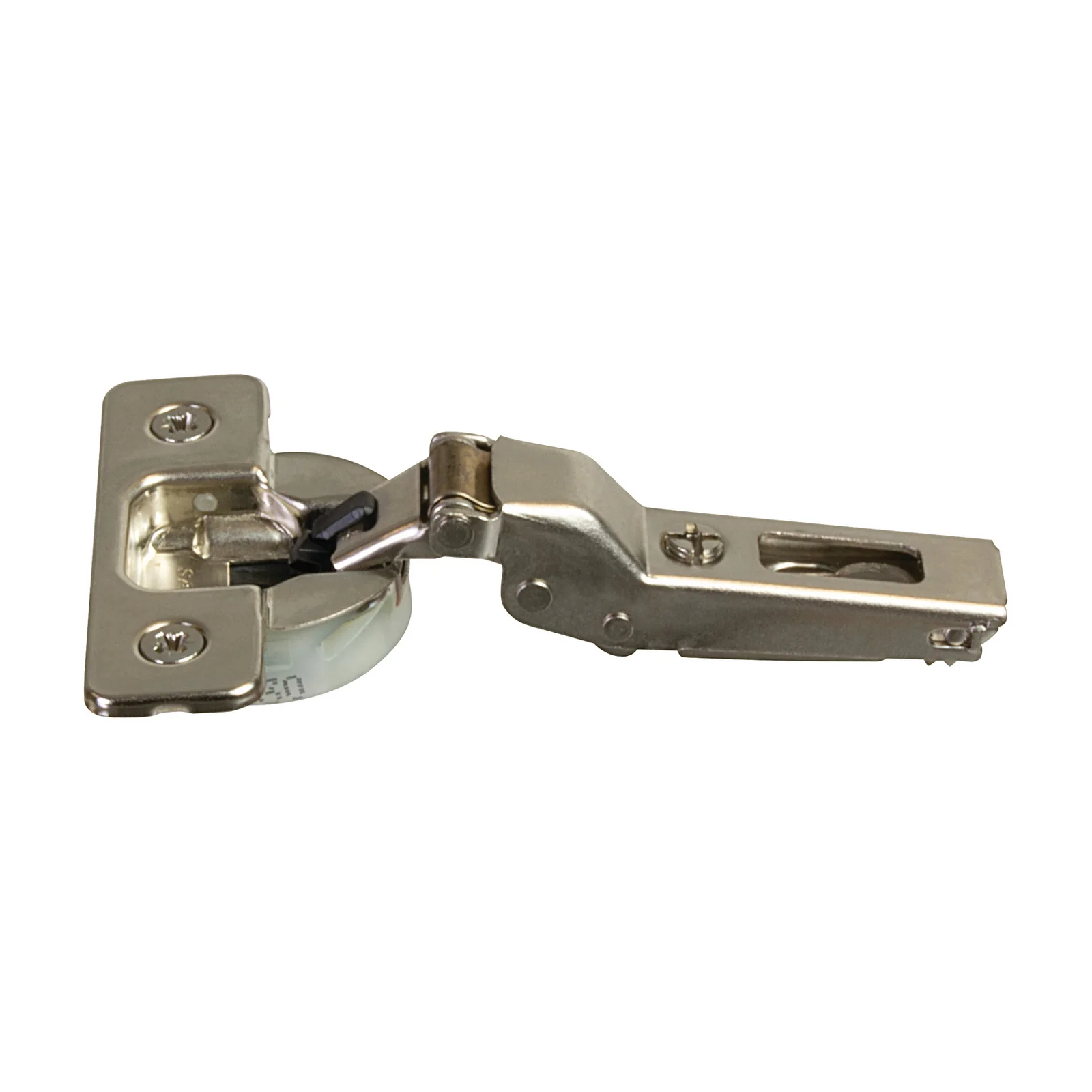

Hafele Salice Silentia 105 Degree Cabinet Hinge
329.28.710

Features:

• Series 100 with integrated silicone oil dampers
• Screw fixing inlcuded

Specifications:

• Material: Steel
• Minimum Door Thickness: 16mm
• Side Adjustment: 1.5mm - 4.5mm
• Height Adjustment:  ±2 mm
• Version: Full Overlay Mounting
• Drilling Pattern: 48/6
• Fixing Door To Carcase: Sliding on with SALICE A mounting plates or quick fixing with SALICE SM mounting plates
• Finish: Nickel Plated

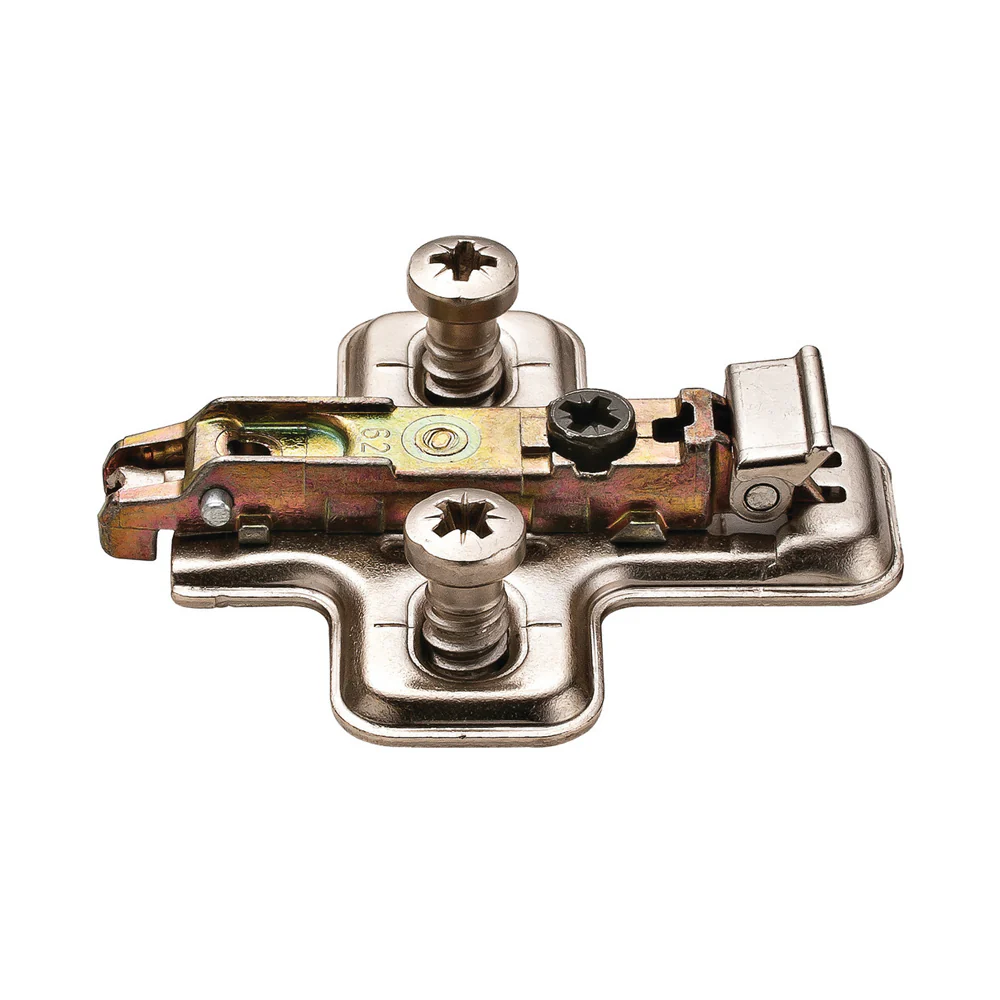

Hafele Cruciform Mounting Plate
329.73.513

Features:

• For Hafele duomatic concealed hinges
• Quick fixing system
• With pre-mounted Euro screws

Specfications:

• Material: Steel
• Drill Hole Diameter: 5mm
• Side Panel Thickness: 19mm
• Drilling Depth: 11mm
• Screw Distance: 32mm
• Edge Distance: 37mm
• Adjustment Facility:
  • Height Adjustment Via slot ±2 mm
  • Depth Adjustment Via eccentric
• Fixing Method: Quick fixing system SM
• Mounting Plate: For screw fixing with pre-mounted Euro screws
• Model: Duomatic
• Finish: Nickel Plated
