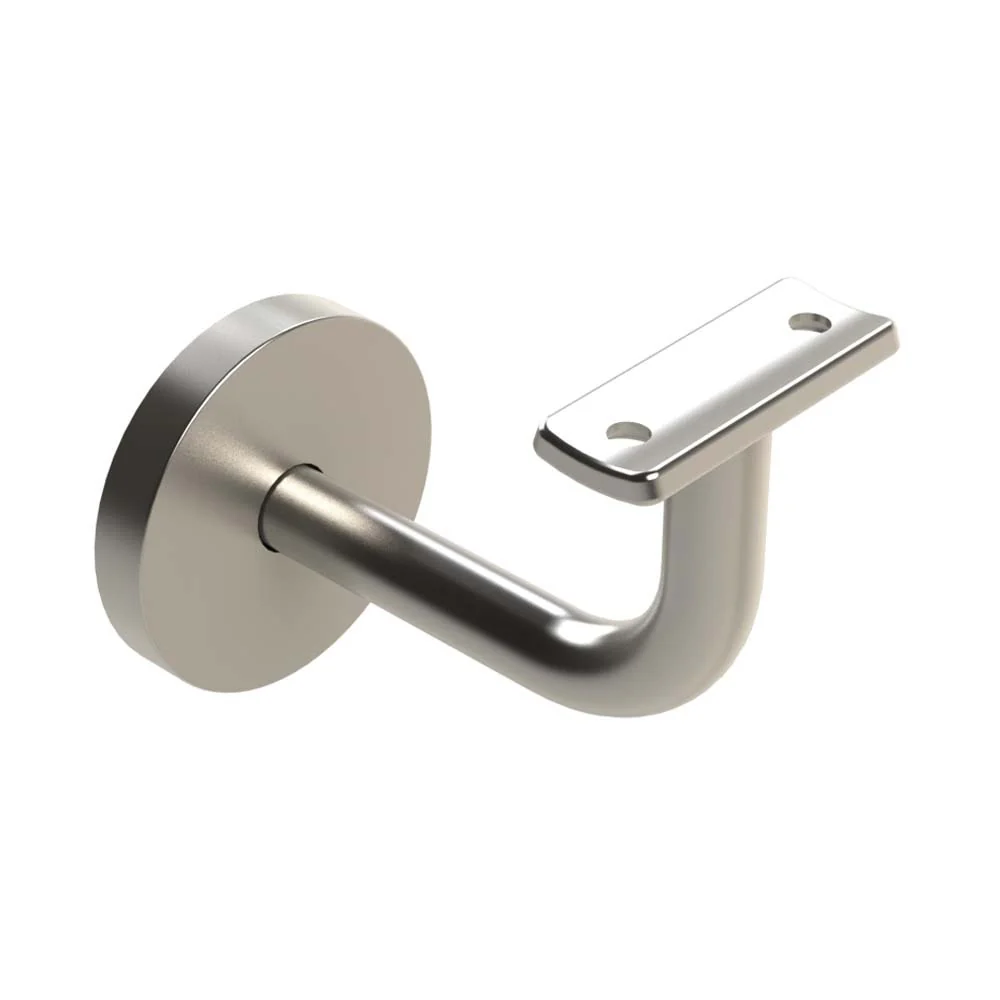

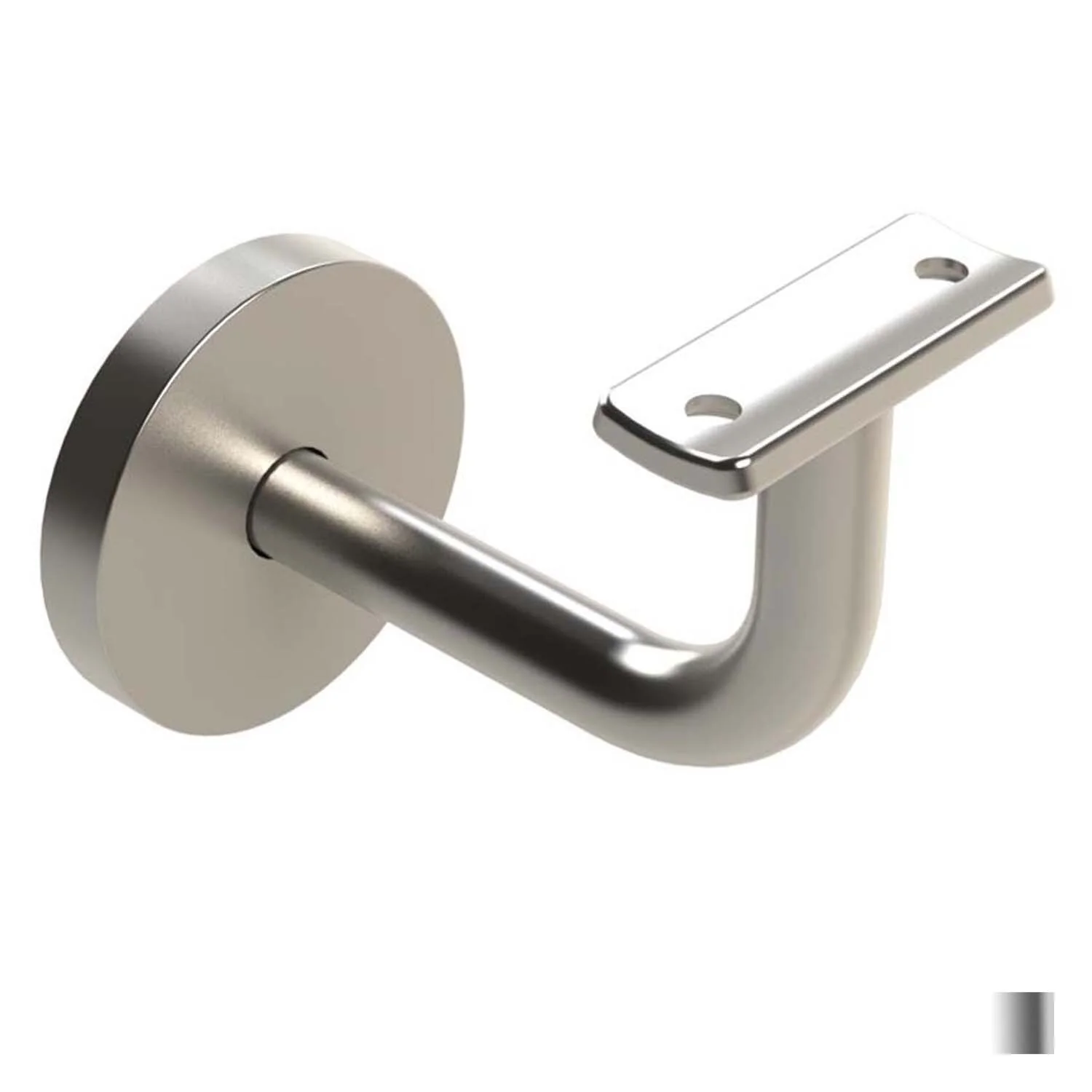

Emro Extended Concealed Bracket Curved Top with Cover Plate

Emro Extended Concealed Bracket With Cover Plate

Handrail Bracket is used to attach the staircase railing to a wall

Handrail Bracket Function - offers support for the thousands of times the railing is grabbed when going up and down the stairs.

Includes:

• 2 x Countersunk Screw - 5mm x 25mm
• 4 x Countersunk Screw - 5mm x 40mm
• 1 x Bracket
• 1 x Cover

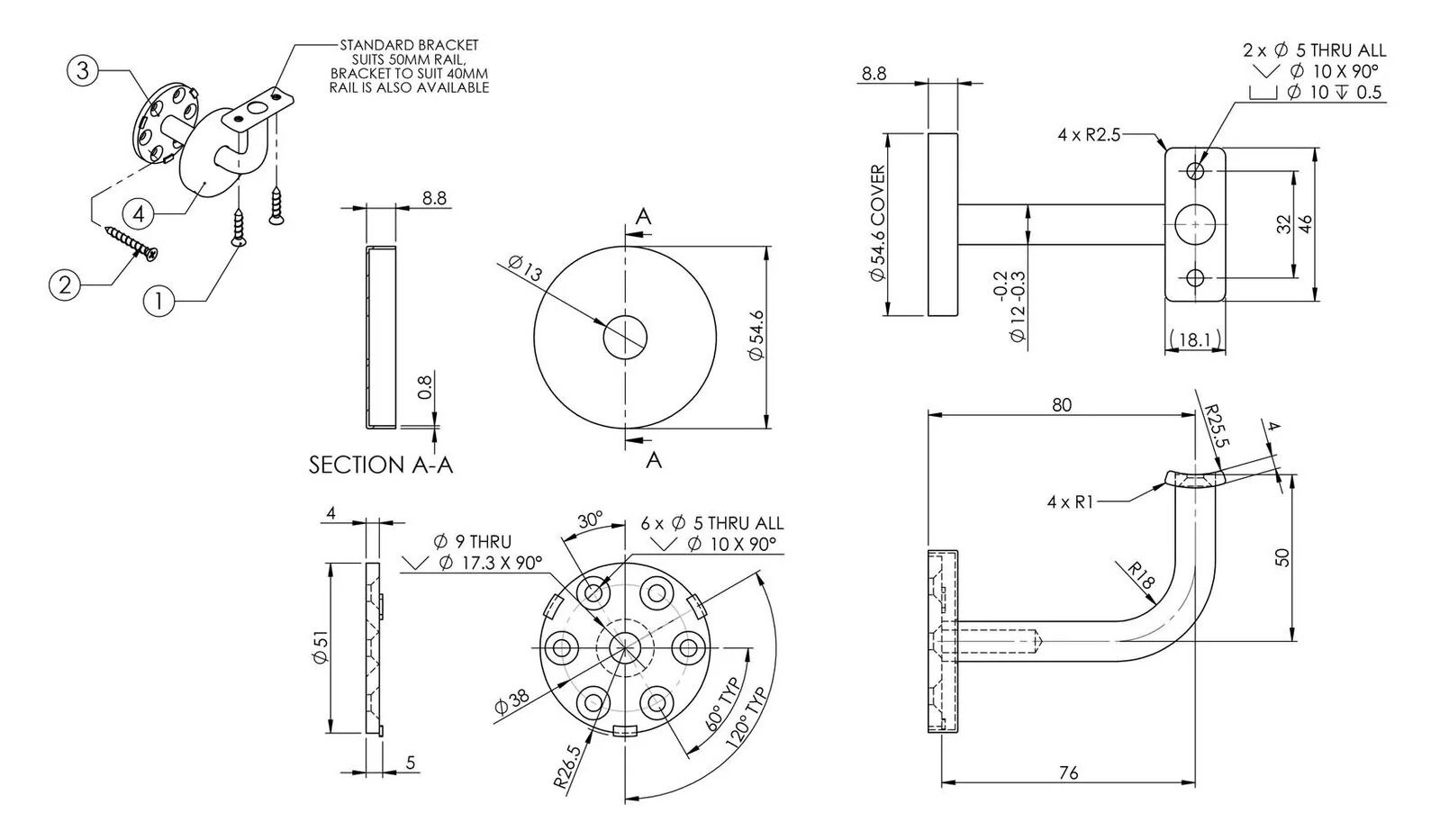

Specifications:

• Material: 304 Stainless Steel
• Extension: 80mm
• Top Bracket Type: Curved
• Top Bracket Length: 46mm
• Top Bracket Centre to Centre: 32mm
• Cover Diameter: 54.6mm
• Available Finish:
  • Brushed Stainless Steel
  • Polished Stainless Steel

Rating/Complicance:

• Extended Concealed Stair Rail Bracket-Complies With Australian Standard AS1428.1-2009
