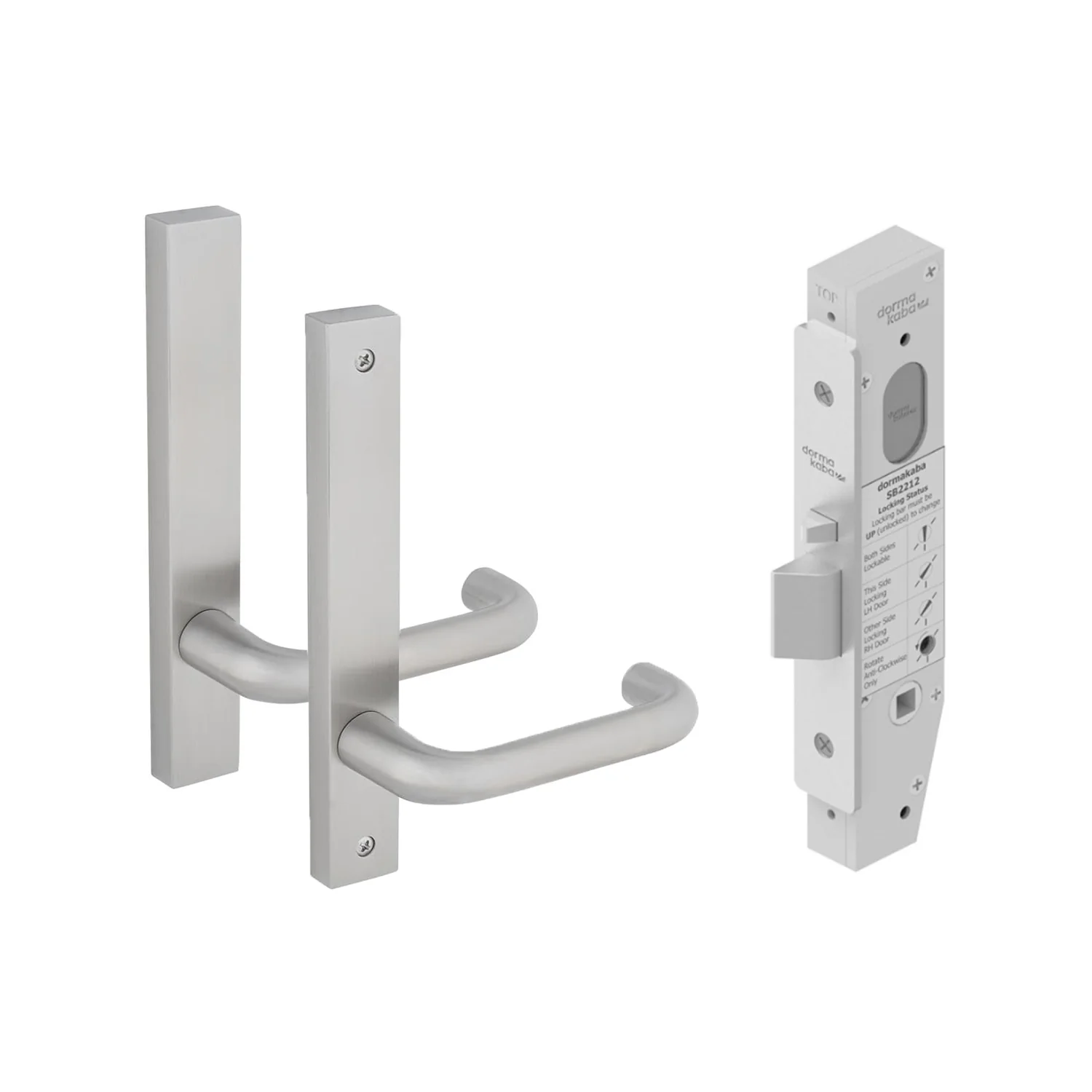

Dormakaba Passage Lockpack SB2212 23mm Backset Satin Stainless Steel SB2212KIT55SSNK

Dormakaba Passage Lockpack
SB2212KIT55SSNK

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Includes:

• 1 x Dormakaba Narrow Style Mortice Lock 23mm Backset Satin Stainless Steel (SB2212SSS)
• 1 x Dormakaba Lever on Narrow Style Square End Plate Visible Fix Satin Stainless Steel (6406/30G)
• 1 x Dormakaba Lever on Narrow Style Square End Plate No Cylinder Hole Concealed 316G SS (6405/30G)



Dormakaba Narrow Style Mortice Lock
SB2212SSS

Features:

• For use on commercial and domestic narrow style timber and metal hinged doors, where self-latching is required.
• Operated by key or handle outside or by turnsnib, key or handle inside
• Cylinder or handle retracts the latch
• 15 mm stainless steel reversible latchbolt
• Stainless steel faceplate and strike
• Easily adapted to most function
• Supplied with turn snib adaptor
• Supplied less cylinder
• Compatible to most restricted keying systems
• Electric strike compatibility

Specifications:

• Door Thickness: 32mm - 50mm
• Backset: 23mm
• Finish: Satin Stainless Steel



Dormakaba Lever on Narrow Style Square End Plate
6406/30G

Features:

• Designed for use with dormakaba DKSB2212SSS series locks
• BCA AS1428.1 -2009 compliant leversets
• Narrow interior square end plate
• Plain plate with Noosa 30 series lever
• Disabled access AS1428.1 compliant lever
• Manufactured using 316 corrosion resistant solid stainless steel
• Visible fixing
• Plates are designed to fit back to back

Specifications:

• Length: 185mm
• Width: 26mm
• Depth: 12.7mm
• Door Thickness: 32mm - 50mm
• Screw Fxing Centres:160mm
• Internal / External: Internal
• Plate Type: Narrow Style Square End
• Material: 316 Stainless Steel
• Plate Has A Lever: Yes
• Finish: Satin Stainless Steel



Dormakaba Lever on Narrow Style Square End Plate No Cylinder Hole Concealed Fix
6405/30G

Features:

• Designed for use with dormakaba DKSB2212SSS series locks.
• BCA AS1428.1 -2009 compliant leversets
• Narrow exterior square end plate
• Plain plate with Noosa 30 series lever
• Disabled access AS1428.1 compliant lever
• Manufactured using 316 corrosion resistant solid stainless steel
• Concealed fixing
• Plates are designed to fit back to back
• External plates supplied with fixing screws

Specifications:

• Length: 185mm
• Width: 26mm
• Depth: 12.7mm
• Door Thickness: 32mm - 50mm
• Screw Fixing Centres: 160mm
• Internal / External: External
• Material: 316 Stainless Steel
• Plate Has A Lever: Yes
• Plate Has Oval Cylinder Hole: No
• Finish: Satin Stainless Steel
