Buster and Punch Escutcheon Plate Euro Profile - Available in Various Finishes
Buster and Punch Escutcheon Plate Euro Profile
Escutcheon is used when a cylinder needs to be trimmed, this tool is utilized. A matching accessory that goes nicely with all-round rose levers and entry handles where they're suited.
Escutcheon Function - An escutcheon is a plate that surrounds a keyhole or a door handle mechanism. It serves both a decorative and protective function, covering the hole where the key is inserted.
Features:
- Works great on all internal doors
- Can be teamed up with our matching door lever handles
- Center-to-center fitting size (screw distance) of 41.5 mm.

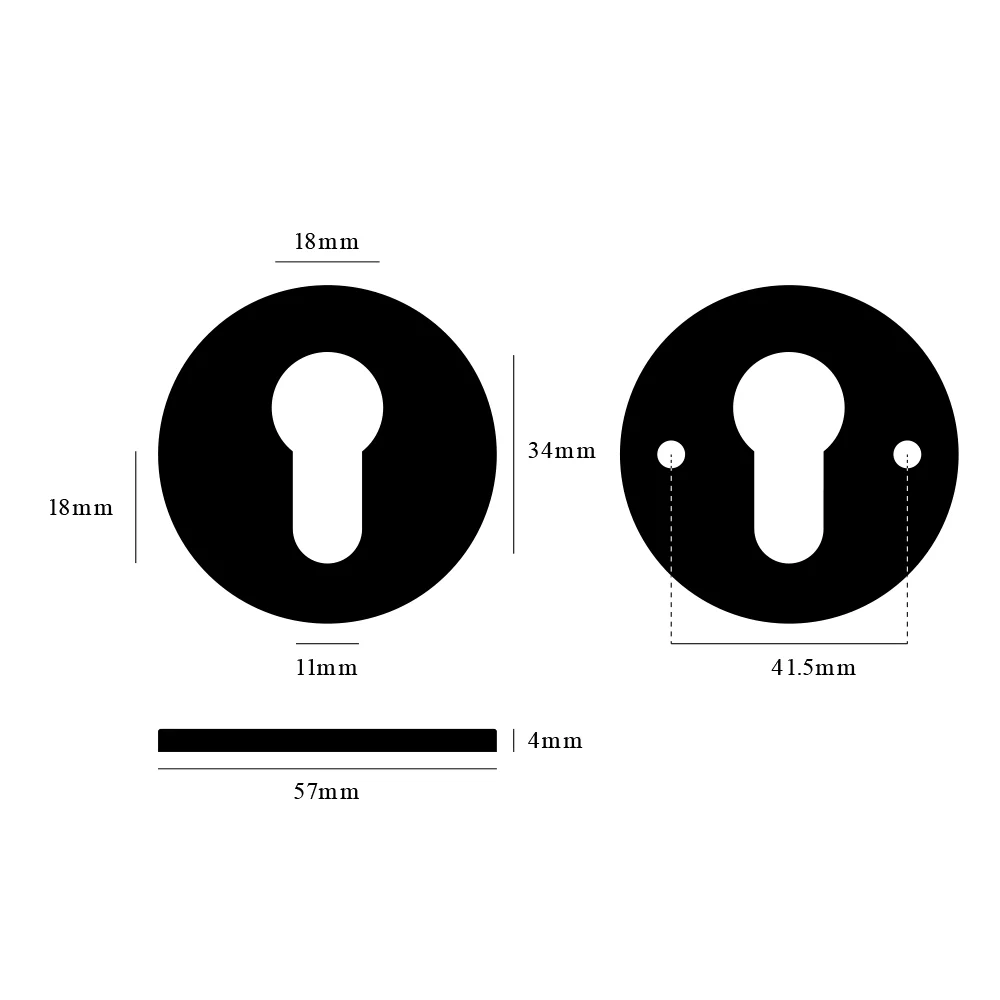

Specifications:
- Profile: Euro
- Material: Solid Metal
- Door Thickness: 35mm to 54mm
- Diameter: 57mm
- Projection: 4mm
- Centre to Centre: 41.5mm
- Euro Hole Length: 22mm
- Euro Hole Width: 8mm
- Fixing: 41.5mm (screw fixing included)
-
Available Finish:
- Black
- Brass
- Gunmetal
- Steel
- Welders Black
Note:
- This number indicates the cc millimeter / inches measurement for the screw holes that are used to fit the round plate to the door. 41.5mm / 1.63” is standard for Australia and North America.
Original: $45.89
-70%$45.89
$13.77
Description
Buster and Punch Escutcheon Plate Euro Profile
Escutcheon is used when a cylinder needs to be trimmed, this tool is utilized. A matching accessory that goes nicely with all-round rose levers and entry handles where they're suited.
Escutcheon Function - An escutcheon is a plate that surrounds a keyhole or a door handle mechanism. It serves both a decorative and protective function, covering the hole where the key is inserted.
Features:
- Works great on all internal doors
- Can be teamed up with our matching door lever handles
- Center-to-center fitting size (screw distance) of 41.5 mm.
Specifications:
- Profile: Euro
- Material: Solid Metal
- Door Thickness: 35mm to 54mm
- Diameter: 57mm
- Projection: 4mm
- Centre to Centre: 41.5mm
- Euro Hole Length: 22mm
- Euro Hole Width: 8mm
- Fixing: 41.5mm (screw fixing included)
-
Available Finish:
- Black
- Brass
- Gunmetal
- Steel
- Welders Black
Note:
- This number indicates the cc millimeter / inches measurement for the screw holes that are used to fit the round plate to the door. 41.5mm / 1.63” is standard for Australia and North America.
