Brava Metro Passage Knob Set Fire Rated 60mm Satin Stainless Steel EA3082SS60

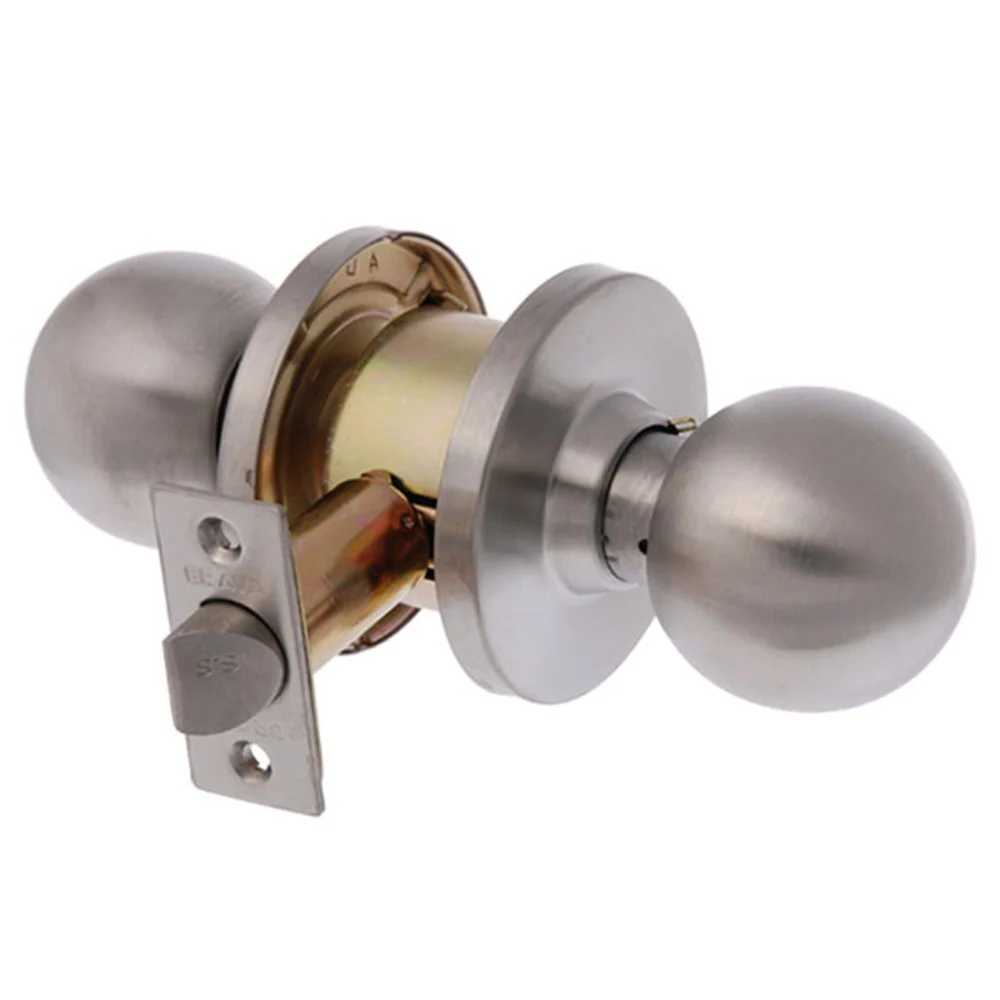

Brava Metro Passage Knob Set
EA3082SS60

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

Features:

• Cylindrical fixing
• Boxed and colour coded

Specifications:

• Door Thickness: 35-45mm
• Backset: 60mm
• Max. Knob Projection: 69.5mm (distance may not include turnsnib)
• Strike: 70mm x 27mm x 1.2mm
• Latch: 60mm backset
• Latch Face Plate: 57mm x 25mm
• Door Handing: Non-handed knobs
• Rose: 75mm
• Finish: Satin Stainless Steel

Compliance:

• Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
