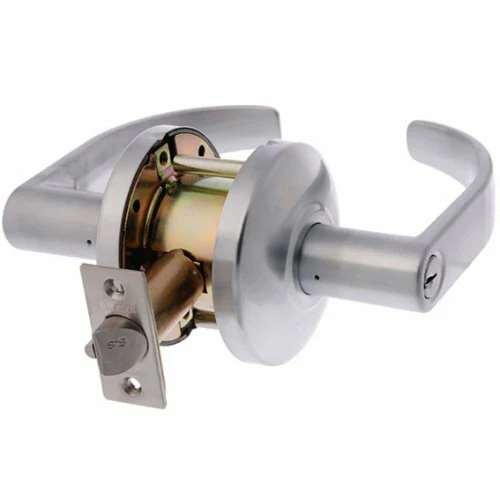

Brava Metro Entrance Lever Set EV8000SC70 Fire Rated 70mm SC Keyed To Differ

Brava Metro Entrance Lever Set Keyed to Differ
EV8000SC70

BRAVA Metro EV8000 series commercial grade entrance leverset with external clutching lever.

Entrance function:

• Outside key unlocks outside clutching lever.
• Inside lever free at all times,push button locks outside lever.

Additional info:

• Clutching lever feature to prevent forcing.
• Screw post to prevent lock rotation are removable.
• Carolina lever design.
• Cylindrical fixing.
• Silca LW5 profile 6 pin cylinder.
• Incorporates the popular PD 8221 barrel.
• Compatible with most restricted keying systems.
• Boxed and colour coded.
• Keyed to differ.
• 2 keys supplied.
• Fire rated.
• Finished in satin chrome.

Features:

• Door thickness: 35-51mm
• Backset: 70mm
• Max. knob projection: 72.5mm (distance may not include turnsnib)
• Strike: 28mm x 70mm x 2mm
• Latch: 70mm (12.7mm throw)
• Latch face plate: 57mm x 25mm
• Cylinder: LW5 profile
• Door handing: Non-handed levers
• Rose: 85mm

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Please note if buying more than 1 lock:
This listing is for 'keyed to differ' (KD) locks, for example:
- if you buy 5 locks, all 5 locks will use a different key

If you need 'keyed alike' (KA) locks, please search for our other listing with 'KA' or 'keyed alike' in the title.
