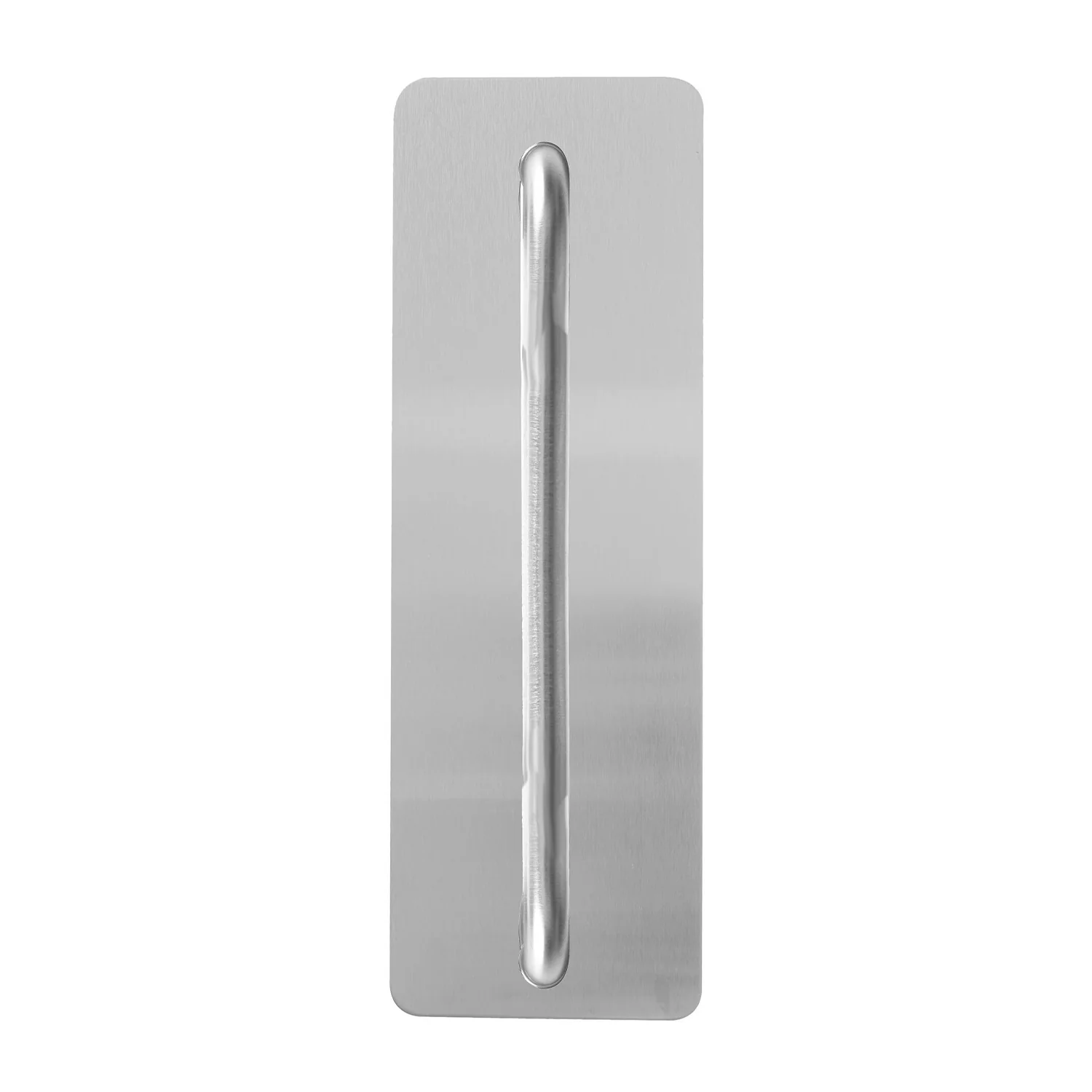

Lockwood 214 Exterior Plate & P4 Pull Handle 21424NN/P4SS

Lockwood 214 Series 10mm Radius Corner Push and Pull Plates

Suitable for use in public, commercial, industrial and institutional buildings, where there is a need for high grade and durable fittings. The Push and Pull range of door furniture plates offers a selection of functions with engraving available to suit most requirements.

The 214 Series Door Furniture is 300 x 100 x 2mm thick stainless steel or brass plates with 10mm radius corners. Concealed fixed plates have studs with internal threads located in each corner, visible plates have corresponding countersunk holes and are fixed back to back through the door.

Application
Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks

Features

• External plate with P4 pull handle
• Concealed fixing with screws
• No Cylinder or turn snib
• Non-handed
• Fire rated up to 2 hours
• Supplied in trade pack

Plate Dimensions
Plate dimensions: 300mm x 100mm x 2mm
Cylinder pitch: 64mm

Materials
Aluminium / Brass / Stainless Steel

Door Thickness
35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.
When using flush pulls back to back the minimum door thickness is 40mm.

Finish
Satin Stainless Steel SS
