Dictator Direkt Gate and Door Closer
1018-0127

Gate and Door Closer is commonly used in commercial buildings, public facilities, and residential properties for secure and efficient door operation.

Gate and Door Closer Function - is designed to automatically ensures secure and controlled closing of doors, enhancing safety and convenience.

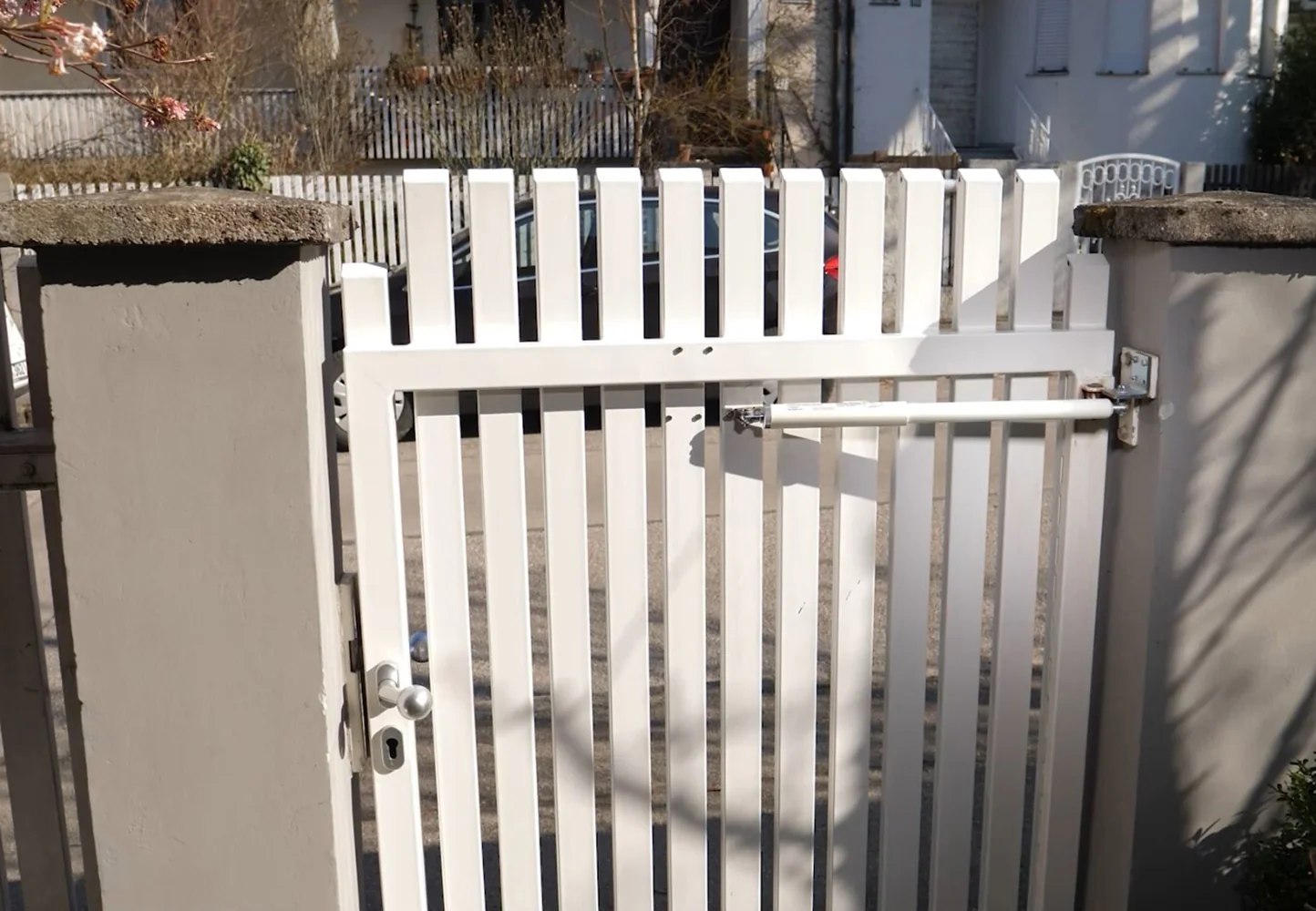

The gate closer DIREKT operates directly on the gate/door without the help of any lever.
It is fixed with one end to the gate post or the door frame and with the other to the door or gate itself.
It operates similarly to a gas spring.
When the gate is open, the piston rod of the gate closer is compressed and the pressure of the gas inside the gate closer acts on the piston.
The piston rod extends and closes the door/gate.
The cylinder of the gate closer contains hydraulic oil, which results in a controlled closing speed that is slowed down.
By using nitrogen instead of a helical spring, much higher closing forces can be achieved.
Thus the gate closer DIREKT always closes the door/gate reliably despite its small diameter.

Features:

Versatile use on gate leaves up to 1200 mm width and 80 kg weight
Perfect for retrofitting thanks to its multiple mounting accessories that allow many different installation possibilities
Safe closing with continuous damping and no final latching action ensures protection of people
Continuously adjustable closing speed

Specifications:

Closing Speed: Steplessly adjustable
Closing Force: Depending on model/installation type approx. 10 - 60Nm
Material Piston Rod: Chrome Plated Steel, AISI 304, AISI 316L
Material Cylinder: Zinc plated steel coated, AISI 304, 316L
Material Protection Tube: Aluminium coated, AISI 304, AISI 316L
Opening Angle: Max. 110 Degrees
Weight Per Door Leaf: Up to about 80 kg
Size Per Door Leaf: Max. height approx. 2500, width approx. 750 - 1200 mm
Finish: Dark Grey

Dictator

Dictator Direkt Gate and Door Closer 150mm Stroke up to 80Kg or 1.2m Wide 400N Dark Grey 1018-0127
